Product Info
- Manufacturer:Eaton
- Sub-Category:Pilot Device/Push Button
Description
10250T51P

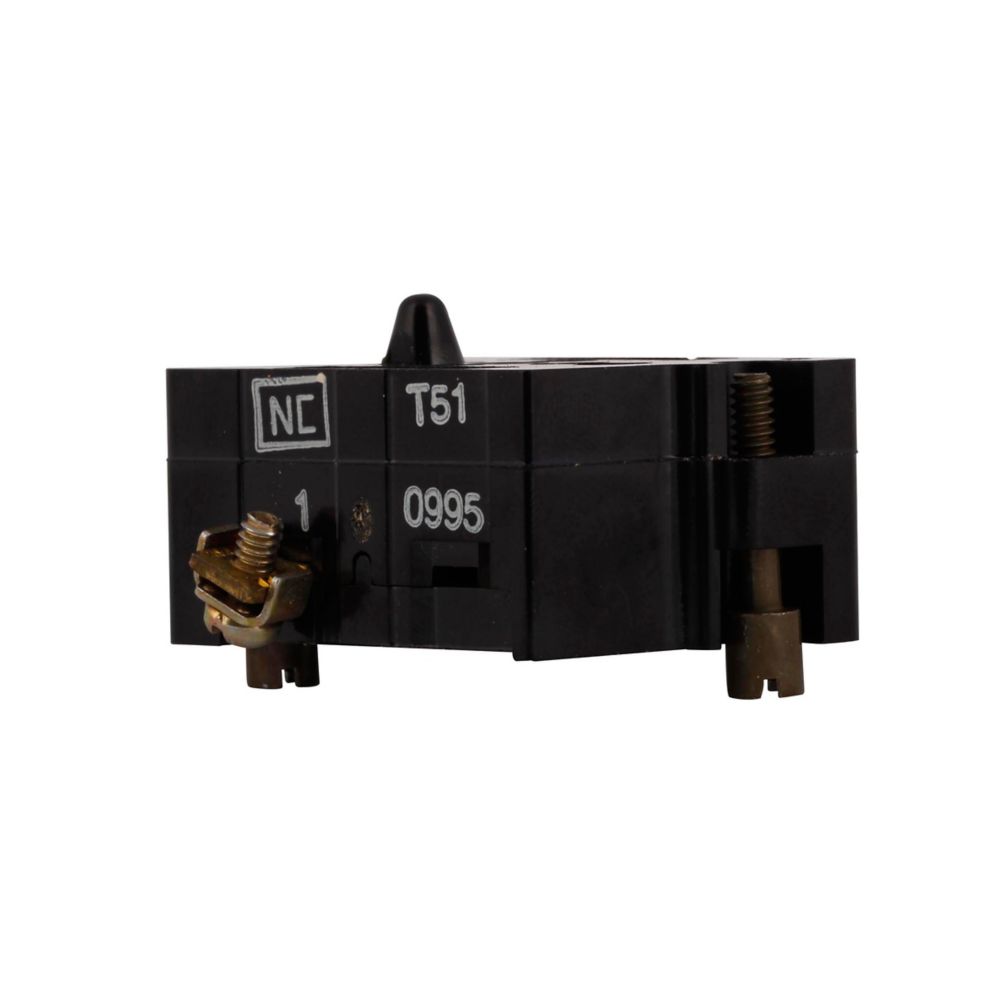

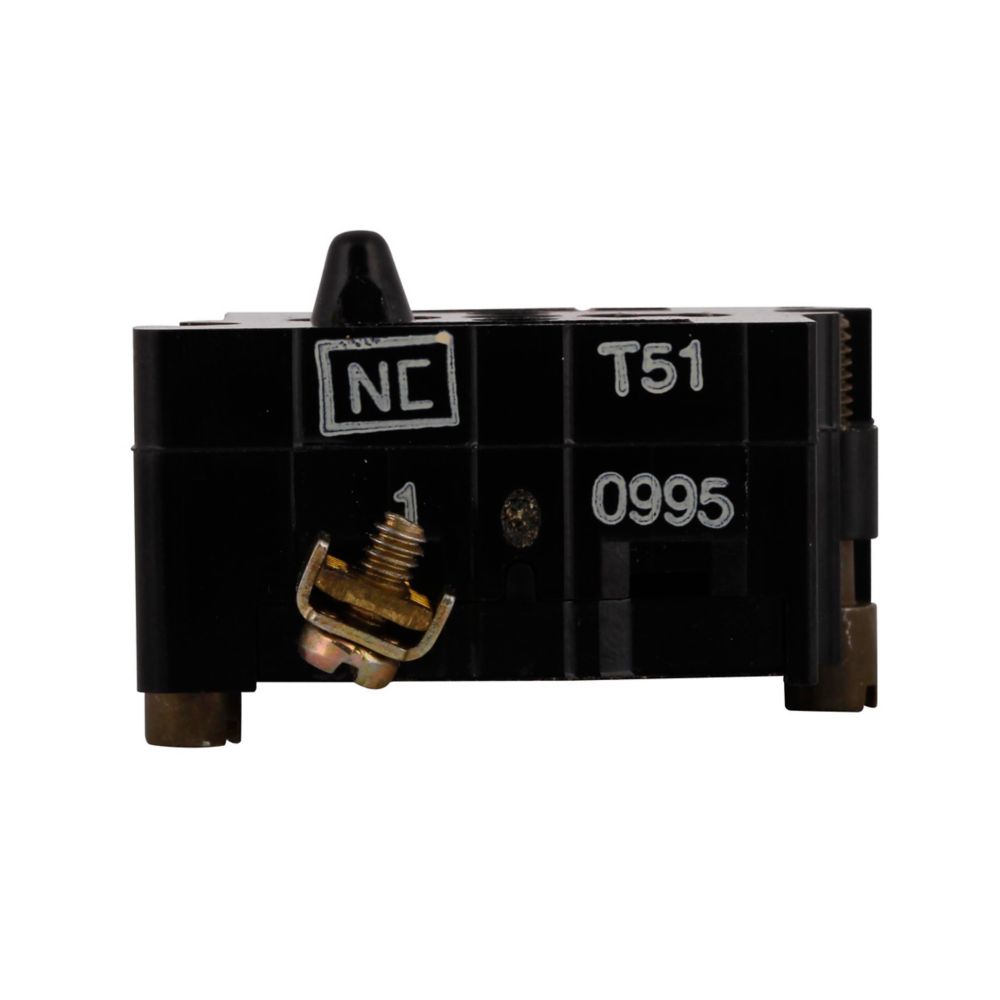

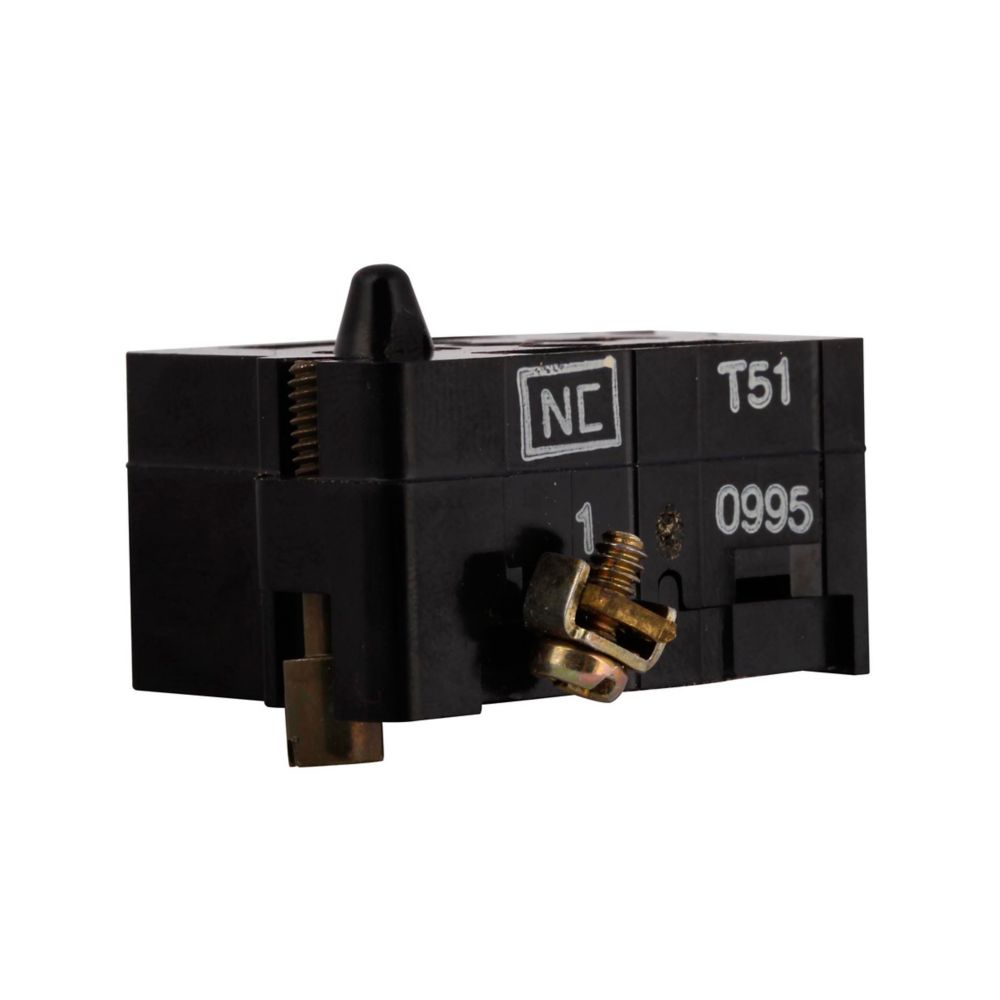

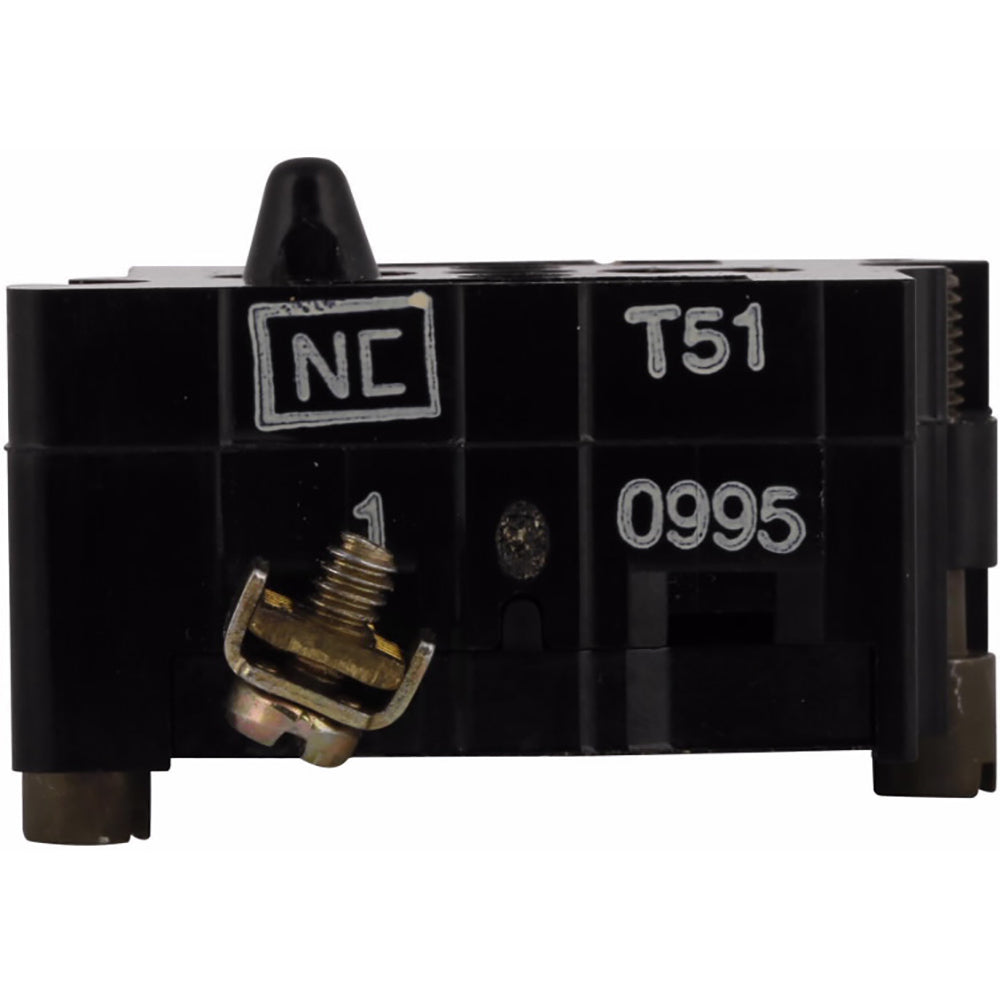

10250T51P is a heavy duty pushbutton contact block from Eaton's 10250T series featuring a 1NC contact configuration and pressure terminals.10250T51P offers reliable switching with a 10 amp rating at 600 VAC and 5 amp at 250 VDC, designed for 30.5 mm mounting. It includes silver contacts in a robust zinc die cast housing with chrome plating and a press-to-test feature, suitable for industrial control applications. Certified by CSA and CE marked, it ensures compliance with safety standards.
- Series: 10250T
- Contact Configuration: 1 Normally Closed (1NC)
- Current Rating: 10 A at 600 VAC, 5 A at 250 VDC
- Contact Material: Silver
- Mounting Size: 30.5 mm
- Terminal Type: Pressure terminals
- Housing: Zinc die cast with chrome plating
- Features: Press-to-test
- Certifications: CSA Certified, CE Marked
- Dimensions: Approx. 1.9 in length
Specifications
- Part Number: 10250T51P
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Automation
- Item Subcategory : Pilot Device/Push Button
- Family : 10250T Series
- Type : 10250T
Product Data
- UPC : 78211412143
- GTIN : 00782113203485
- Country of Origin : Dominican Republic
- Dimensions : 1.9 in x 2.2 in x 1.3 in (Length/Depth x Height x Width)
- Weight : 0.05 lb
- Certification : UL Listed,CSA Certified,CE Marked
