10250T413 - Eaton 30.5mm Heavy-Duty Illuminated Momentary Pushbutton, NEMA 3/3R/4/4X/12/13 Rated

10250T413

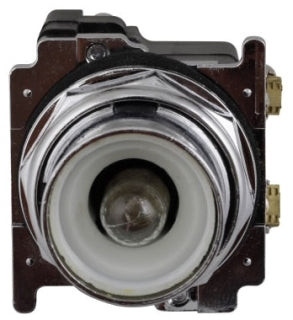

10250T413 is an Eaton 30.5 mm heavy-duty illuminated momentary pushbutton operator designed for industrial control applications requiring reliable indication and durable construction.

This pushbutton features a zinc die cast bezel with flush mounting, enclosed silver contacts, and a three-position design. It is rated for NEMA 3, 3R, 4, 4X, 12, and 13 enclosures, providing watertight and oiltight protection. The unit includes an incandescent transformer light unit operating at 380 Vac with a #755 lamp, chrome bezel finish, and one-piece body construction with drainage holes and grounding nibs for enhanced reliability in hazardous and demanding environments.

• Catalog Number: 10250T413
• Series: 10250T
• Size: 30.5 mm
• Operating Mode: Momentary
• Illumination: Illuminated (Incandescent, Transformer)
• Light Unit Voltage: 380 Vac
• Bezel Material: Zinc Die Cast
• Mounting Method: Flush
• NEMA Ratings: 3, 3R, 4, 4X, 12, 13
• Certifications: UL Listed, CSA Certified, CE Marked
• Operating Temperature Maximum: 150 Degrees F
• Weight: 0.1 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T413
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Automation
• Item Subcategory : Pilot Device/Push Button
• Family : 10250T Series
• Type : 10250T

Product Data

• UPC : 786680123276
• GTIN : 00782113458168
• Country of Origin : Dominican Republic
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : UL Listed,CSA Certified,CE Marked
