Product Info
- Manufacturer:Eaton
- Sub-Category:Pilot Device
Description
10250T21LB

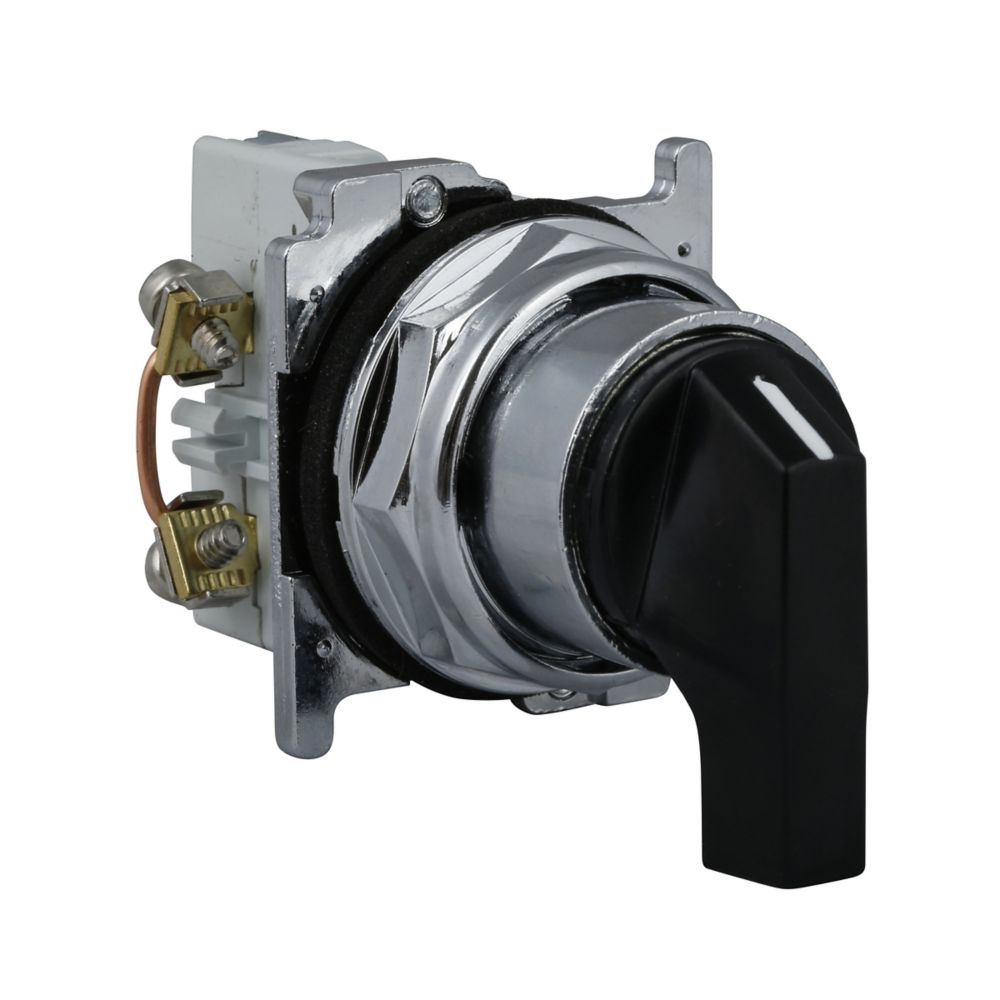

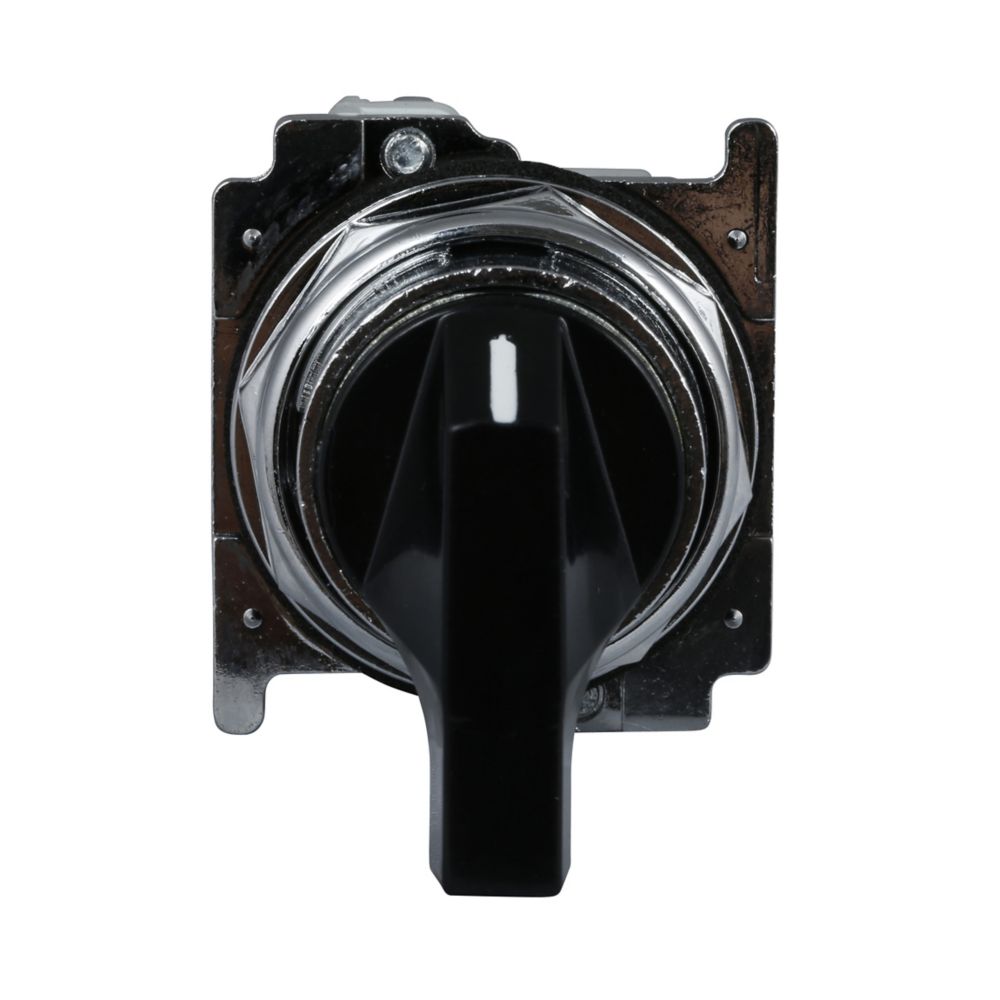

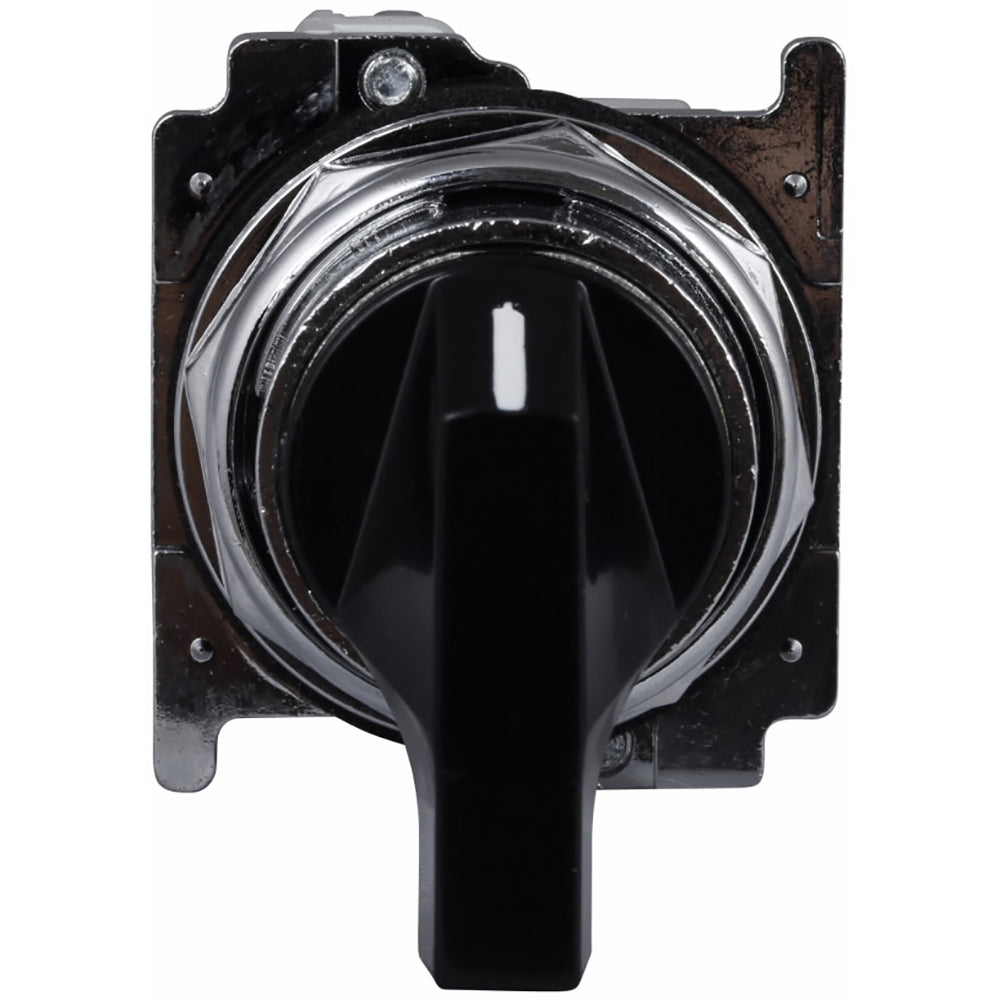

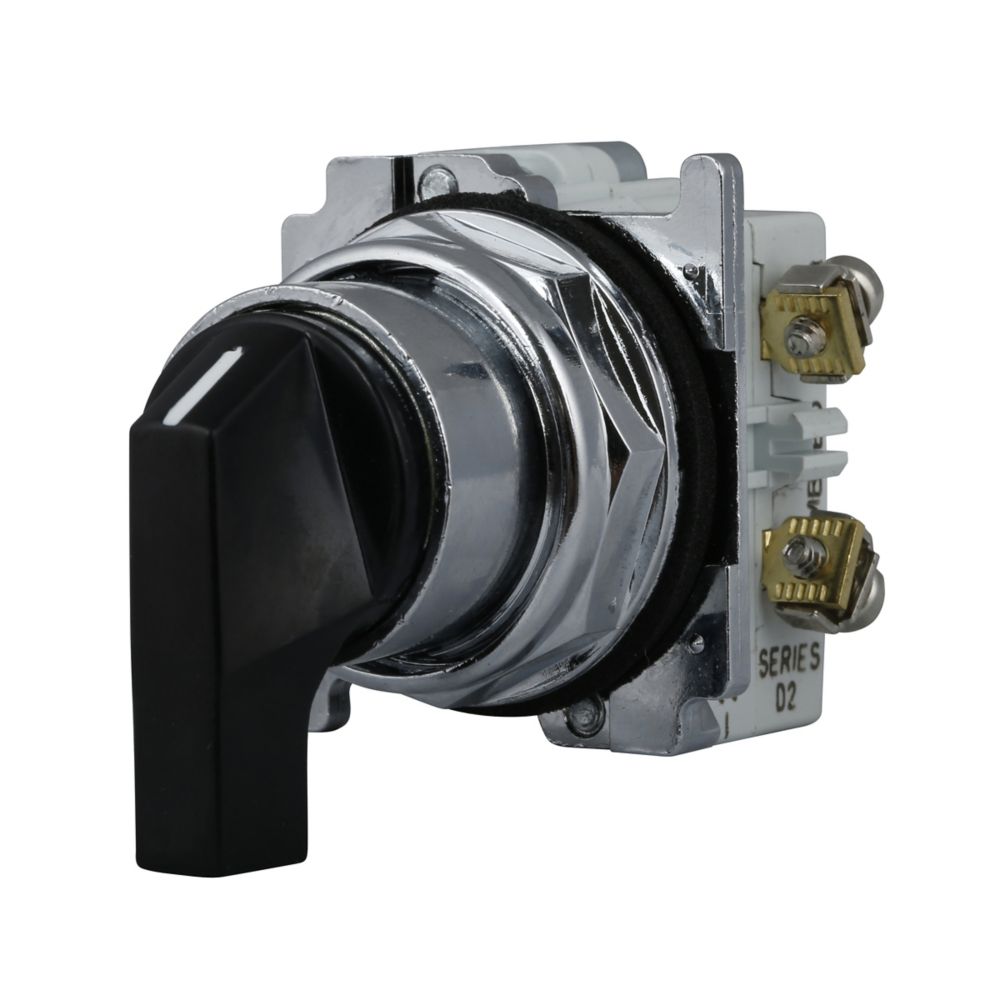

10250T21LB - Eaton heavy-duty 30.5 mm three-position selector switch for industrial motor control applications.The Eaton 10250T21LB is a heavy-duty assembled selector switch from the 10250T series, featuring a 60 degree throw, non-illuminated black lever actuator, and 2NO contact configuration. It offers robust zinc die-cast construction for durability in challenging environments and is rated for NEMA 3, 3R, 4, 4X, 12, 13 enclosures.
- Series: 10250T
- Size: 30.5 mm
- Type: Heavy-Duty Assembled Selector Switch
- Number of Positions: 3
- Throw Type: 60 degree
- Actuator: Lever, Black
- Contact Configuration: 2 NO
- Illumination: Non-illuminated
- NEMA Rating: NEMA 3, 3R, 4, 4X, 12, 13
- Voltage Rating: 600 VAC, 250 VDC
- Mounting Type: Surface
- Certifications: CSA Certified, UL Listed, CE Marked
Specifications
- Part Number: 10250T21LB
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Pilot Device
- Family : 10250T Series
- Type : 10250T
Product Data
- UPC : 782113357485
- GTIN : 00782113357485
- Country of Origin : Dominican Republic
- Dimensions : 3.4 in x 2 in x 2.4 in (Length/Depth x Height x Width)
- Weight : 0.35 lb
- Certification : UL Listed,CSA Certified,CE Marked
