10250T1EC - Eaton 10250T Series Heavy-Duty Pushbutton Contact Block 1NO-1NC, 30.5mm, Pressure Terminals, Amber

10250T1EC

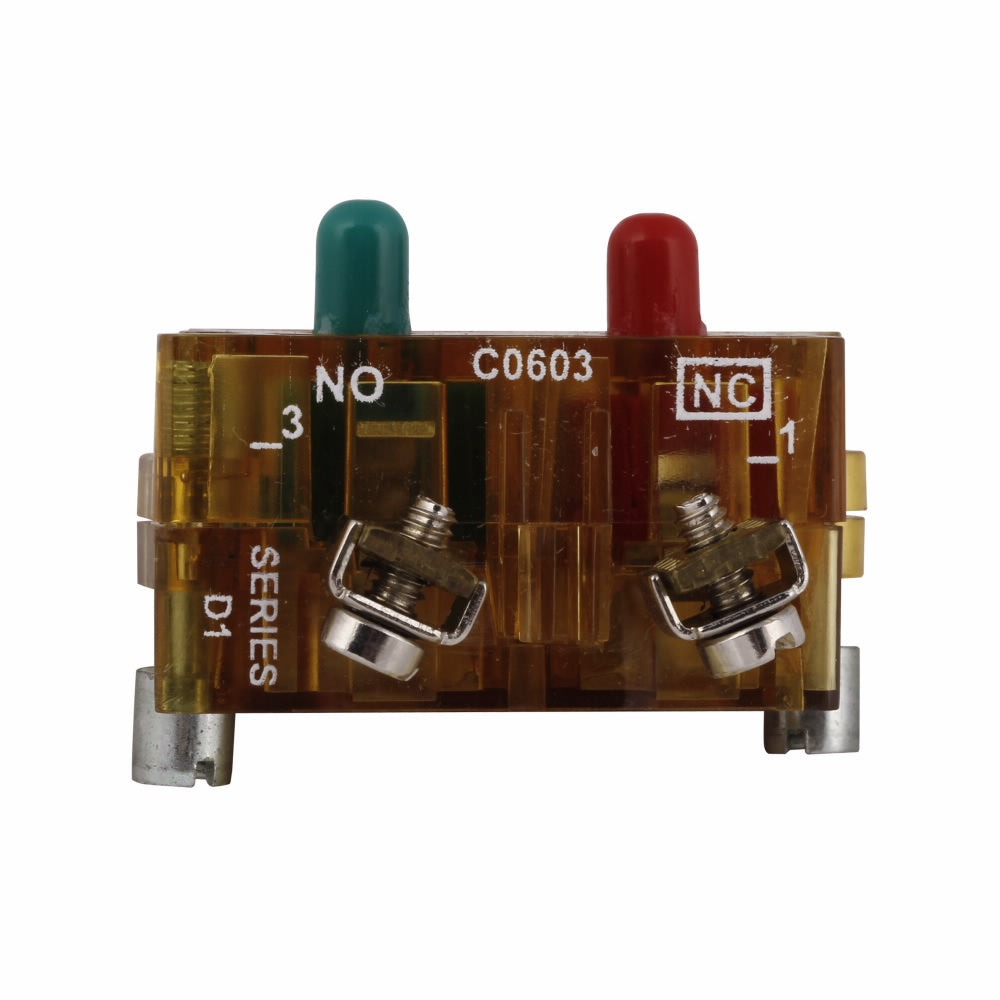

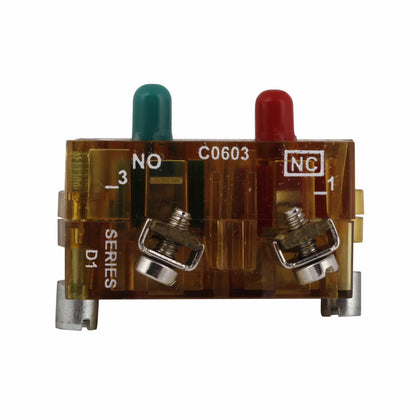

10250T1EC is an Eaton 10250T series heavy-duty pushbutton contact block with 1 normally open and 1 normally closed contact configuration and pressure terminals.This 30.5 mm contact block features a compact design with an amber logic level indicator, pressure-type terminals, and is rated for 10 amps at 600 VAC and 5 amps at 250 VDC. It supports stacking up to six blocks (12 circuits) and is UL listed and CSA certified for industrial use.

• Series: 10250T
• Contact Configuration: 1 NO - 1 NC
• Mounting: 30.5 mm pushbutton panel mount
• Terminals: Pressure type
• Amperage Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Color: Amber
• Compliance: UL Listed, CSA Certified, CE Marked
• Durability: 50,000 electrical operations at rated load
• Compact size: 2.4 in length x 2 in width x 1 in height
• Stackable up to 6 blocks (12 circuits)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T1EC
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Pushbutton / Contact Block
• Family : 10250T Series

Product Data

• UPC : 78211641847
• GTIN : 00782116418473
• Country of Origin : Dominican Republic
• Dimensions : 1.9 in x 2.2 in x 1.2 in (Length/Depth x Height x Width)
• Weight : 0.05
• Certification : UL Listed,CSA Certified,CE Marked
