10250T173 - Eaton 65mm Heavy-Duty Non-Illuminated Momentary Pushbutton, Zinc Die Cast, 1 NC Contact, NEMA 3/3R/4/4X/12/13

10250T173

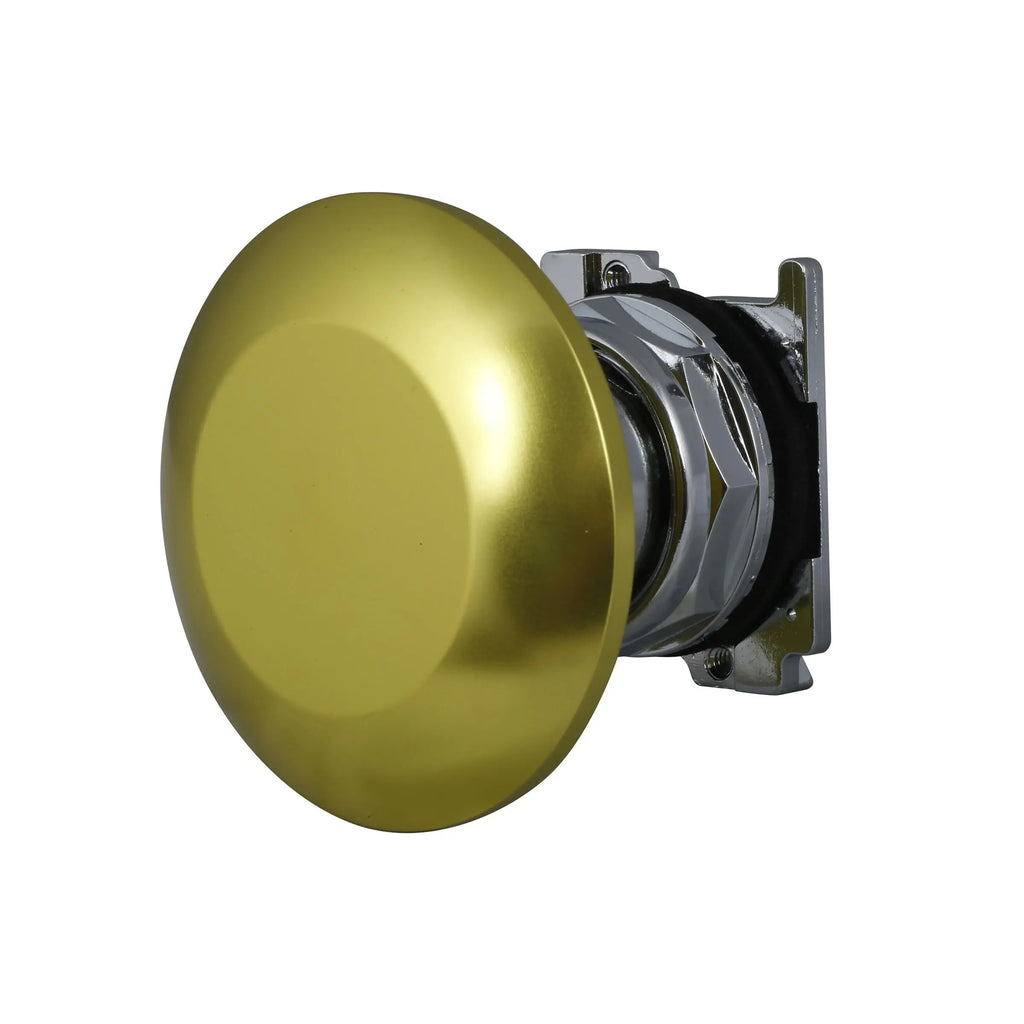

10250T173 is a heavy-duty Eaton 65 mm pushbutton designed for reliable motor control applications.This Eaton 10250T series pushbutton features a rugged zinc die-cast body with a durable chrome finish and an anodized aluminum jumbo mushroom actuator. It operates in momentary mode with a single normally closed (1 NC) contact configuration. The device is rated for use in harsh environments with NEMA 3, 3R, 4, 4X, 12, and 13 enclosures, providing watertight and oiltight protection.

Key Specifications
• Series: Eaton 10250T
• Actuator Size: 65 mm jumbo mushroom
• Contact Configuration: 1 Normally Closed (NC)
• Operating Mode: Momentary
• Body Material: Zinc die cast with chrome finish
• Actuator Material: Anodized aluminum
• Environmental Ratings: NEMA 3, 3R, 4, 4X, 12, 13
• Heavy-duty construction for industrial use
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 10250T173
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Pilot Device
• Family : 10250T Series
• Type : 10250T



Product Data

• UPC : 782113203409
• GTIN : 00782113203409
• Country of Origin : Dominican Republic
• Dimensions : 2.4 in x 2.1 in x 2.4 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
• Certification : UL Listed,CSA Certified,CE Marked
