Product Info
- Manufacturer:Eaton
- Sub-Category:Pilot Device/Push Button
Description
10250T15112

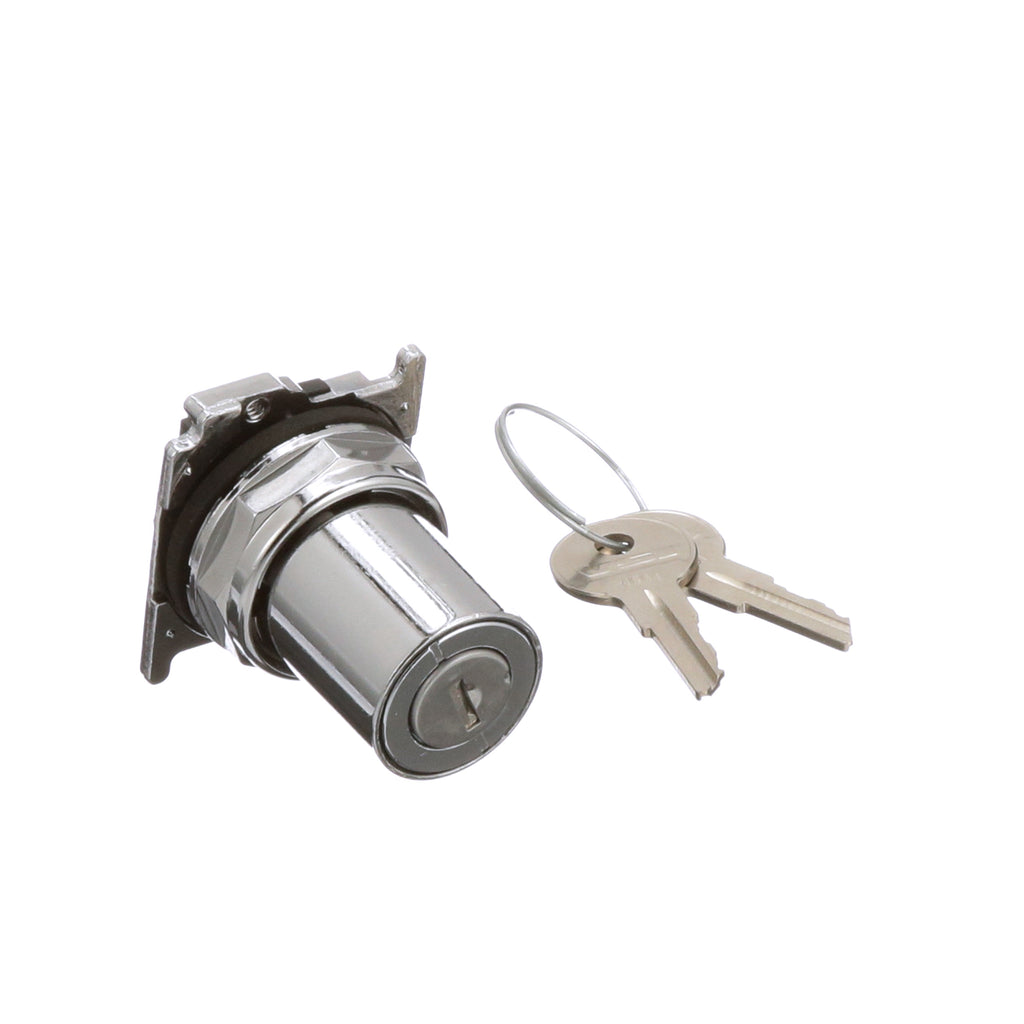

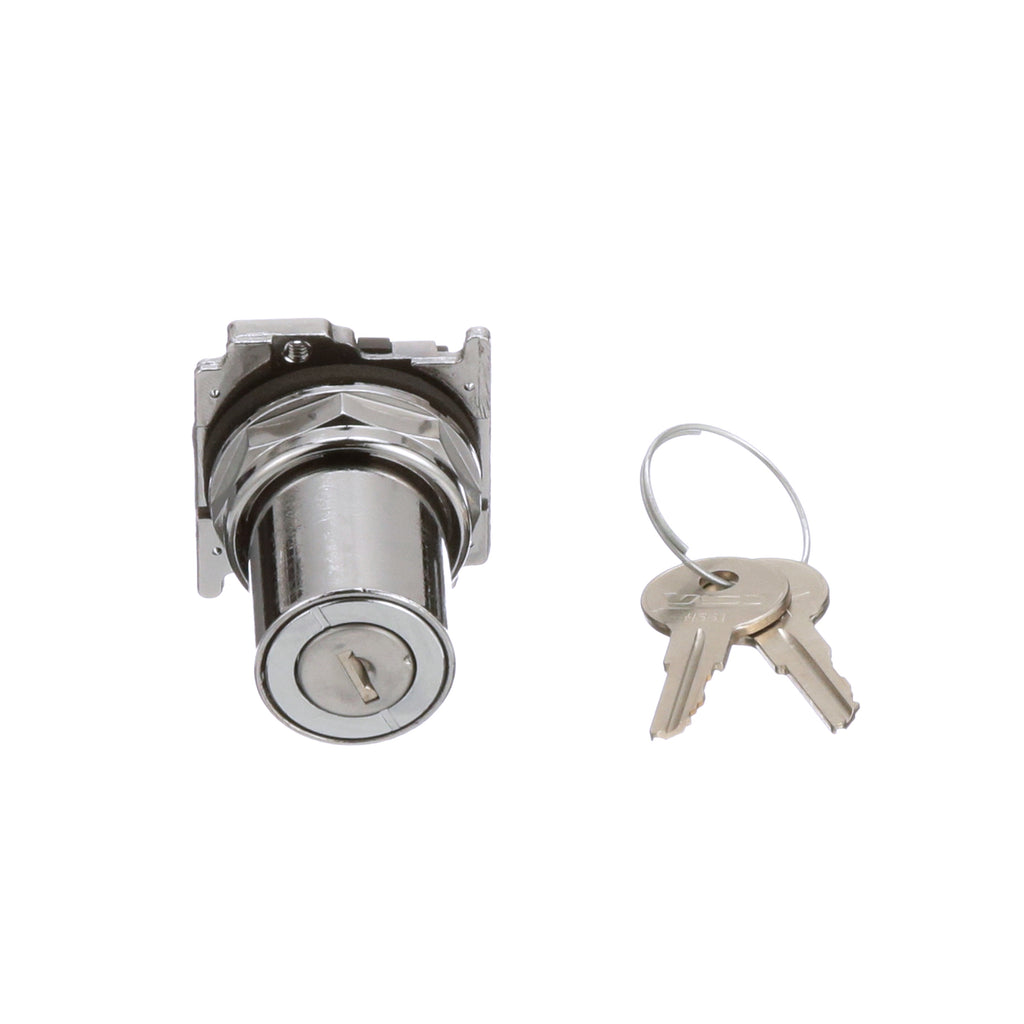

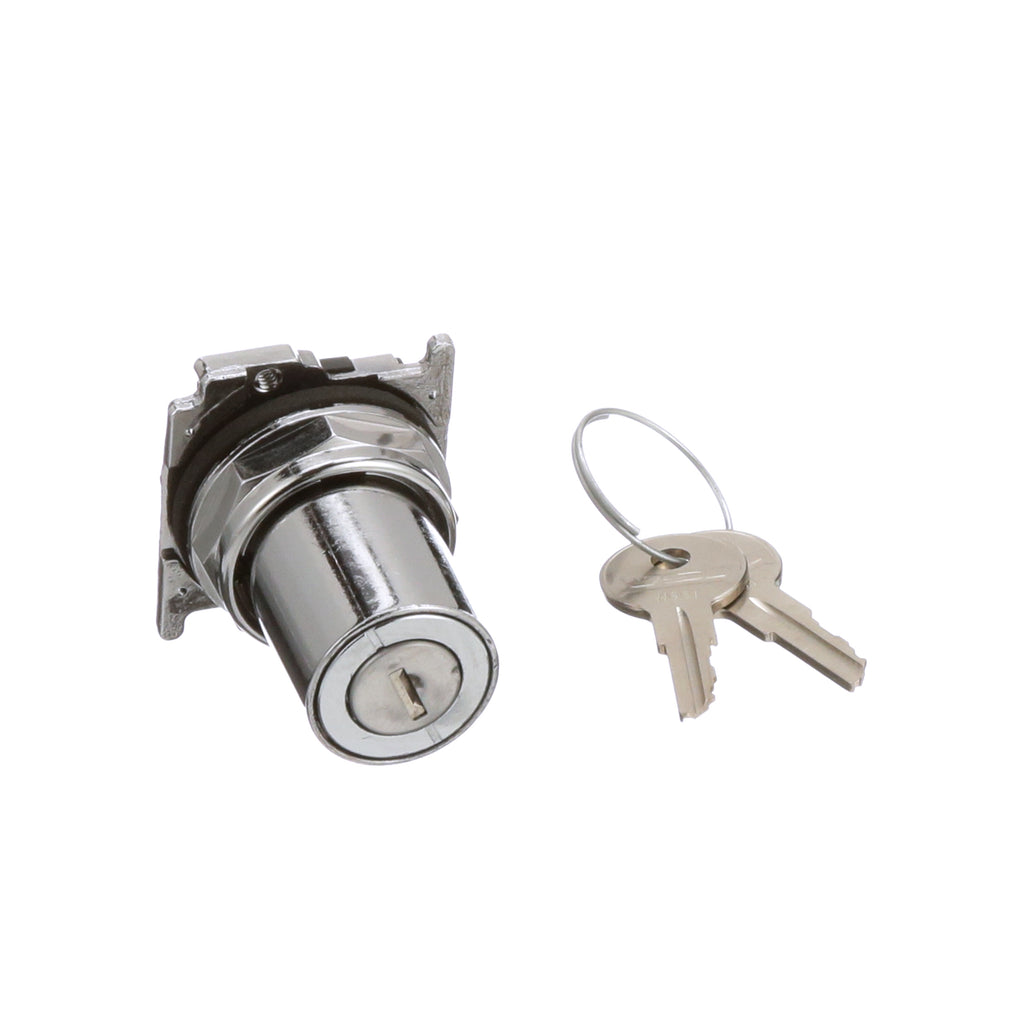

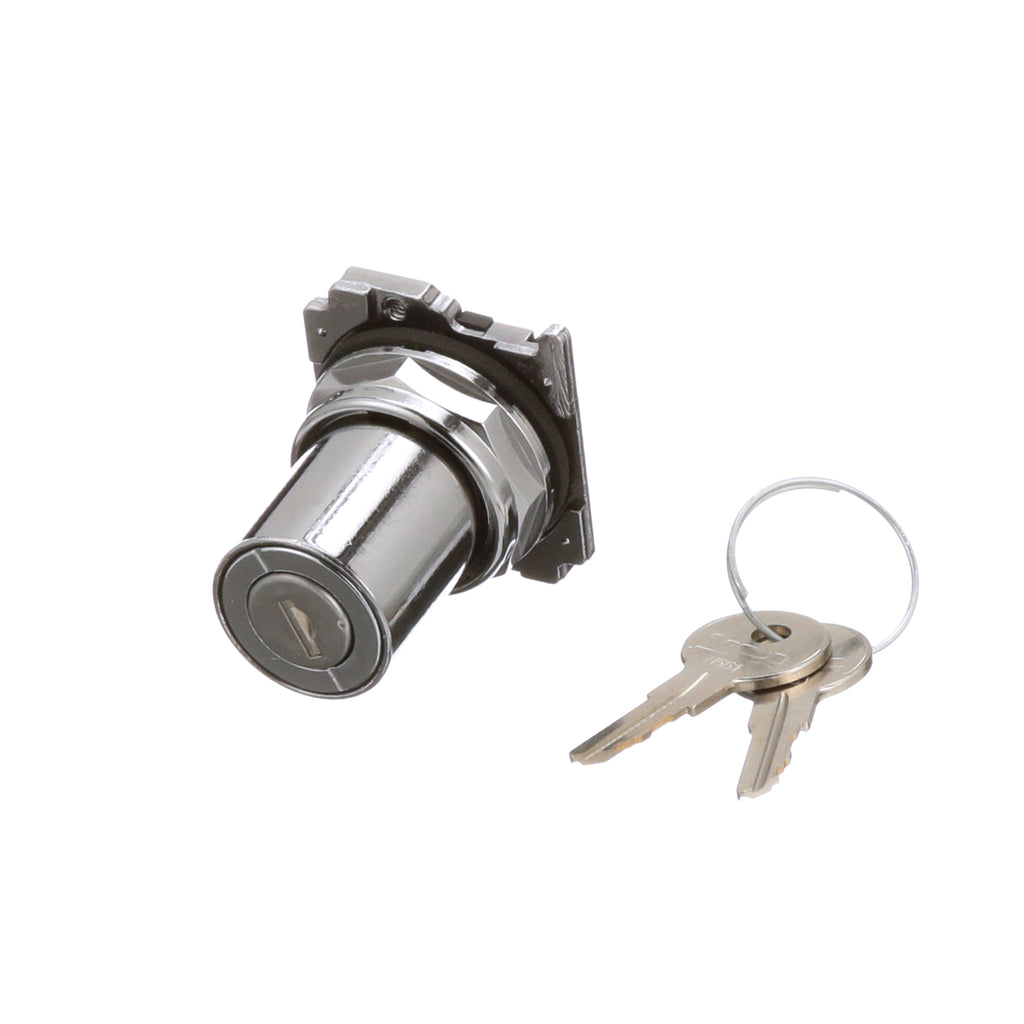

10250T15112 is a heavy-duty 2-position keylock selector switch from Eaton's 10250T series, designed for machine control and safety circuit applications.
This 30.5 mm selector switch features a key-operated actuator with 60-degree throw and zinc die-cast construction with chrome-plated housing. The non-illuminated design provides reliable switching in industrial environments with NEMA ratings for multiple enclosure types. UL Listed and CSA Certified for safety compliance.
- Catalog Number: 10250T15112
- Series: 10250T
- Type: 30.5 mm Heavy-Duty Selector Switch
- Positions: 2-position
- Actuator: Key operated, Left only key removal
- Throw: 60 degrees

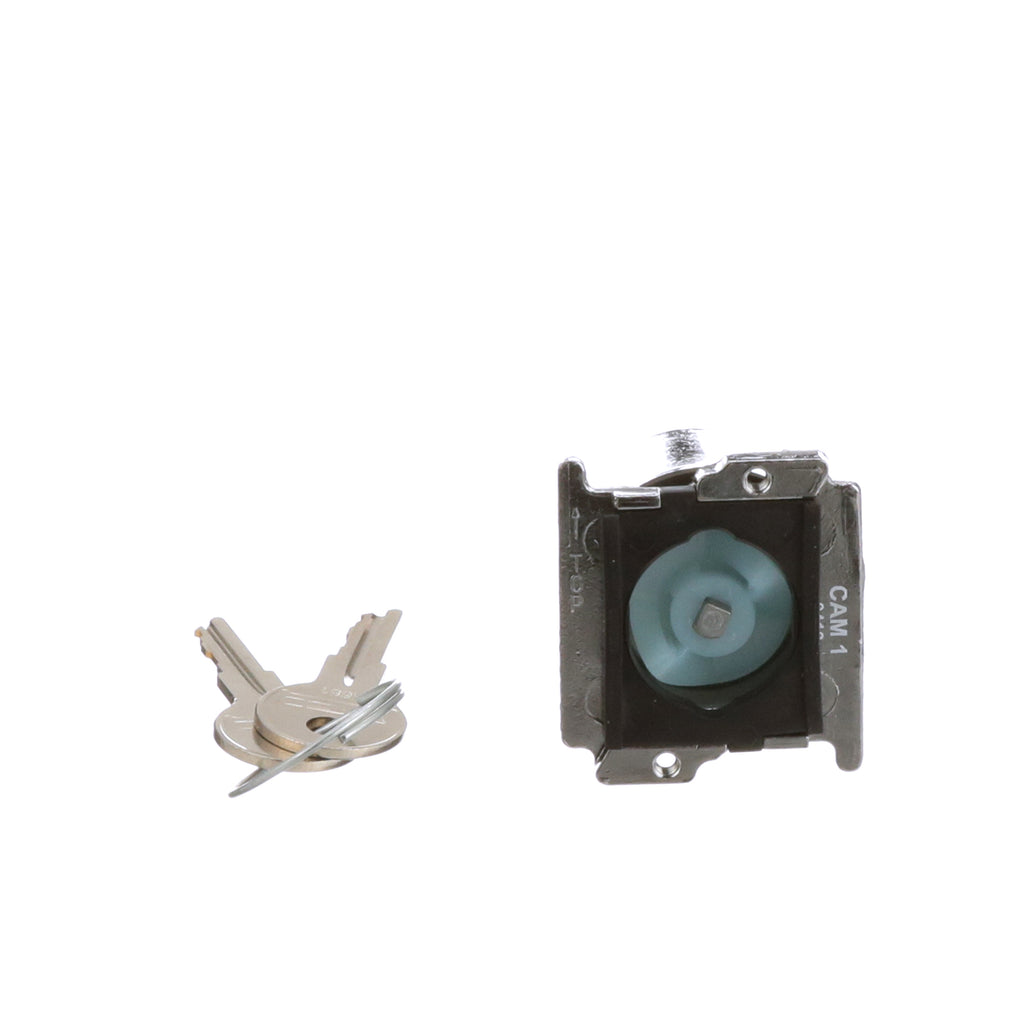

- Cam Code: Cam 1
- NEMA Ratings: NEMA 3, 3R, 4, 4X, 12, 13
- Illumination: Non-illuminated
- Certifications: UL Listed, CSA Certified, CE Marked
- Warranty: 1 year
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 10250T15112
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Pilot Device/Push Button
- Family : 10250T Series
- Type : 10250T
- Voltage : 240
- Amperage : 10
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679308820
- GTIN : 00782113227481
- Country of Origin : Dominican Republic
- Dimensions : 1.9 in x 2.2 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.35 lb
- Certification : UL Listed,CSA Certified,CE Marked
