Product Info
- Manufacturer:Eaton
- Sub-Category:Motor Control Part And Accessory
Description
10250H5301

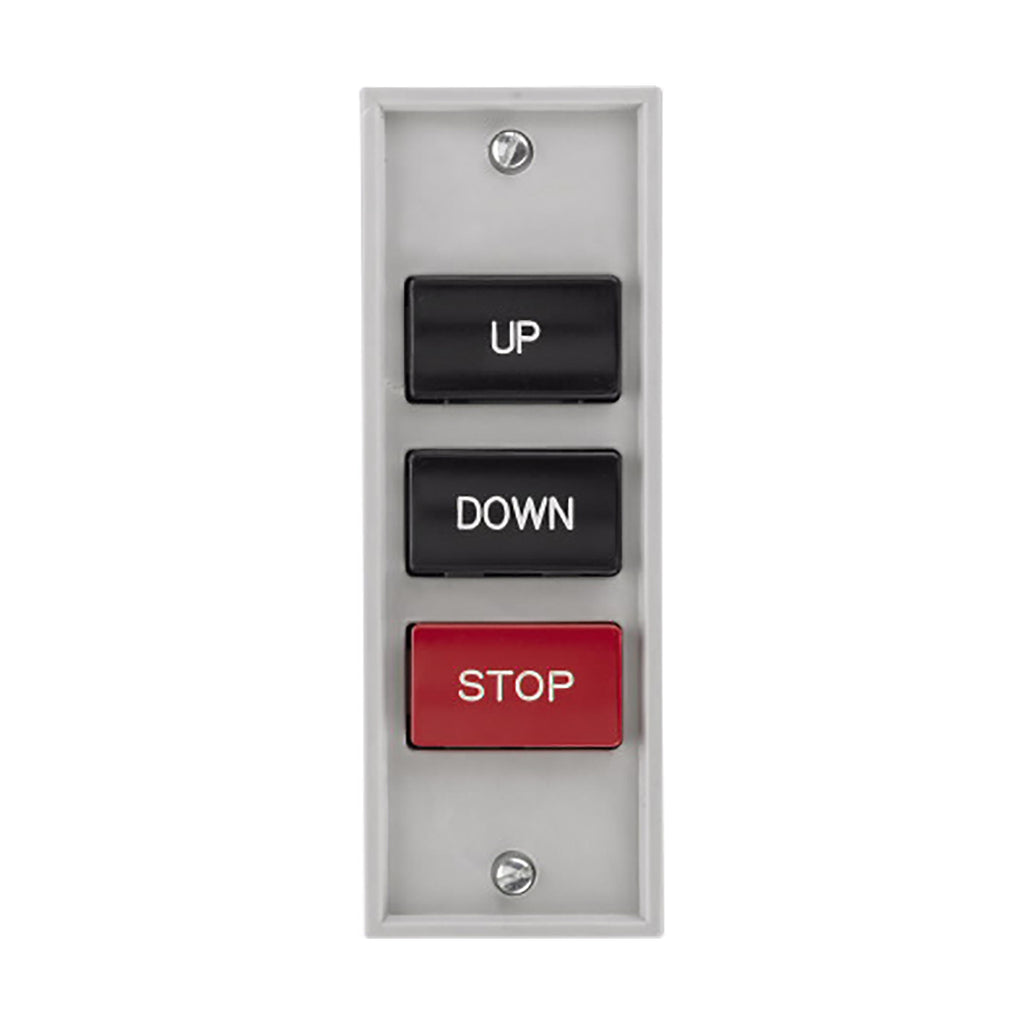

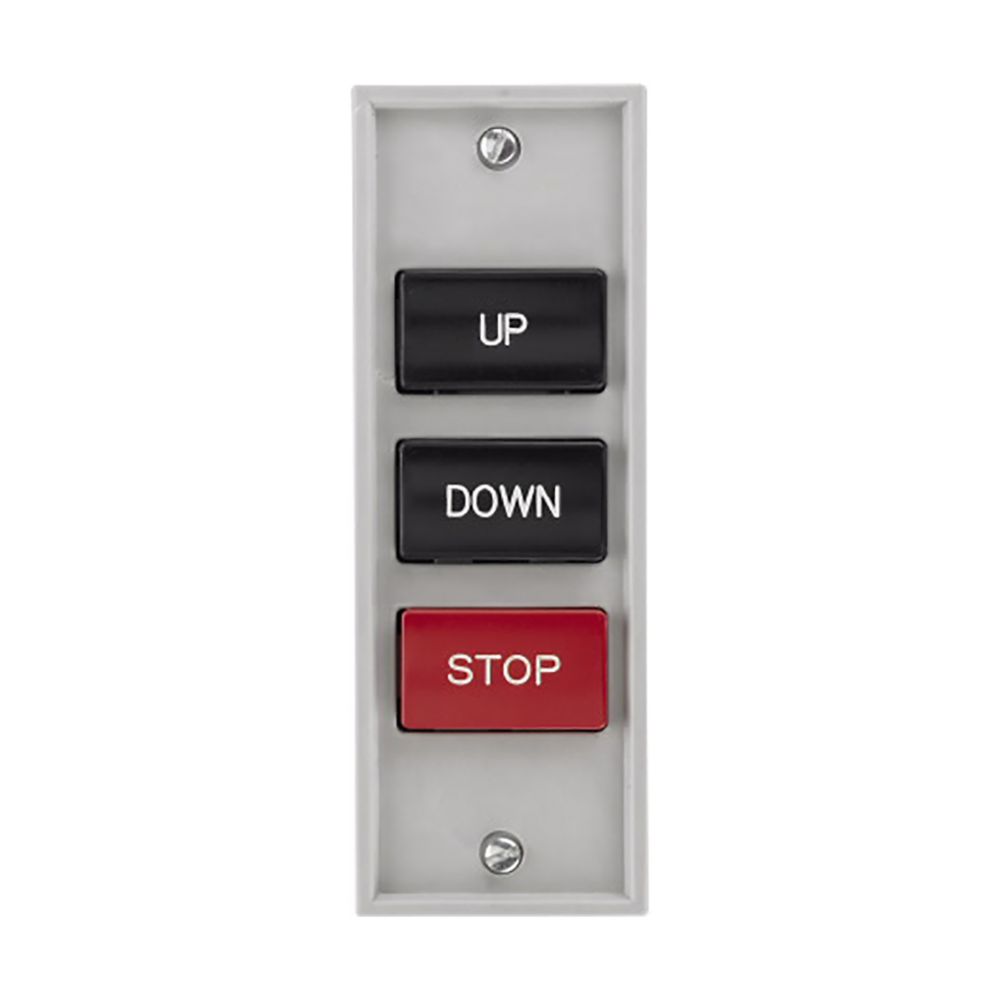

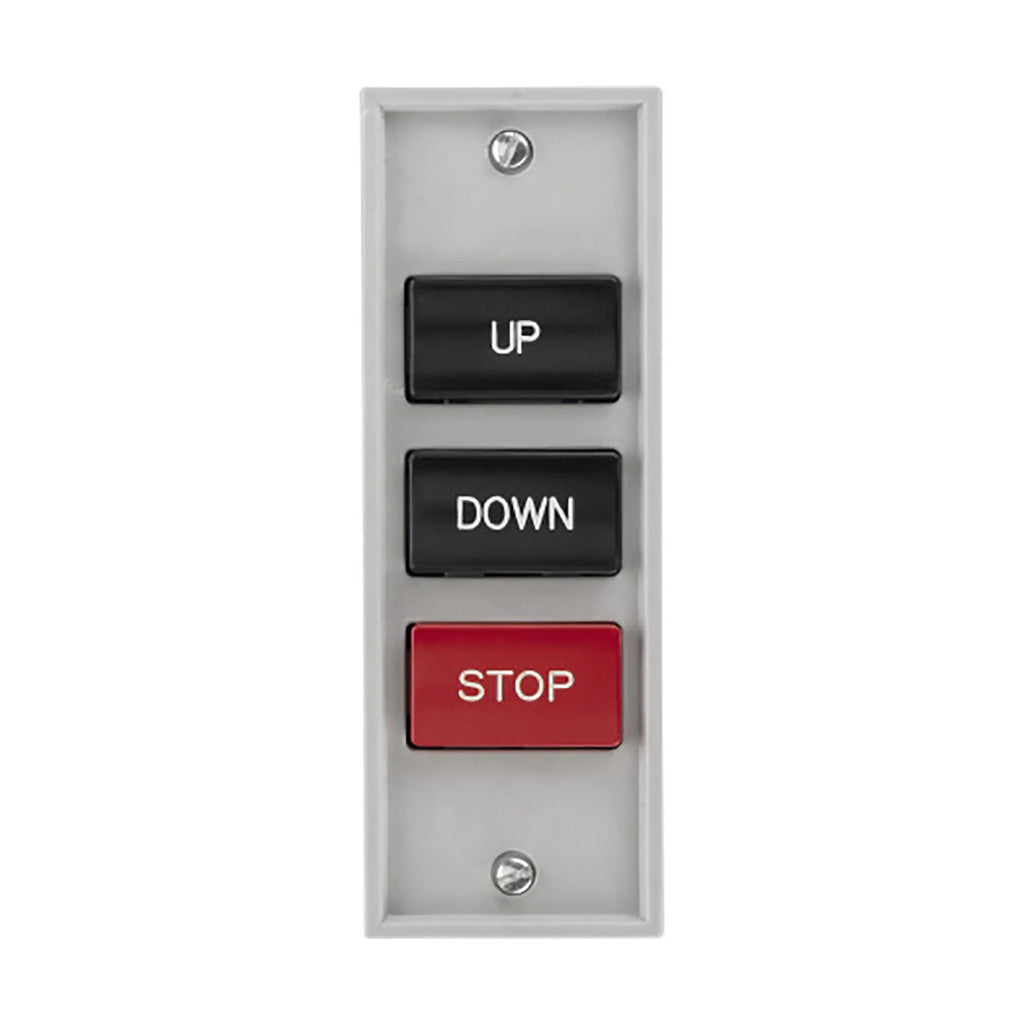

10250H5301 is a heavy-duty Eaton push button control station rated for 10 Amps and 550VAC/600VDC voltage with a flush actuator design.This assembled control station features three operators with clear UP/DOWN/STOP legends, a 30.5 mm size, and a durable die-cast black housing designed for surface mounting. It meets NEMA 1 standards for indoor use and is ideal for demanding motor control applications.
- Amperage: 10 Amps
- Voltage Rating: 550VAC / 600VDC
- Operator Type: Flush actuator
- Number of Operators: Three (UP/DOWN/STOP)
- Mounting Type: Surface mount
- Size: 30.5 mm
- Housing: Die-cast, black
- Enclosure Rating: NEMA 1
- Series: 10250T / 10250H
- Heavy-Duty construction
Specifications
- Part Number: 10250H5301
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Control Station
- Family : 10250T Series
- Type : 10250T
Product Data
- UPC : 782113203126
- GTIN : 00782113203126
- Country of Origin : Dominican Republic
- Dimensions : 7.8 in x 4.4 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 1.35 lb
- Certification : UL Listed,CSA Certified,CE Marked
