Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
1003R1C5.5

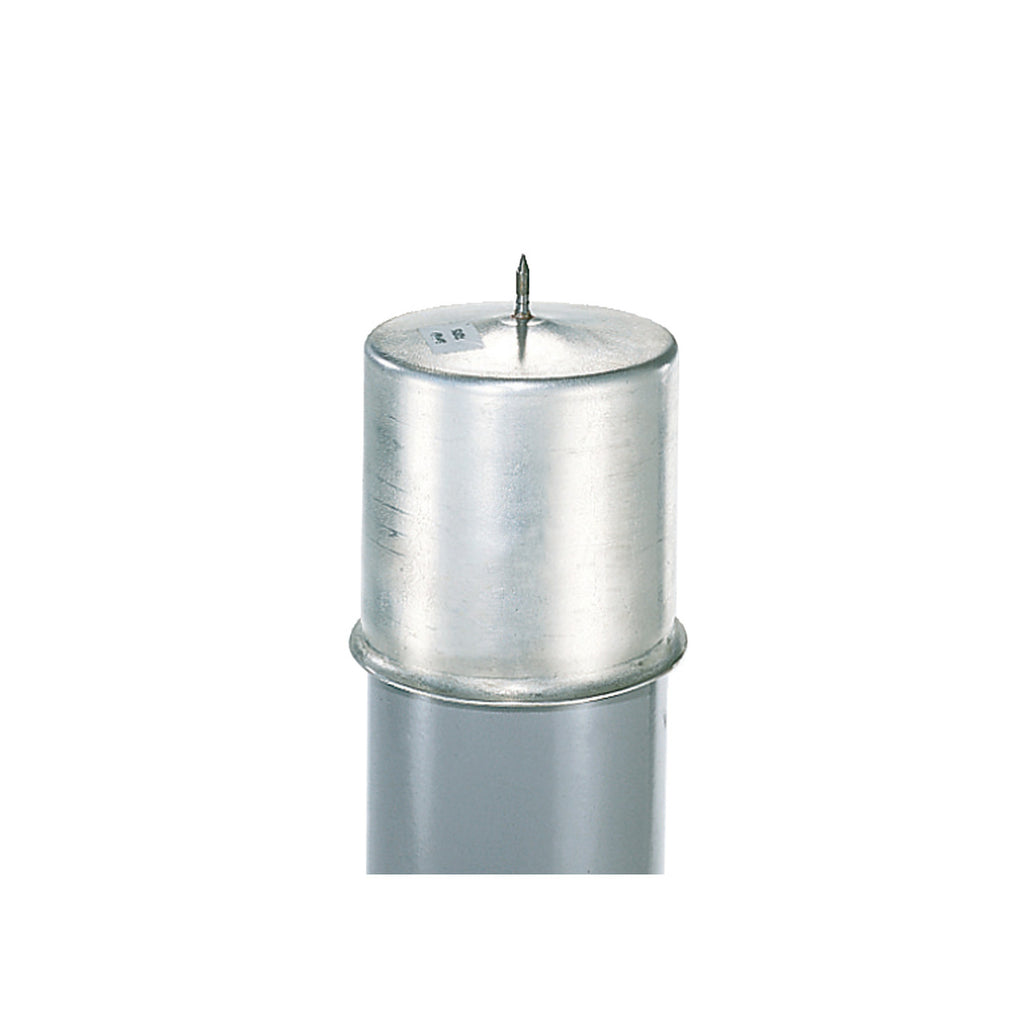

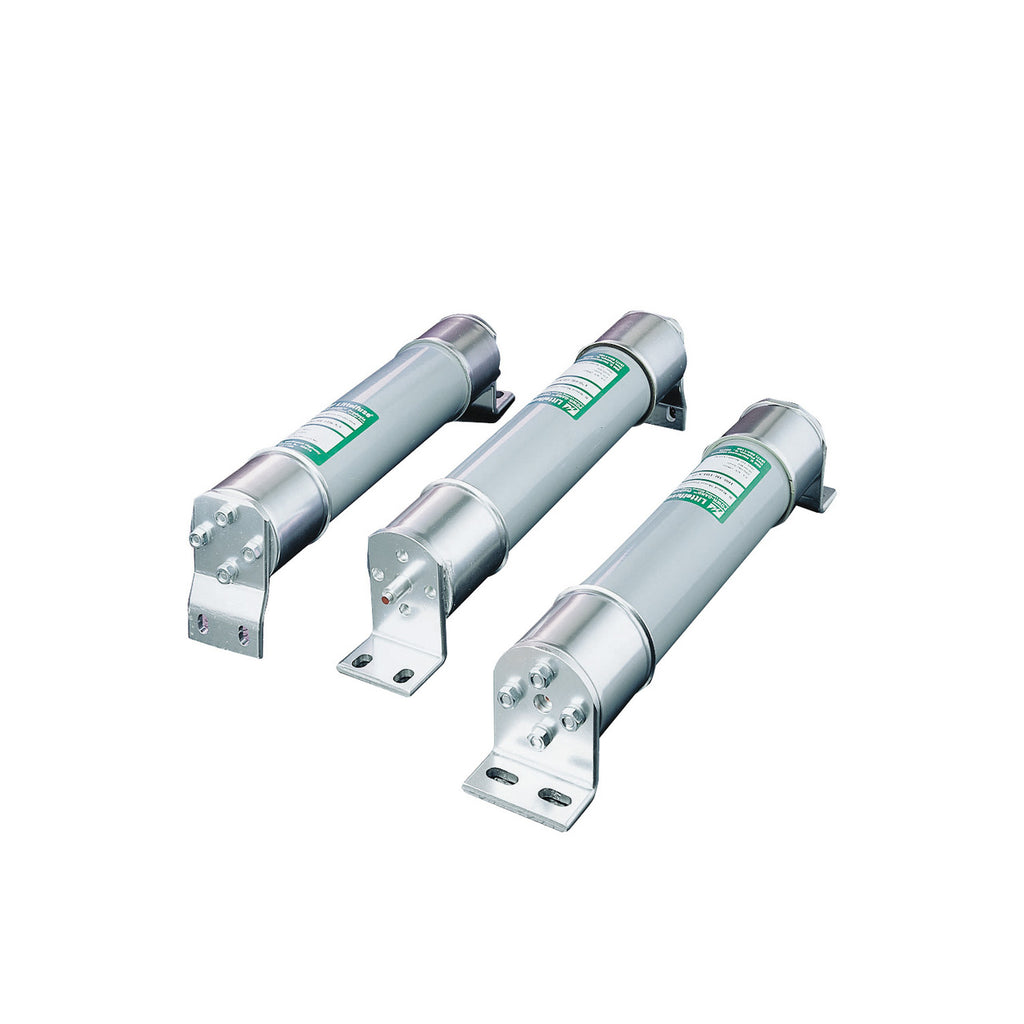

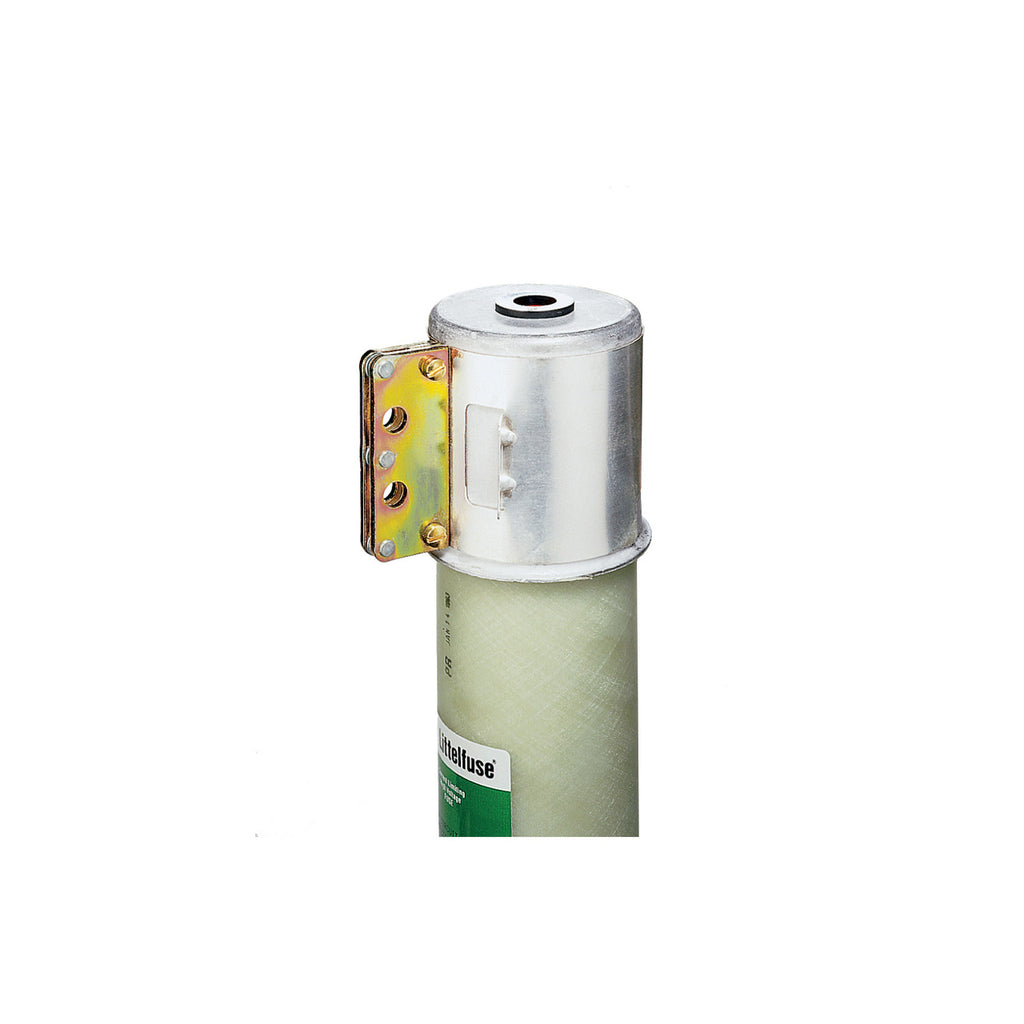

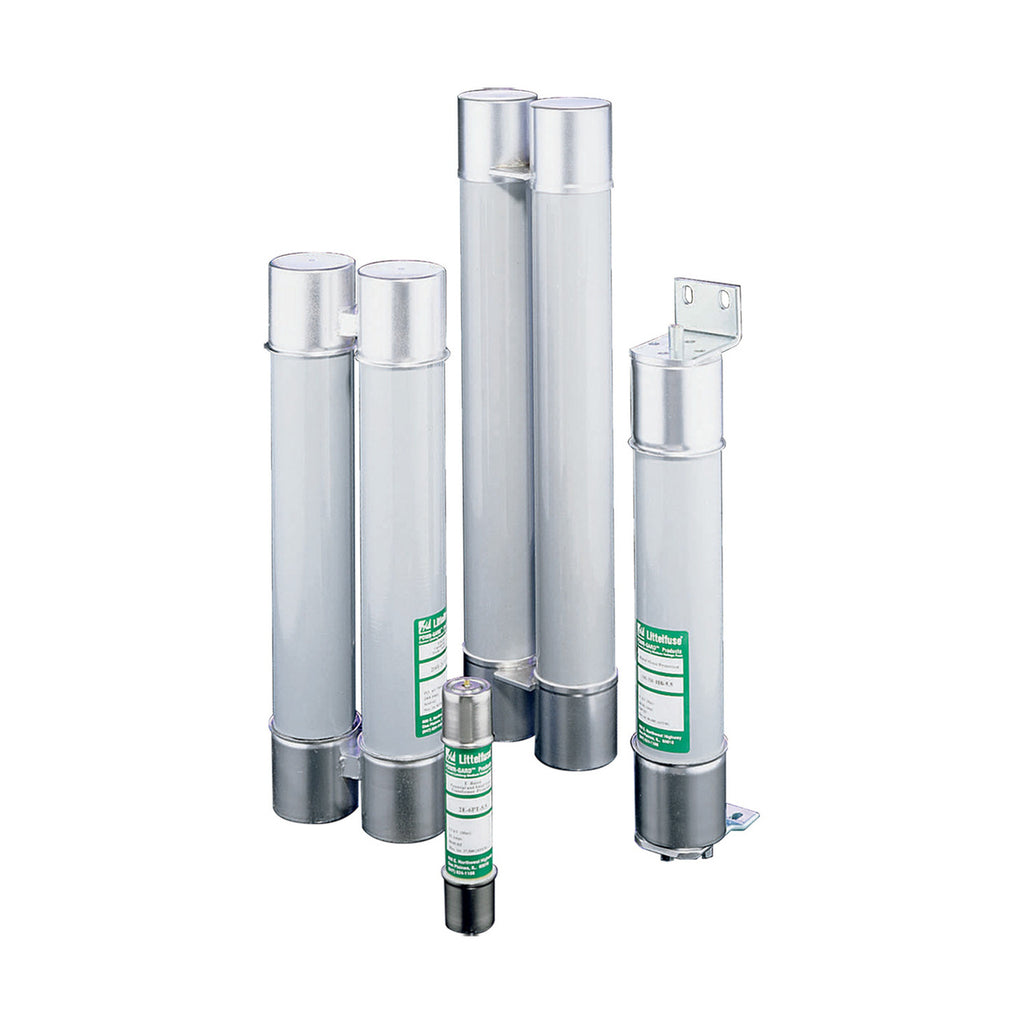

1003R1C5.5 is a Littelfuse R-Rated medium voltage fuse designed to provide short-circuit protection for medium voltage motors, motor controllers, and associated circuitry. This current-limiting cartridge fuse delivers reliable overcurrent protection in demanding industrial applications. The fuse features a mechanical indicator for visual fault detection and is constructed with a single barrel cartridge body for secure installation in standard fuse holders. Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 5500 VAC
- Interrupt Rating: 80 kA at 5.5 kVAC
- Fuse Class: R-Rated Medium Voltage
- Body Style: Single Barrel Cartridge
- Fuse Size Group: 3R
- Indicator: Mechanical Indicator
- Length: 15.875 inches
- Diameter: 3 inches
- Current Limiting: Yes
Specifications
- Part Number: 1003R1C5.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : R Rated
- Type : R Rated
- Voltage : 5500
- Amperage : 100
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 079458041675
- GTIN : 00079458041675
- Weight : 7 lb
