Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Contactor
Description

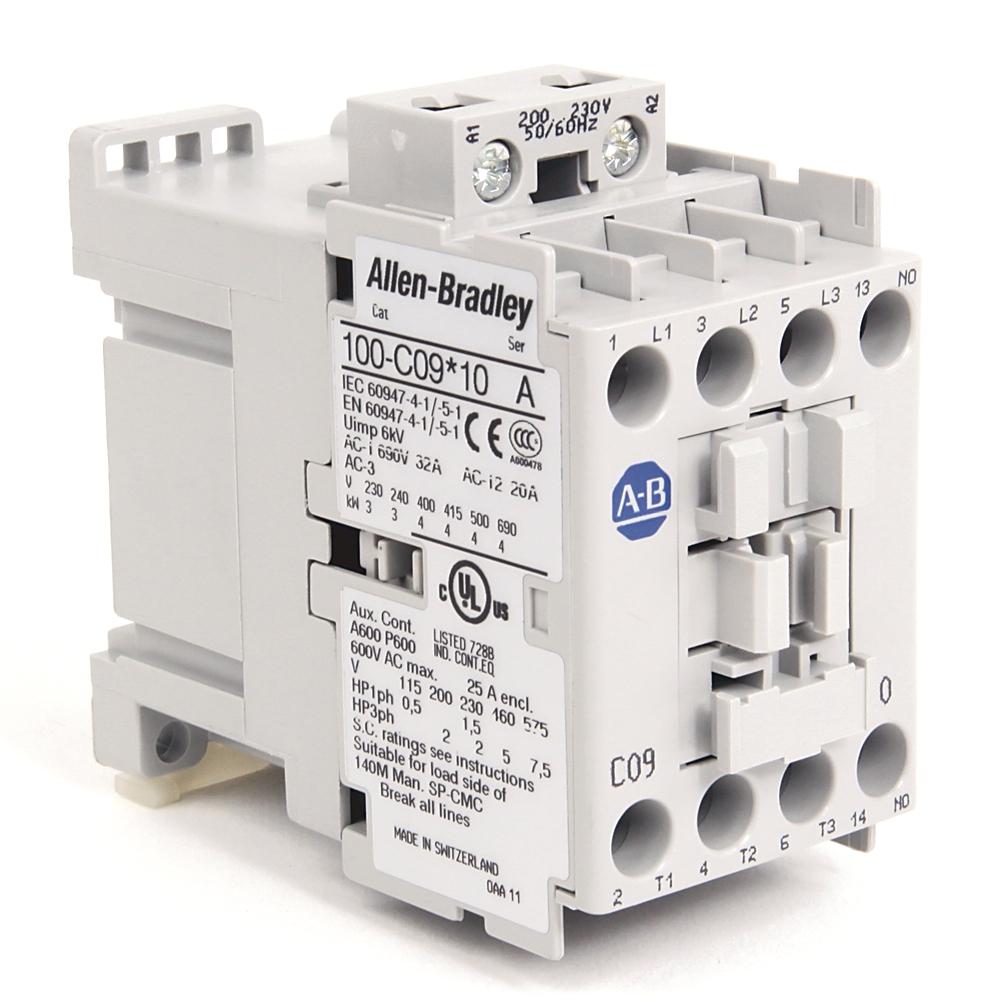

100-C09KJ10
100-C09KJ10 is a compact, high-performance Allen-Bradley IEC contactor designed for reliable motor control in industrial applications.
This 3-pole contactor features a 24VAC 50/60Hz operating coil, 9A AC-3 / 32A AC-1 current rating, and is rated for 2 HP at 230V or 5 HP at 460V. It includes one normally open (NO) auxiliary contact, screw terminals, and supports both panel and 35 mm DIN rail mounting. The 100-C09KJ10 is part of the Allen-Bradley 100-C series, known for space-saving design and low power consumption, and is suitable for a wide range of motor switching and control tasks.
-
Key Specifications
- Amperage: 9A AC-3, 32A AC-1
- Voltage: 600V maximum, 24VAC coil
- Poles: 3, normally open
- Mounting Type: Panel or 35 mm DIN rail
- Interrupt Rating: Not specified in available data
- Series/Frame: 100-C Series
- Trip Unit: Not applicable (contactor only)
- Certifications: Conforms to IEC/EN 60947-4-1 / 5-1
- Auxiliary Contacts: 1 NO, 0 NC
- Horsepower: 2 HP @ 230V, 5 HP @ 460V
- Termination: Screw terminals
- Coil Voltage: 24VAC 50/60Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 100-C09KJ10
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
- Compatible Frames : FXD
Product Data
- UPC : 662072608258
- GTIN : 00662072608258
- Weight : 1 lb
