Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

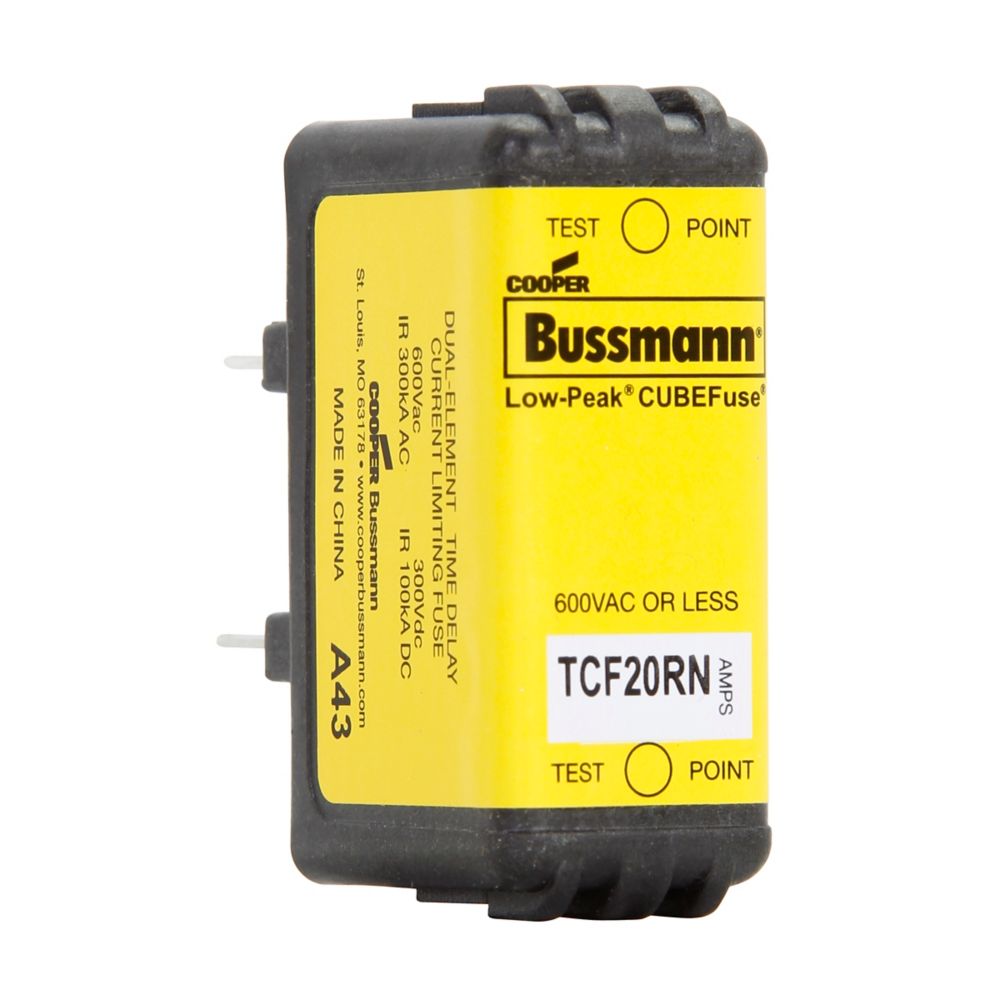

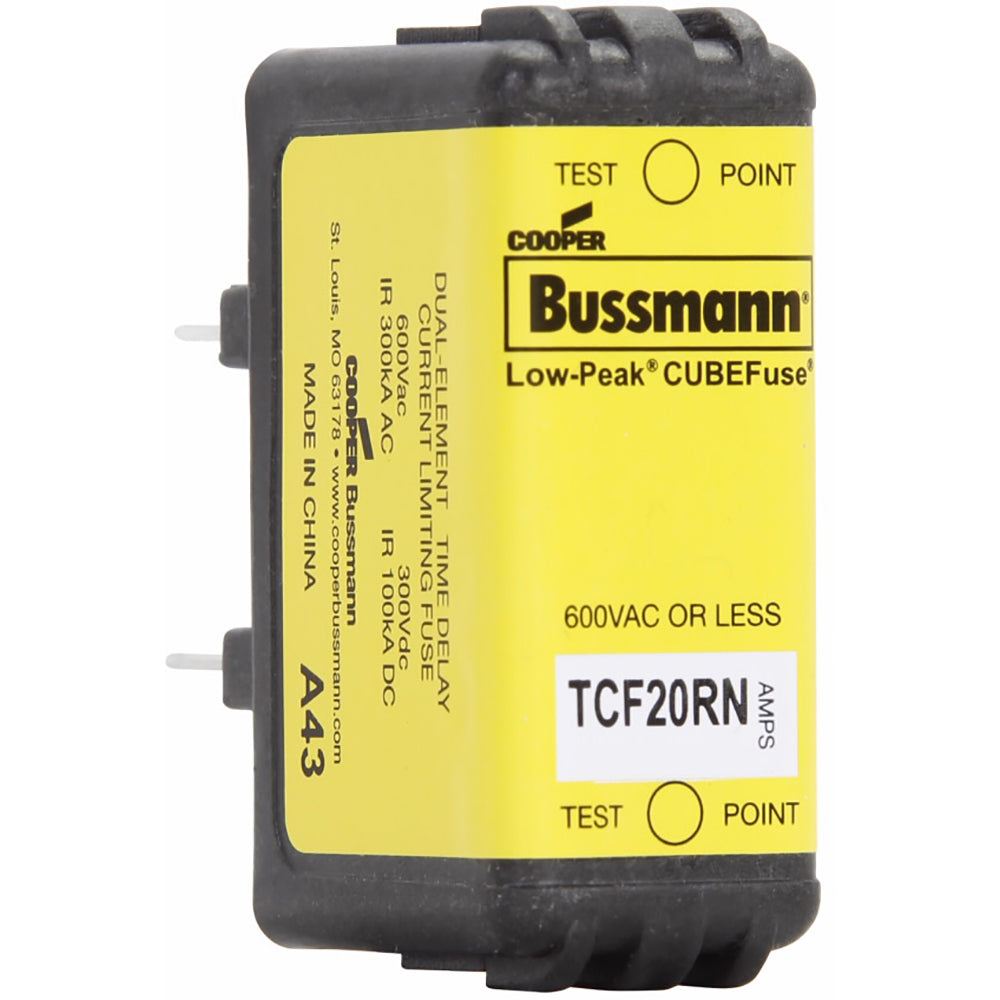

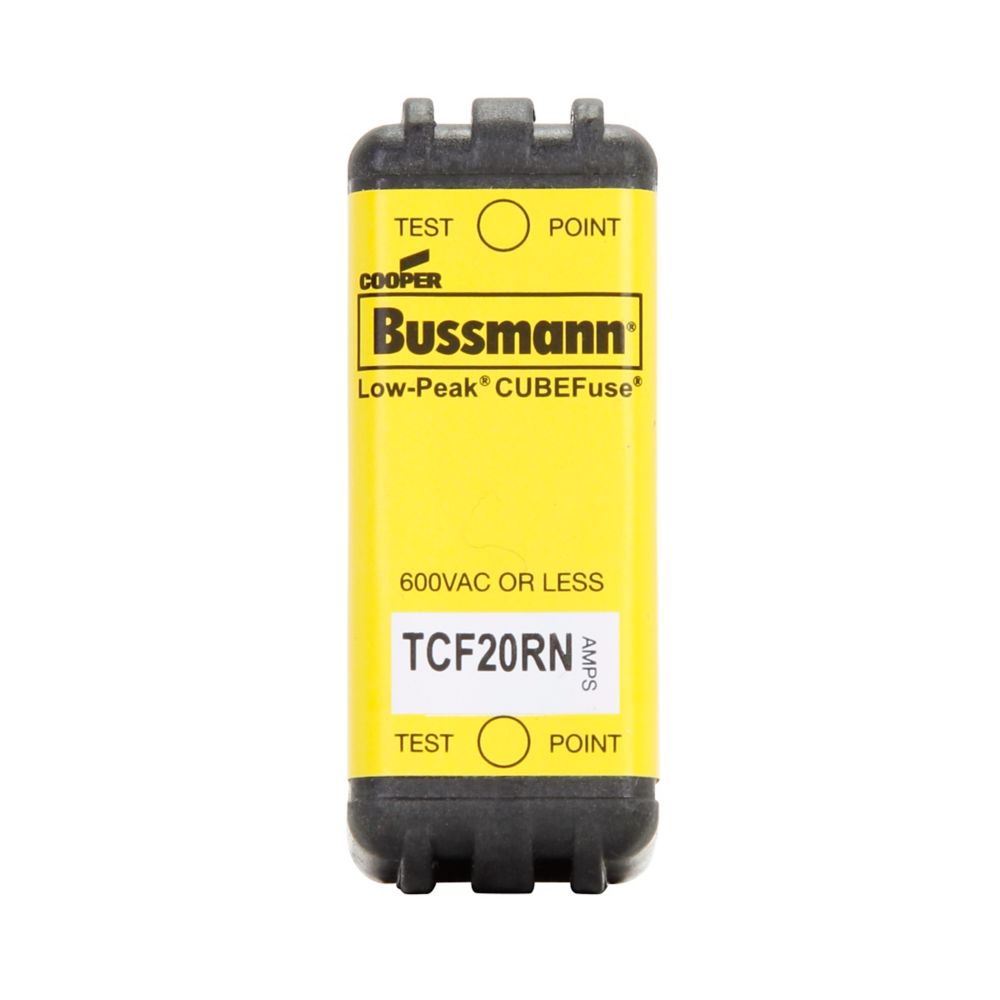

TCF20RN
TCF20RN is a 20 Amp, 600 Volt Class CF time-delay cube fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, current-limiting fuse provides excellent short-circuit protection with a 100 kA interrupt rating at 600 VAC. It features a non-indicating design with blade end connections and is UL and CSA certified. The fuse is suitable for branch circuit protection in motor and general power applications, offering time-delay performance to withstand temporary overloads.
- Key Specifications
- Amperage: 20 Amp
- Voltage Rating: 600 Volt AC
- Fuse Type: Class CF Cube Fuse
- Time-Delay: Dual Element
- Interrupt Rating: 100 kA at 600 VAC
- Connection Type: Blade End
- Indication: Non-Indicating
- Certifications: UL, CSA
- Mounting: Cube Fuse Holder
- Manufacturer: Eaton Bussmann
- Part Number: TCF20RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF_RN
- Voltage : 600
- Amperage : 20
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
- UPC : 051712220941
- GTIN : 00051712220941
- Country of Origin : China
- Dimensions : 1.88 in x 1 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.043
- Certification : CE Marked, CSA Certified, RoHS Compliant, UL Listed
