QBL32070 - Square D 70 Amp 3 Pole 240VAC PowerPact Q Circuit Breaker Thermal Magnetic 10kAIC

QBL32070

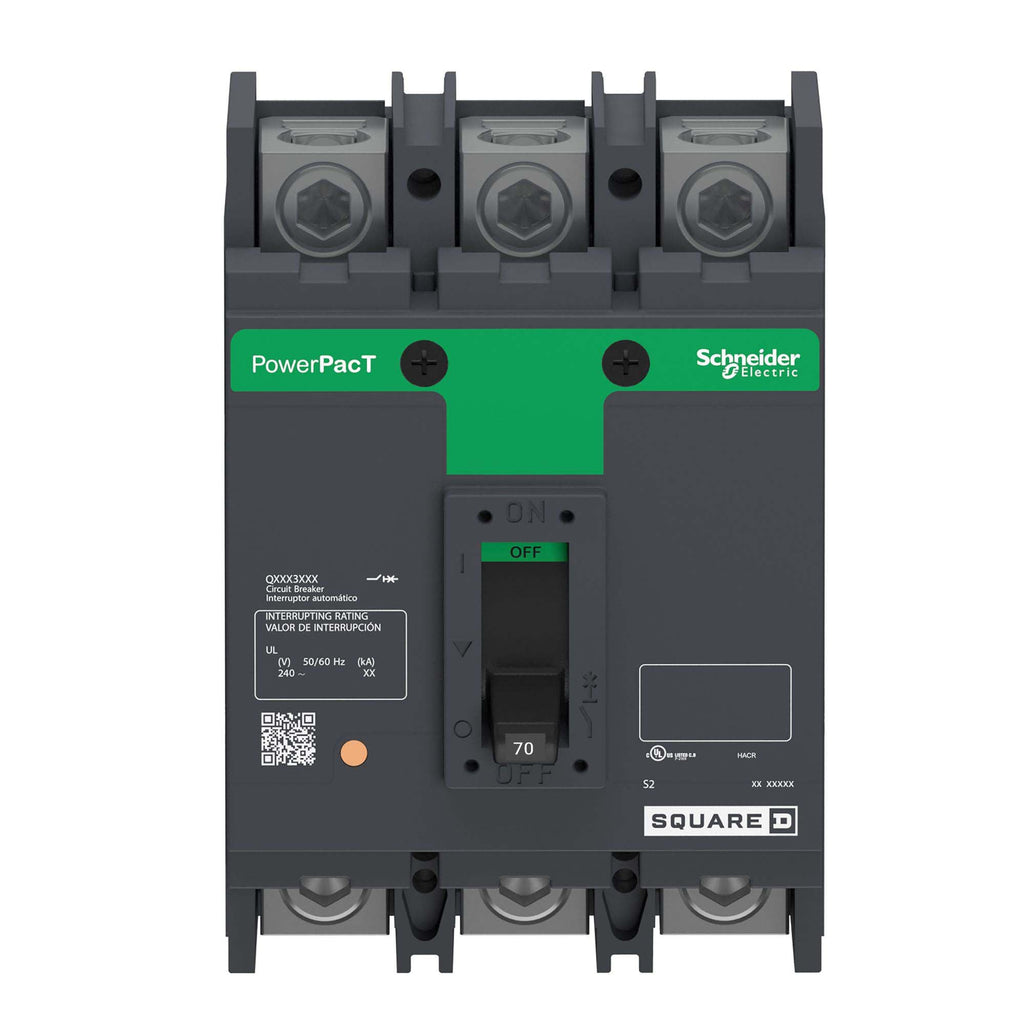

QBL32070 is a Square D 3 pole, 70 amp, 240VAC PowerPact Q molded case circuit breaker with thermal magnetic trip protection.This circuit breaker features a 10kA interrupting rating at 120/208/240VAC, unit mount lug connection type, and long time plus instantaneous trip functions. It is UL, CSA, NEMA, and NOM approved and designed for reliable overcurrent protection in AC systems. The breaker is mercury and PVC free, with line and load side lug terminals.

• Amperage: 70 A
• Voltage: 240 VAC
• Poles: 3
• Frame Type: QBL (PowerPact Q)
• Interrupt Rating: 10kAIC at 120/208/240 VAC
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Mounting Type: Unit mount lug
• Connection Type: Feed-Thru
• Certifications: UL, CSA, NEMA, NOM
• Terminal Connection: Line and Load Side Lug
• Breaker Feature: Mercury Free, PVC Free
• Operating Temperature: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL32070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901442875
• GTIN : 00785901442875
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.729
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
