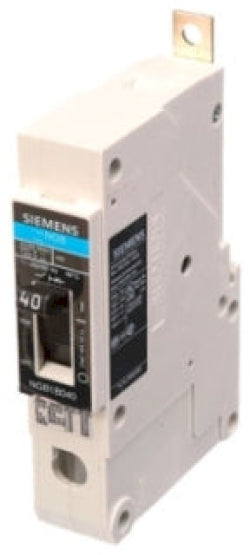

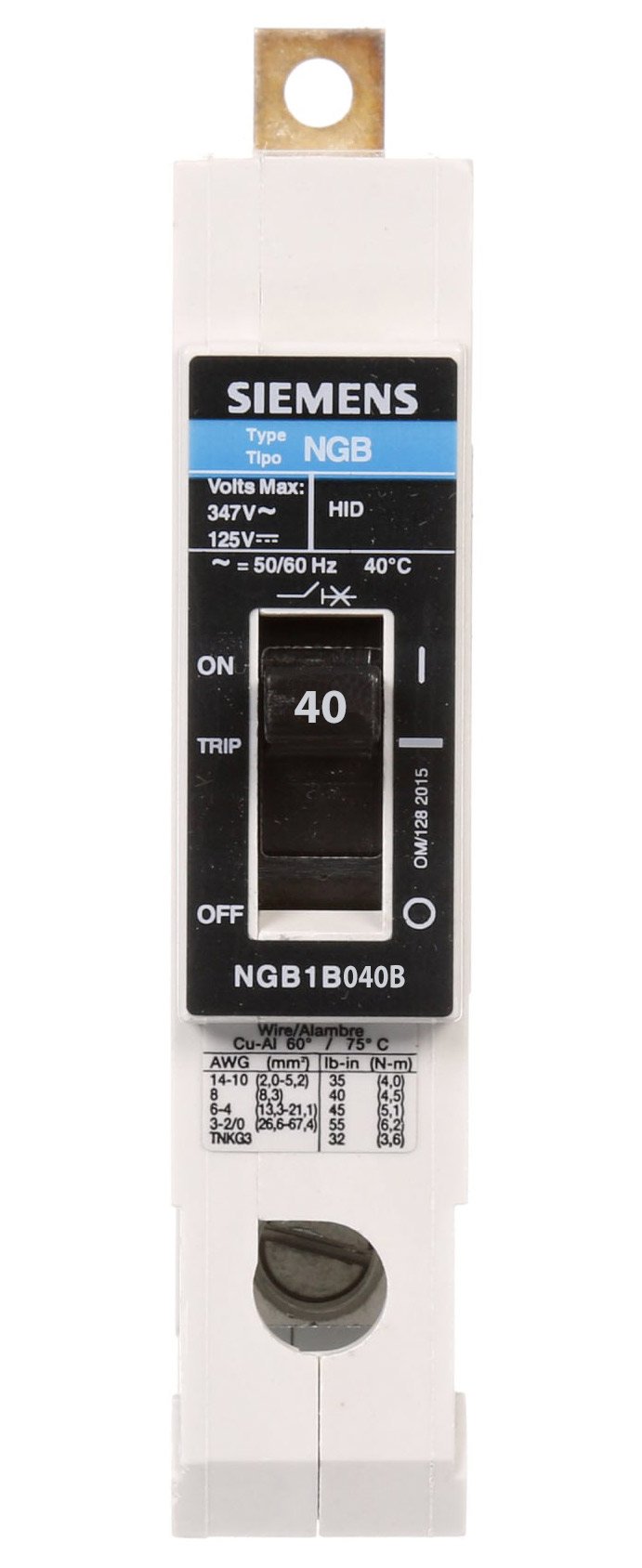

NGB1B040B - Siemens 40A 600V 1 Pole NGB Frame Bolt-On Circuit Breaker Thermal Magnetic

NGB1B040B

NGB1B040B is a Siemens Type NGB molded case circuit breaker rated at 40A, 1 pole, for 347VAC applications.This thermal magnetic circuit breaker features a 14 kA interrupt rating at 347VAC, bolt-on mounting, and NGB frame size. It supports wire sizes from 1/0-6 AWG copper or 2/0-4 AWG aluminum, with load lug terminals, and measures 5.4 in H x 1 in W x 3.3 in D.Key Specifications

• Amperage Rating: 40 A
• Voltage Rating: 347 VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA at 347 VAC
• Frame: NGB
• Trip Unit: Thermal Magnetic
• Frequency: 50/60 Hz
• Phase: 1
• Wire Range: 1/0-6 AWG Cu, 2/0-4 AWG Al
• Dimensions: 5.4 in H x 1 in W x 3.3 in D
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NGB1B040B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGB
• Voltage : 347
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 25kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : GG Frame
• Temp Rating : -13¡F-158¡F
• Protection : Thermal Magnetic

Product Data

• UPC : 783643414006
• GTIN : 00783643414006
• Country of Origin : Mexico
• Weight : 0.88
• Certification : UL, IEC
