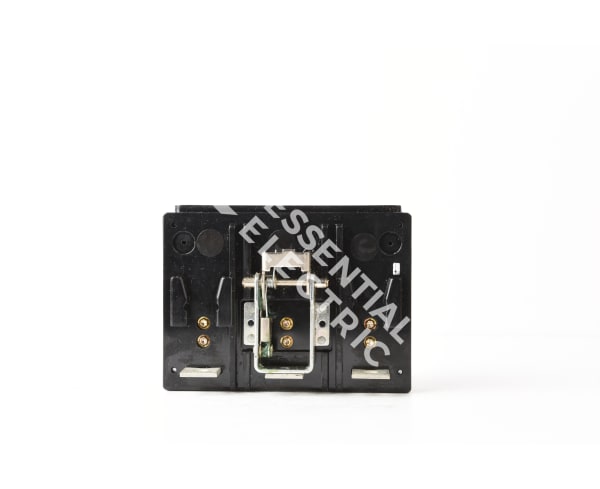

KT3200T - Cutler Hammer 200A 600V 3-Pole Thermal Magnetic Trip Unit for Series C Circuit Breakers

KT3200T

KT3200T is a Cutler Hammer thermal magnetic trip unit designed for Series C molded case circuit breakers. It provides reliable protection with a 200 amp rating and 3 poles.

This trip unit is compatible with multiple frame types including DK, KD, KDB, HKD, HKDDC, HKDB, KDC, CKD, CHKD, and KG. It features long-time and instantaneous (LI) trip functions and is rated for 600 volts AC. The unit is bolt-on mounted and UL listed for safety compliance. Dimensions are 5.3" x 4.3" x 7.1" and it weighs approximately 1.3 lbs.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 480 VAC
• Series/Frame: Series C, Frames DK, KD, KDB, HKD, HKDDC, HKDB, KDC, CKD, CHKD, KG
• Trip Unit Type: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL Listed, CSA, CE
• Dimensions (HxWxD): 5.3" x 4.3" x 7.1"
• Weight: 1.3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KT3200T
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Series C
• Type : C
• Voltage : 600VAC
• Amperage : 200
• Poles : 3
• Functions : LI - Long Time and Instantaneous Trip
• Frame Size : 200
• Amperage Maximum : 200
• Amperage Minimum : 200
• Protection : Thermal Magnetic
• Compatible Frames : KT

Product Data

• UPC : 786679266045
• GTIN : 00786679266045
• Country of Origin : Dominican Republic
• Dimensions : 7.1 in x 5.3 in x 4.3 in (Length/Depth x Height x Width)
• Weight : 1.3 lb
• Certification : UL
