JT3090T - Cutler Hammer 90A 600VAC 3-Pole Thermal Magnetic Trip Unit Series C

JT3090T

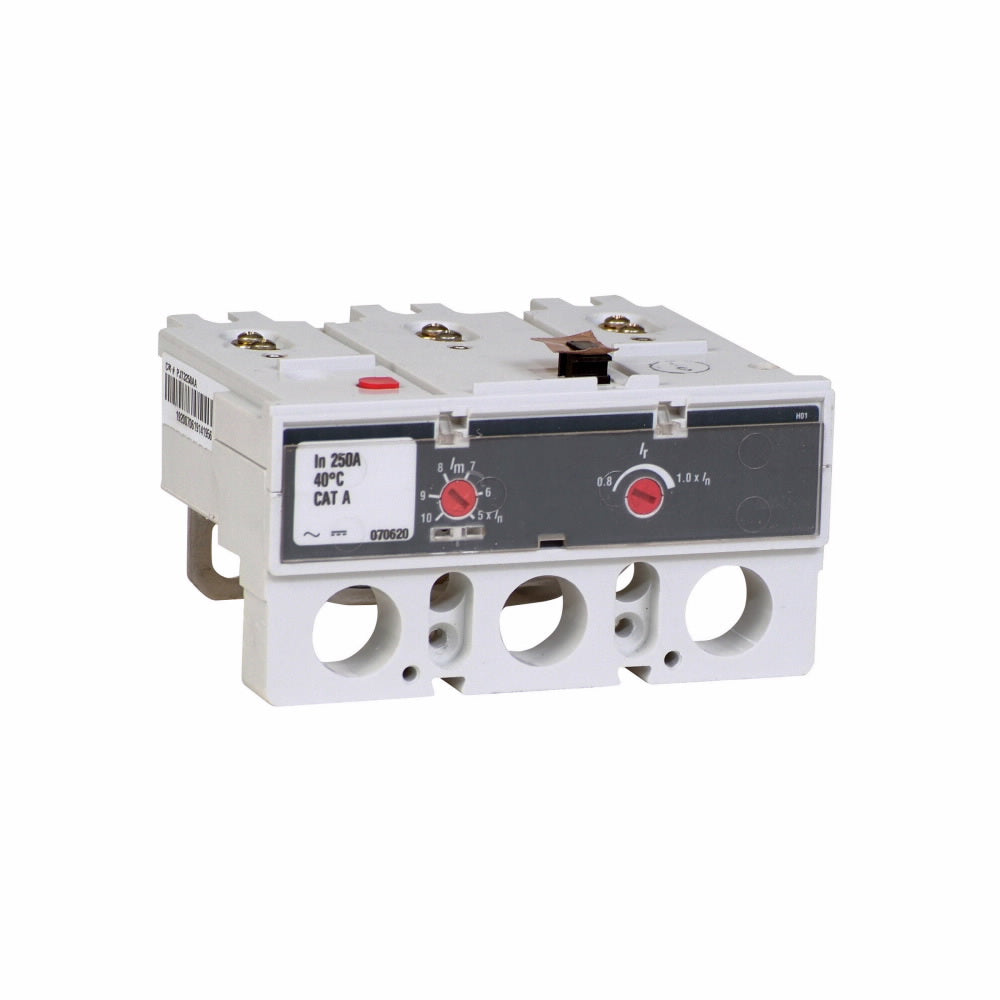

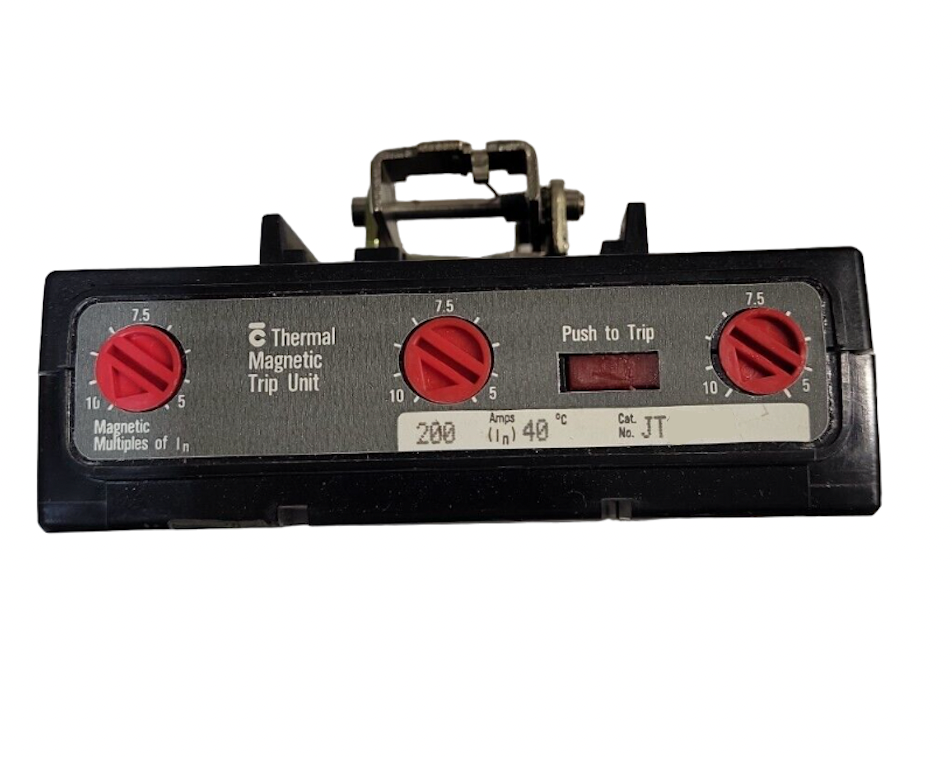

JT3090T is a Cutler Hammer Series C thermal magnetic trip unit designed for 3-pole molded case circuit breakers with a 90 ampere rating and 600VAC maximum voltage.This trip unit features fixed thermal and adjustable magnetic trip settings, providing reliable long-time and instantaneous protection. It is compatible with Cutler Hammer J frame molded case circuit breakers such as HJDDC, JD, HJD, and JDC types. The unit supports a magnetic trip adjustment range of 5 to 10 times the continuous ampere rating and meets industry standards for safety and performance.

• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: Series C
• Poles: 3
• Amperage: 90A
• Voltage Rating: 600VAC max
• Trip Type: Thermal Magnetic (fixed thermal, adjustable magnetic)
• Mounting Type: Accessory trip unit for molded case breakers
• Magnetic Trip Adjustment: 5-10 times continuous amp rating
• Compatible Breaker Frames: HJDDC, JD, HJD, JDC
• Dimensions: 5.4" x 4.3" x 7"
• Weight: 1.3 lbs
• Certifications: Meets applicable industry standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JT3090T
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Series C
• Type : C
• Voltage : 600VAC
• Amperage : 90
• Poles : 3
• Functions : Long Time and Instantaneous Trip
• Amperage Maximum : 90
• Amperage Minimum : 90
• Protection : Thermal Magnetic
• Compatible Frames : JT

Product Data

• UPC : 786679404102
• GTIN : 00786679404102
• Country of Origin : Dominican Republic
• Dimensions : 7 in x 5.4 in x 4.3 in (Length/Depth x Height x Width)
• Weight : 1.3
• Certification : UL
