JD3175W - Eaton 3-Pole 175A 600V Molded Case Circuit Breaker

JD3175W

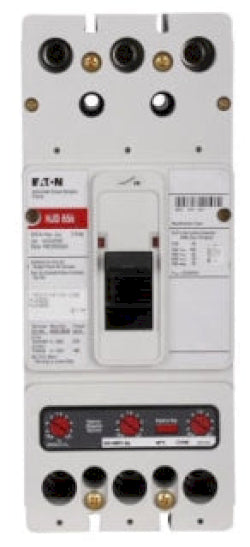

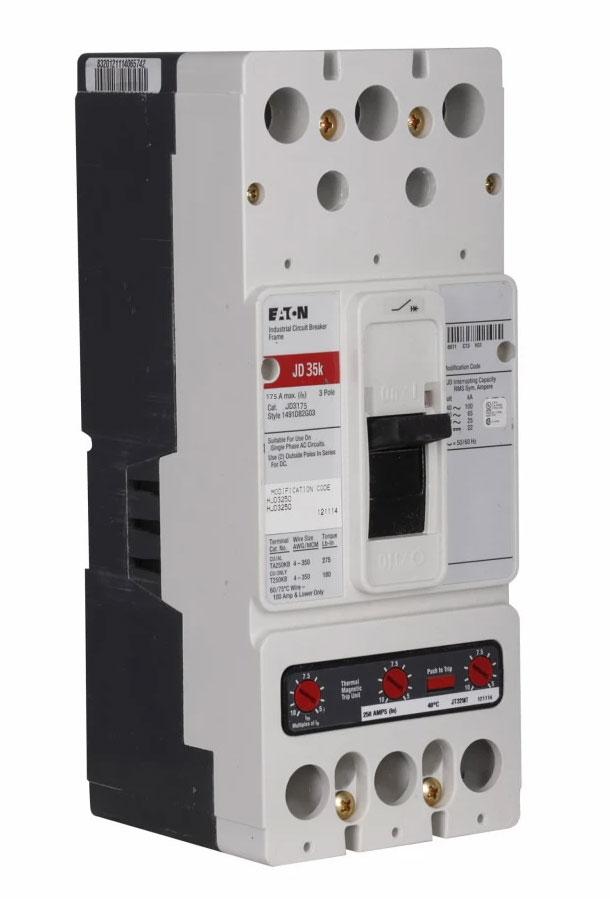

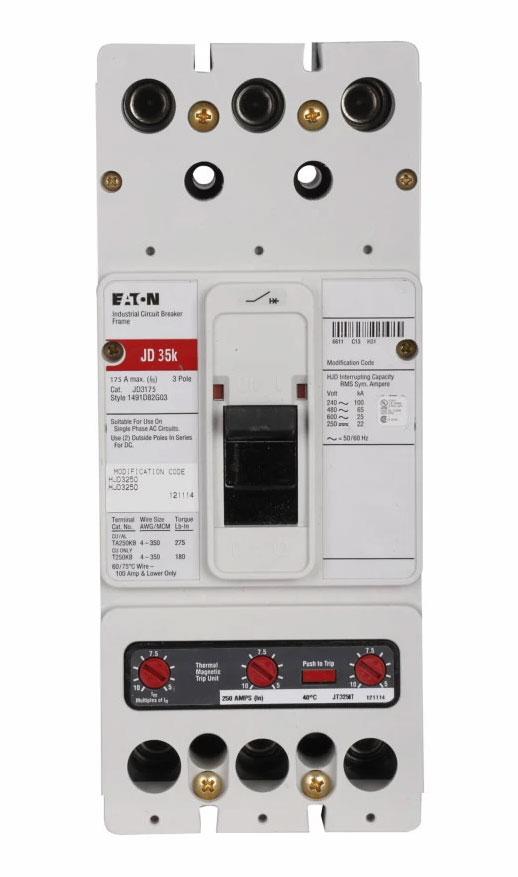

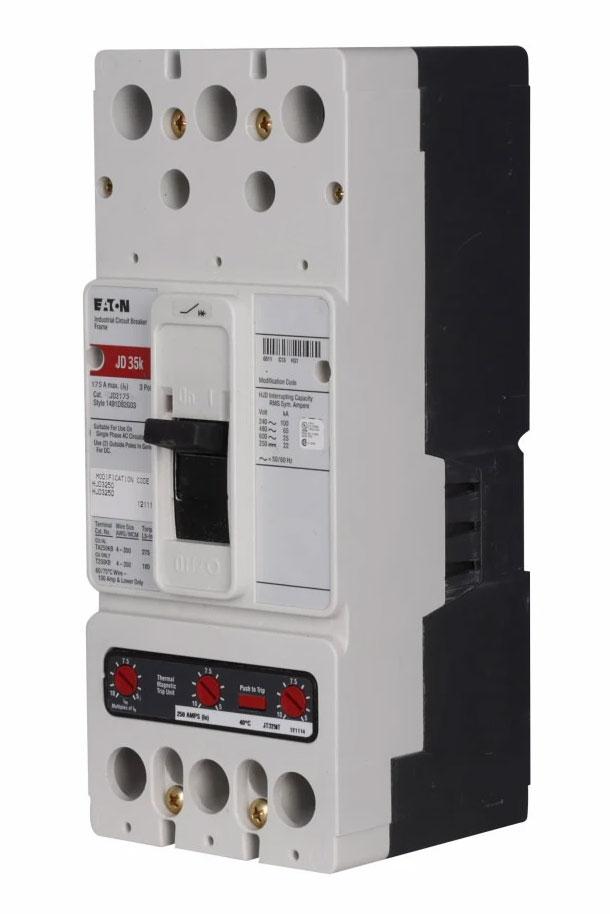

JD3175W is an Eaton Series C complete molded case circuit breaker designed for three-phase power distribution applications.

This J-frame breaker features fixed thermal and fixed magnetic trip protection with a T186 trip unit. The JD type construction provides reliable overcurrent protection in industrial and commercial electrical systems. Bolt-on connection allows for straightforward installation in compatible panelboards and enclosures.

• Amperage Rating: 175 A
• Voltage Rating: 600 Vac, 250 Vdc
• Poles: 3
• Phase: 3-Phase
• Circuit Breaker Type: JD
• Frame Type: J-Frame
• Trip Type: Fixed Thermal/Fixed Magnetic (T186)
• Connection: Bolt-On
• Interrupt Rating: 35 kAIC at 480 VAC, 65 kAIC at 240 VAC
• Series: C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: JD3175W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679032831
• GTIN : 00786679032831
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.55
• Certification : UL Listed
