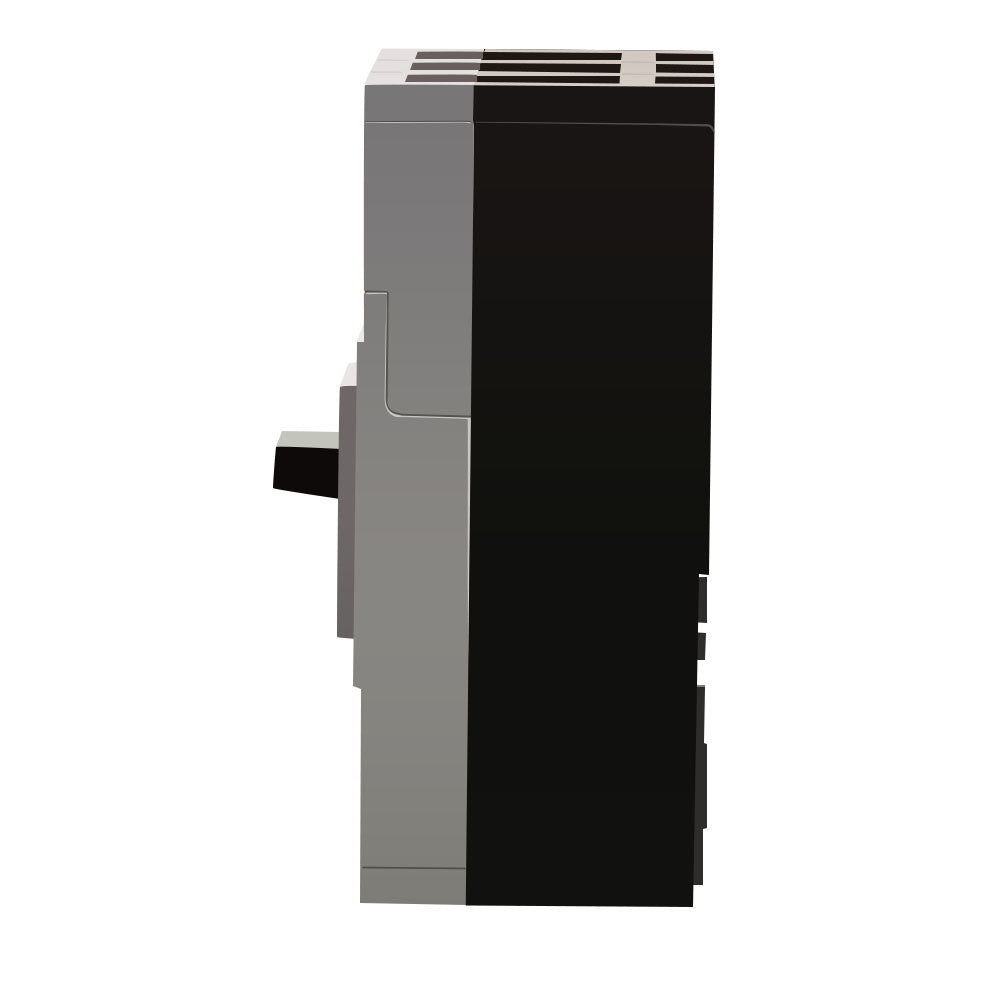

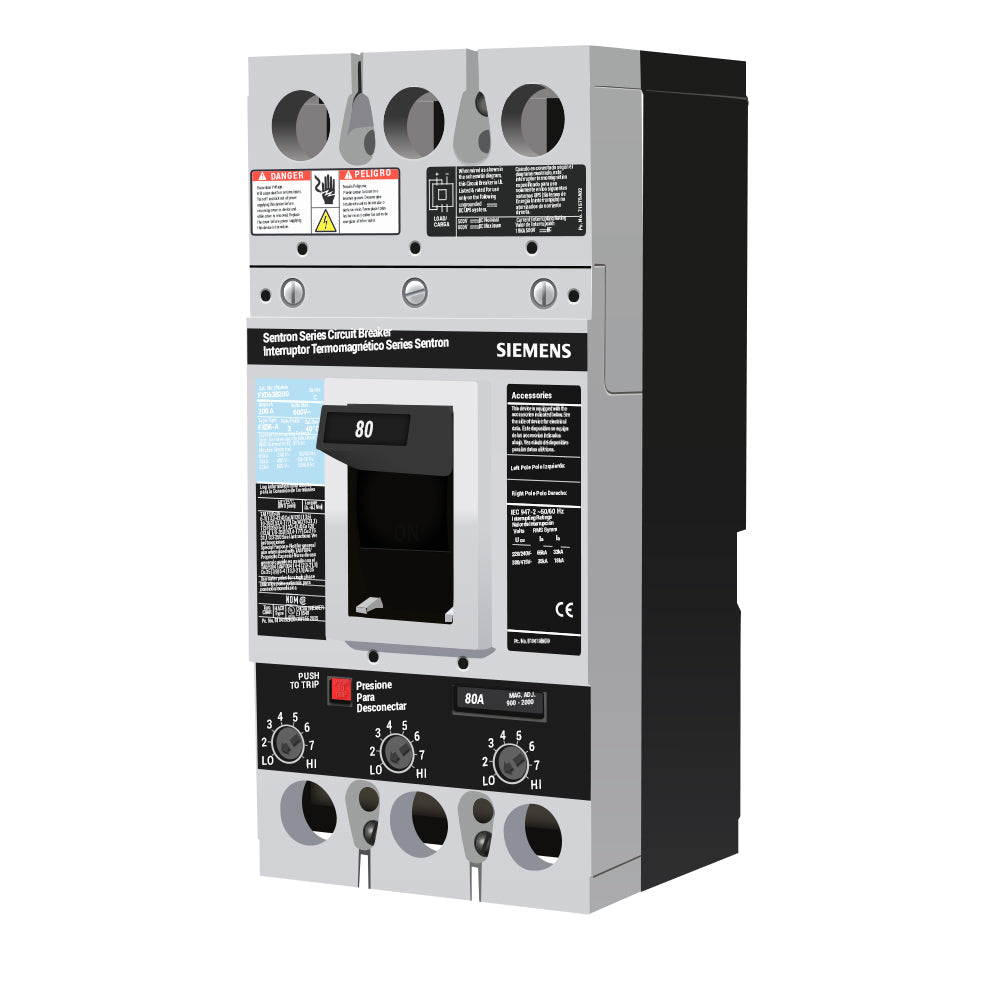

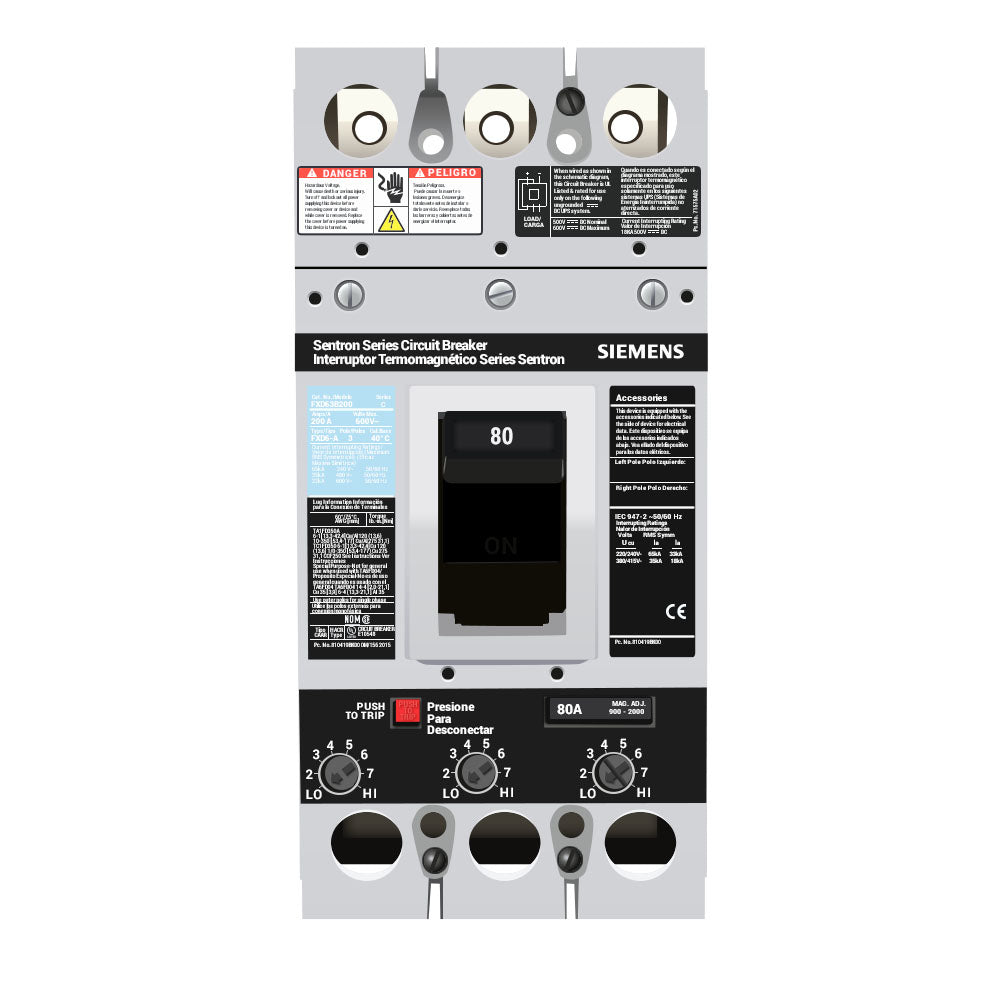

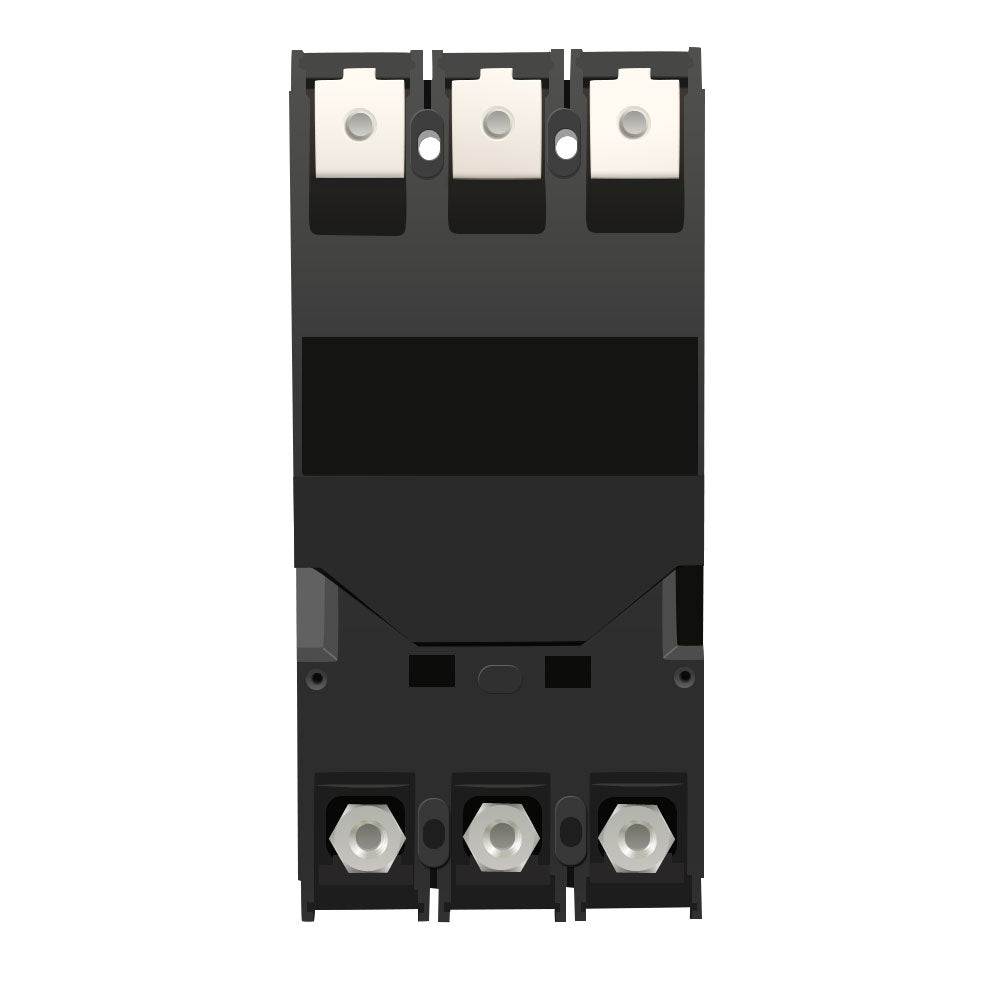

FXD63B080L - Siemens 80A 600V 3 Pole Molded Case Circuit Breaker Bolt-On Sentron Series

FXD63B080L

FXD63B080L is a Siemens 3 pole molded case circuit breaker rated for 80 amps and 600 volts, designed for bolt-on mounting in electrical distribution systems.FXD63B080L belongs to the Siemens Sentron Series and features thermal magnetic trip units for reliable circuit protection. It supports three-phase power applications and is UL listed for reverse fed installations. The breaker has a standard interrupting capacity suitable for industrial and commercial use.

• Amperage: 80 Amps
• Voltage Rating: 600 Volts
• Poles: 3
• Mounting Type: Bolt-On
• Series/Frame: Sentron FXD
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 22kA to 35kA (typical at 480V)
• Phase: 3
• UL Listed for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FXD63B080L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005785
• GTIN : 00783643005785
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.818
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
