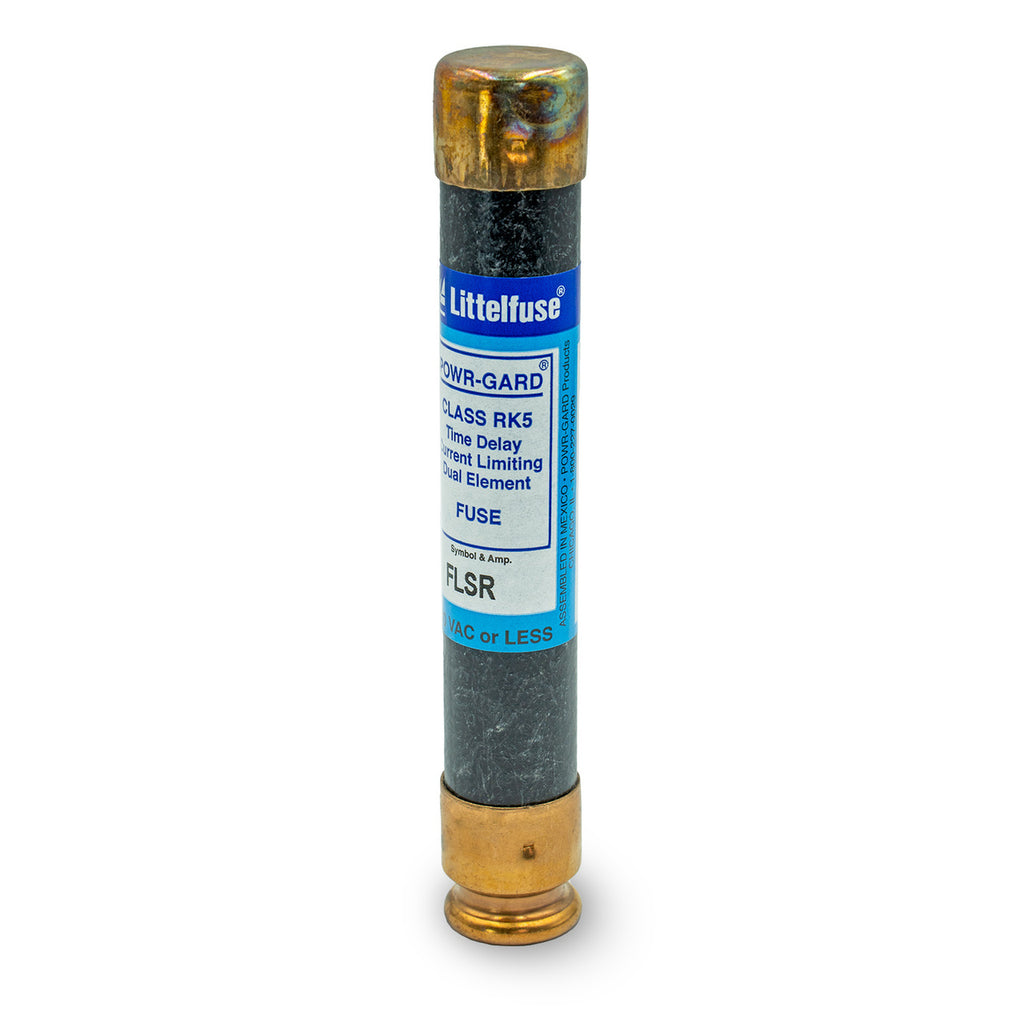

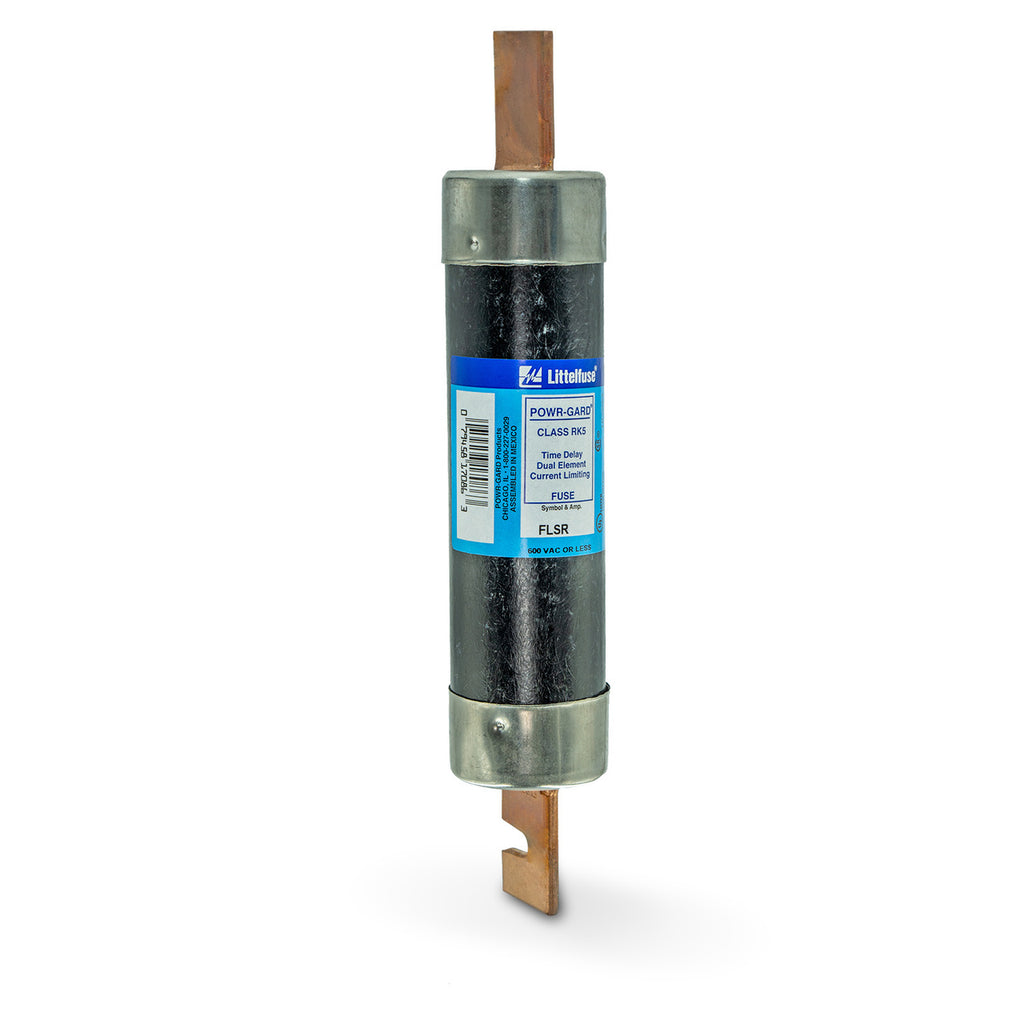

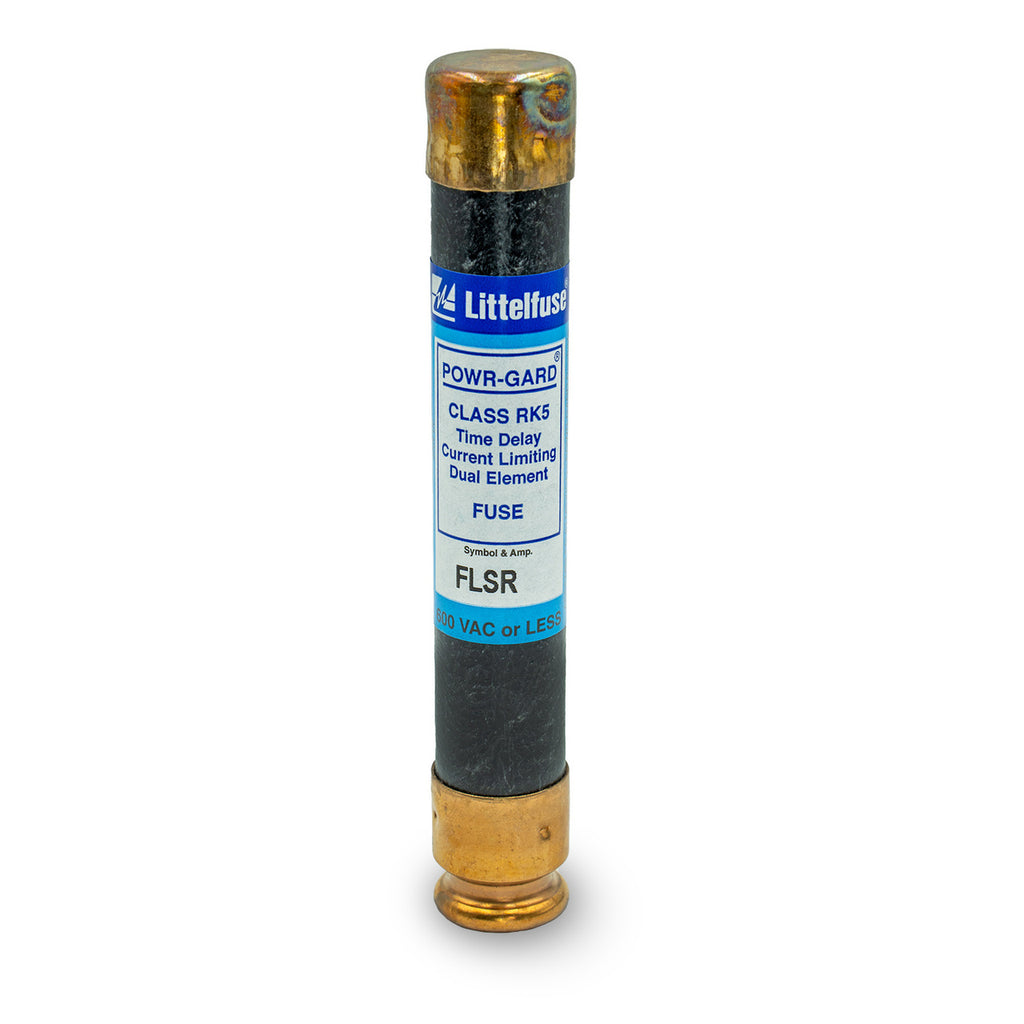

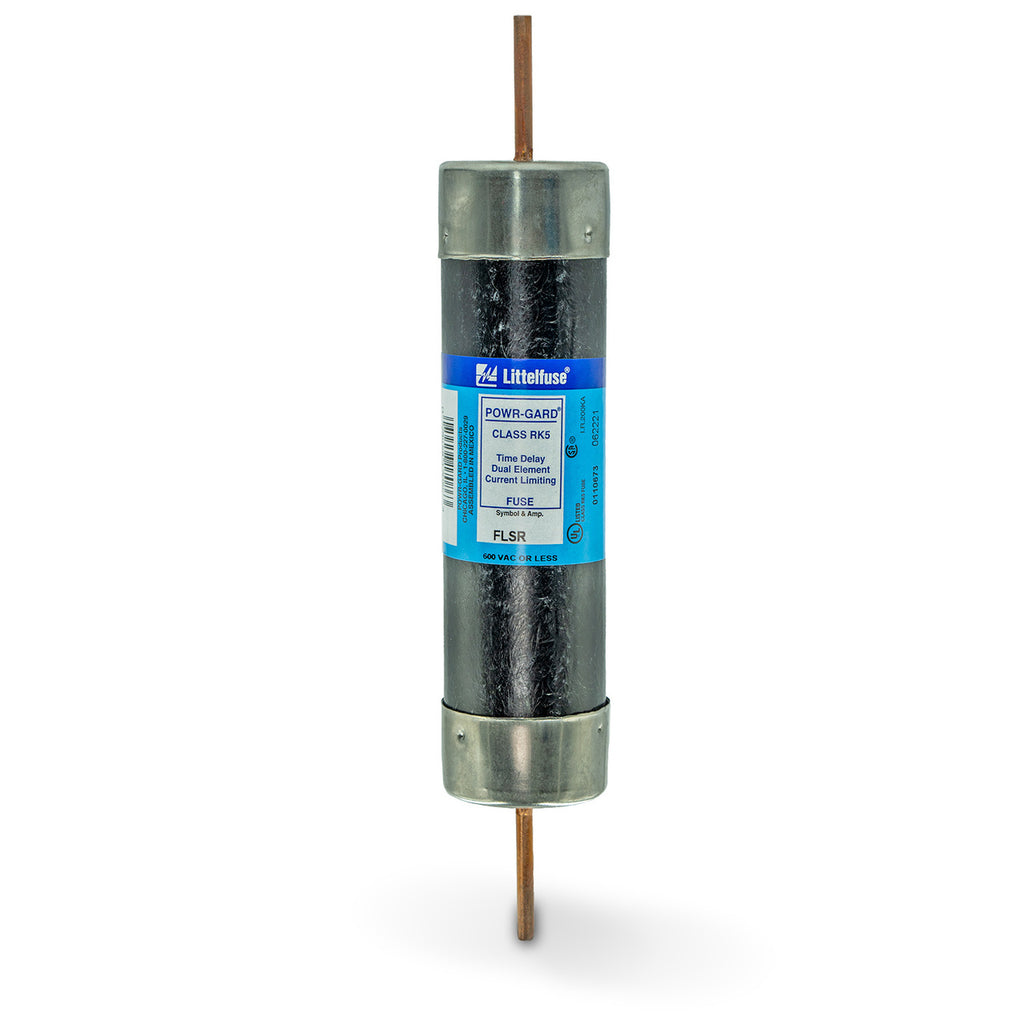

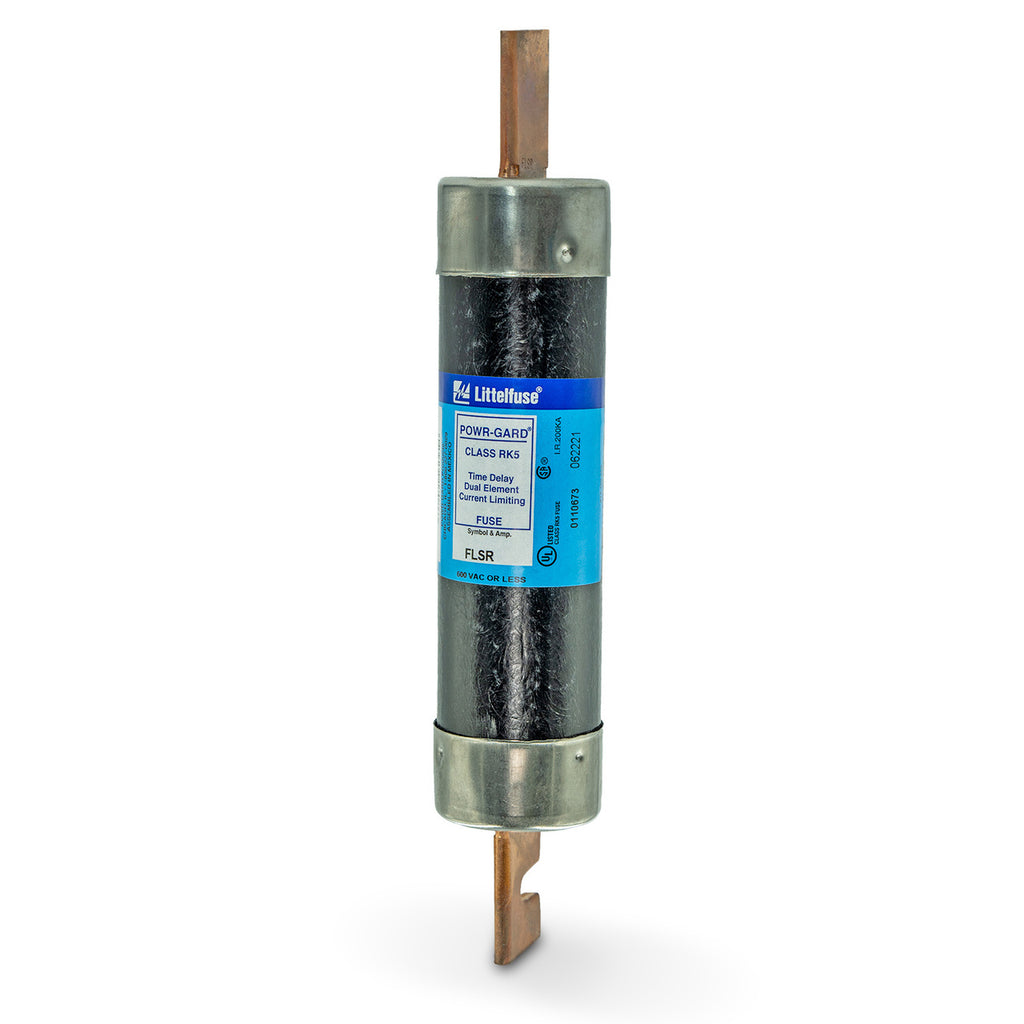

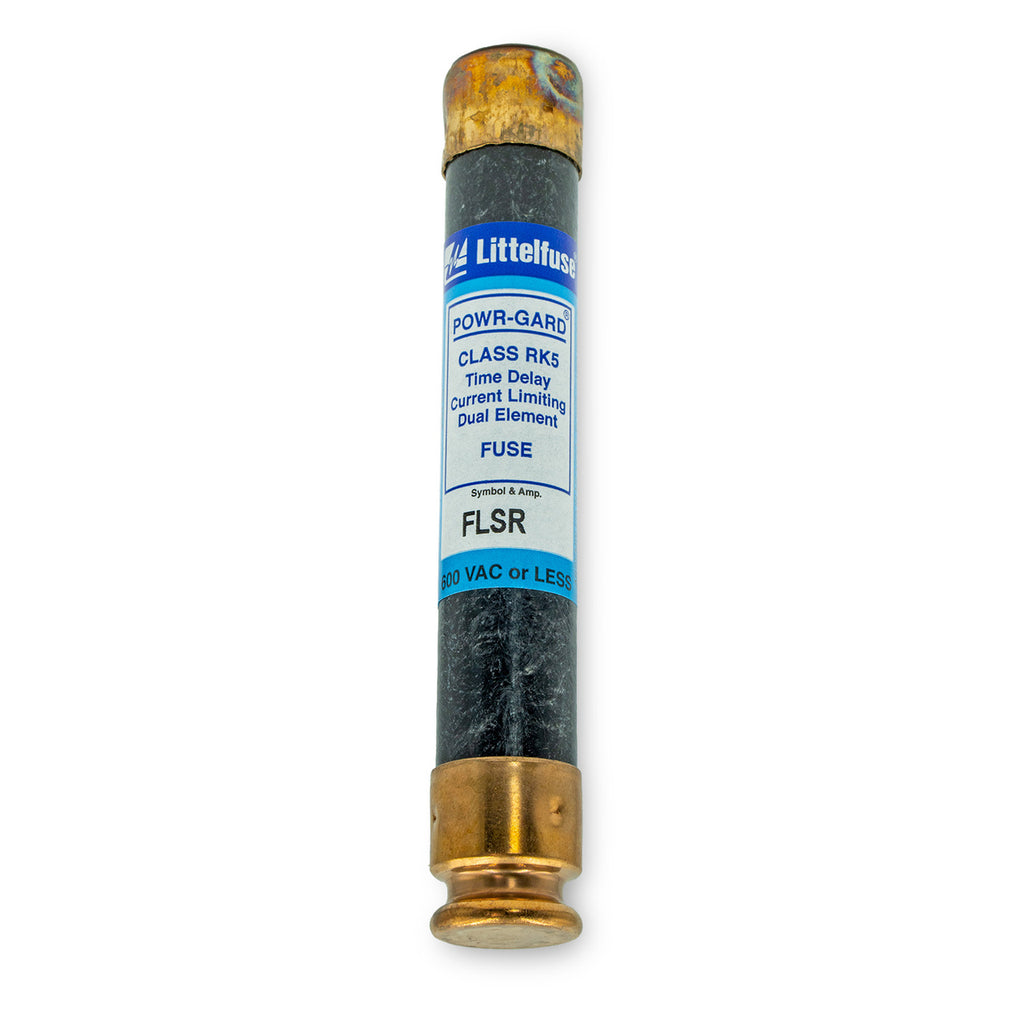

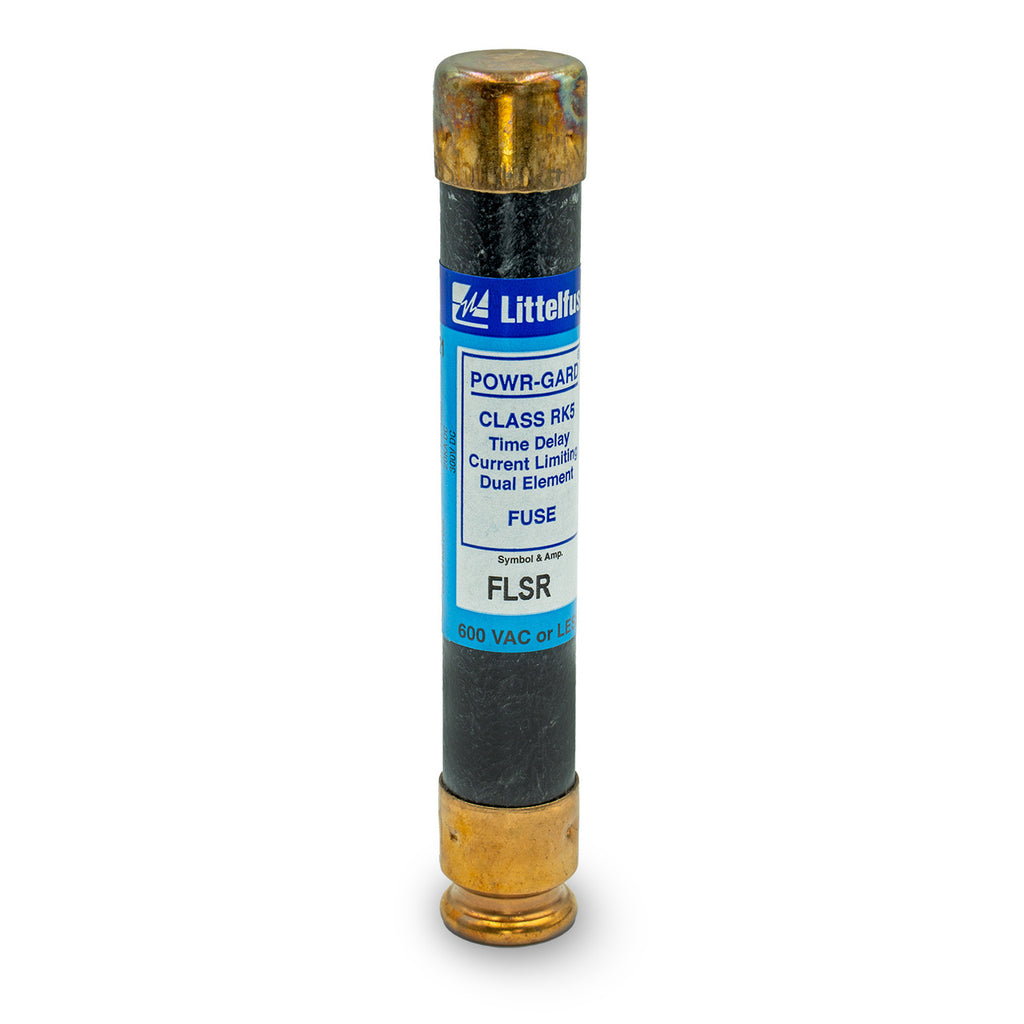

FLSR150 - Littelfuse 150A 600VAC Class RK5 Time Delay Fuse Knife-Blade Style

FLSR150

FLSR150 is a Littelfuse Class RK5 time delay fuse designed for reliable circuit protection in general purpose and industrial applications. This dual-element fuse features a knife-blade style construction and offers advanced short-circuit and overload protection. The FLSR150 fuse is rated for 150 amps continuous current and 600 volts AC, with a DC voltage rating of 300 volts. It is a time delay (slow blow) fuse, providing protection for circuits subject to temporary current surges. The fuse is current limiting and is suitable for use in fuse blocks, clips, or holders. It is UL Listed and CSA Certified for safety and compliance.

• Part Number: FLSR150
• Manufacturer: Littelfuse
• Amperage Rating: 150A
• AC Voltage Rating: 600V
• DC Voltage Rating: 300V
• Fuse Class: Class RK5
• Interrupting Rating: 200,000A @ 600VAC, 20,000A @ 300VDC
• Mounting Type: Fuse Block / Clip / Holder
• Construction: Knife-Blade
• Element Type: Dual Element
• Opening Type: Time Delay (Slow Blow)
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR150
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 600
• Amperage : 150
• AIC rating : 200kA@600V
• Diameter : 1.84
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945817086
• GTIN : 00079458170863
• Country of Origin : Mexico
• Dimensions : x 9-5/8 in x
• Weight : 1
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
