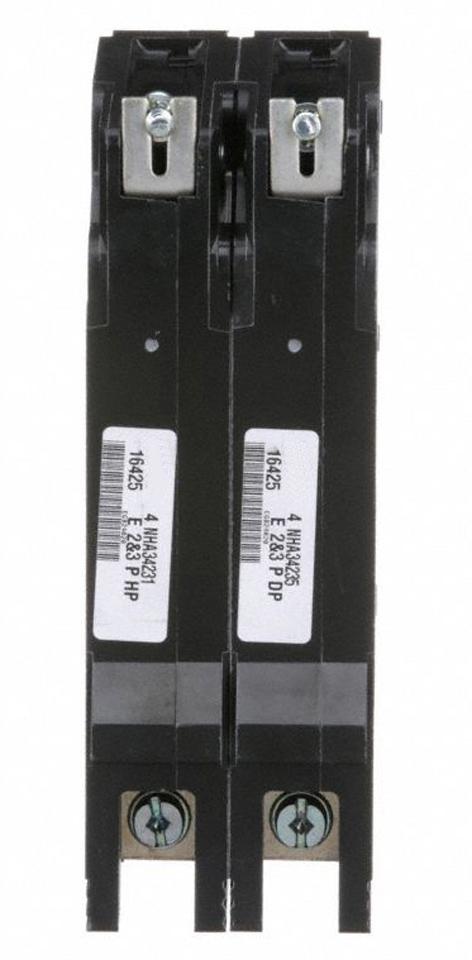

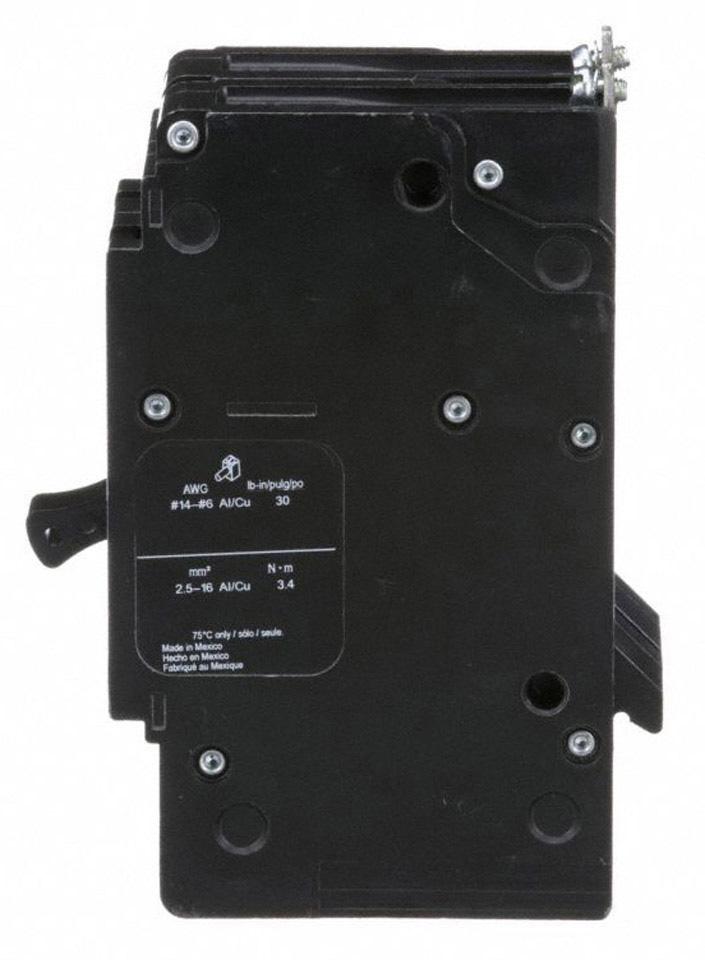

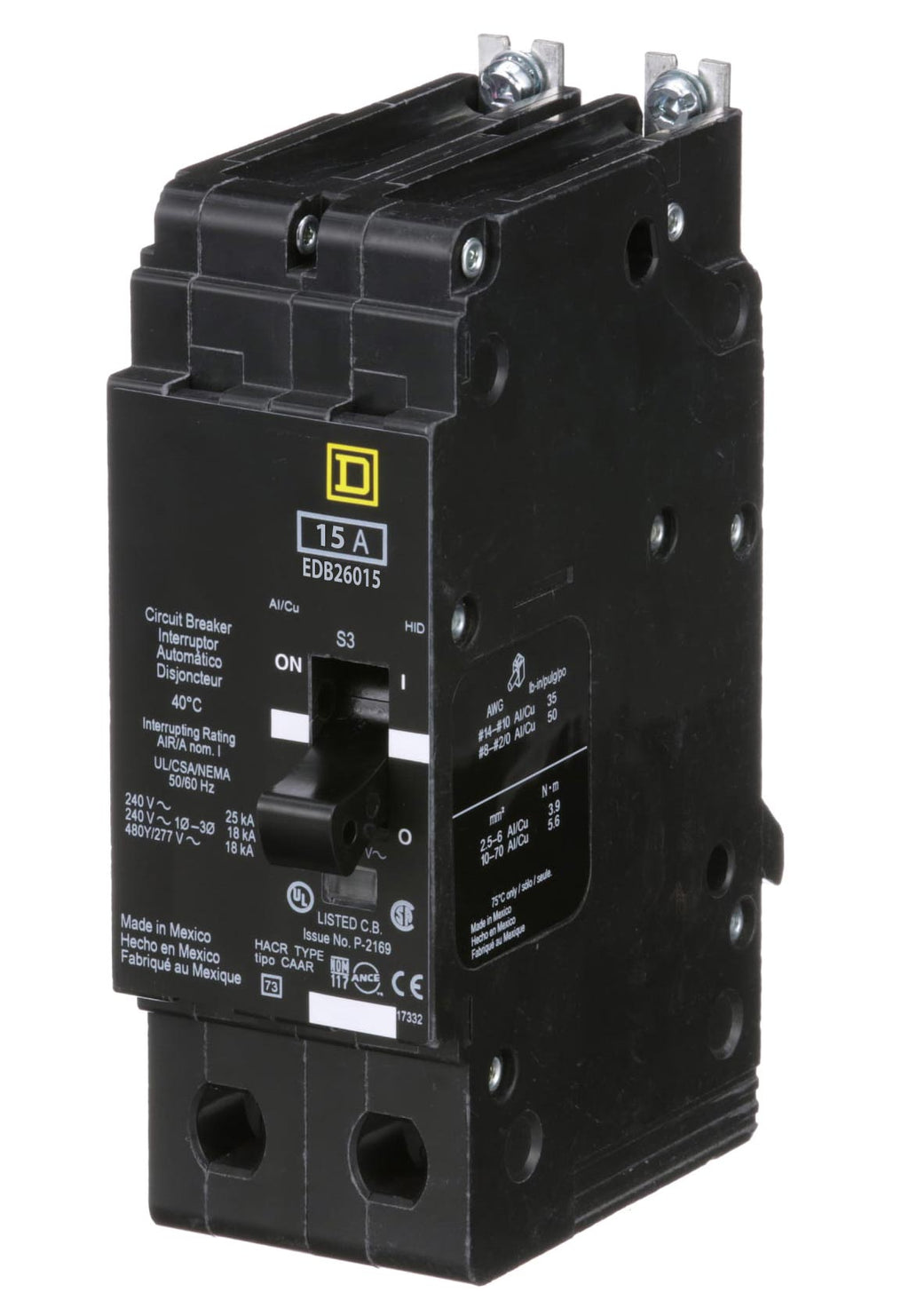

EDB26015 - Square D 15 Amp 600Y/347V 2 Pole Bolt-On Molded Case Circuit Breaker E-Frame

EDB26015

EDB26015 is a Square D 2 pole molded case circuit breaker rated for 15 amps and 600Y/347 volts AC with Bolt-On mounting.This EDB series breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has a 14kA interrupting rating at 600Y/347 VAC and is designed for use in Square D NF panelboards. The breaker supports aluminum and copper wire connections from AWG 14 to AWG 6 and includes a trip indicator for local signaling.

• Amperage: 15 Amp
• Voltage: 600Y/347 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 14 kA at 600Y/347 VAC
• Series/Frame: EDB E-Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Connection: Aluminum and Copper Lugs
• Application: HID-Rated / HACR-Rated
• Phase: Single
• Certifications: cULus
• Wire Gauge: AWG 14 to AWG 6

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901234500
• GTIN : 00785901234500
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.619
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
