Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CHB215GF

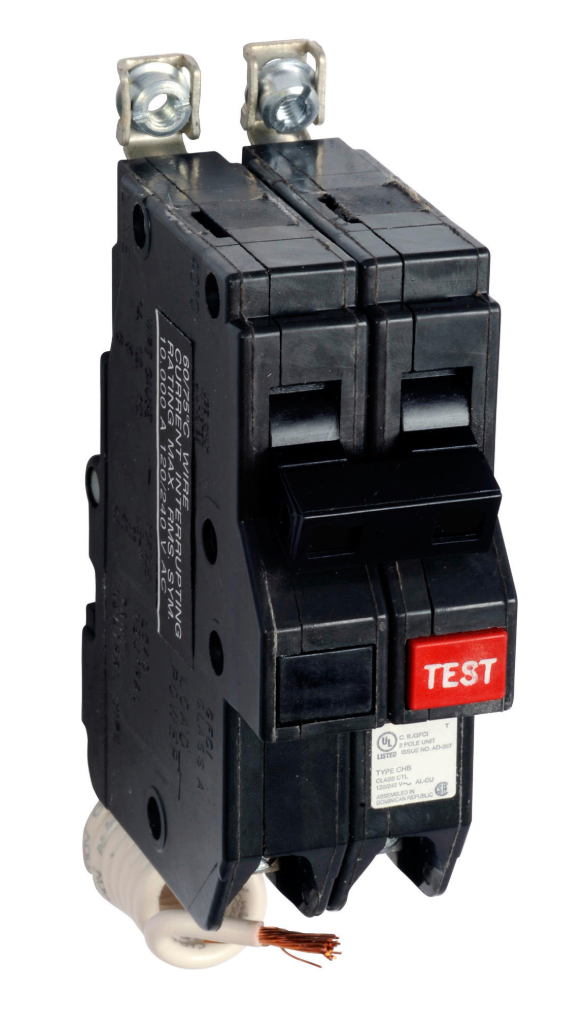

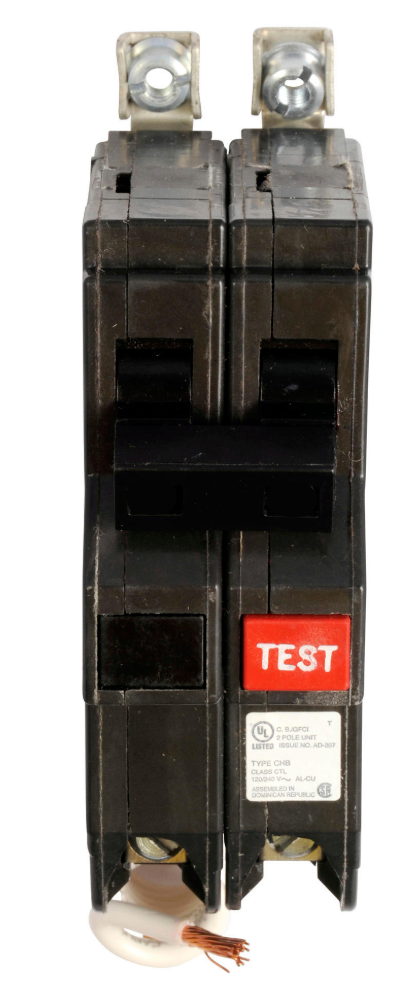

CHB215GF is a 2 pole, 15 amp, 240 volt ground fault circuit breaker designed for reliable protection in residential and commercial applications. This Cutler Hammer breaker features a bolt-on mounting style and provides Class-A ground fault protection with a 10kA interrupting rating at 240V. It is built for use in compatible load centers and offers long time and instantaneous trip functions for enhanced safety. The CHB215GF is a molded case circuit breaker with thermal magnetic protection, suitable for 120/240VAC systems. It is UL listed and CSA certified, ensuring compliance with industry standards. The breaker supports wire gauges from 14 to 6 AWG and is rated for operation up to 40°C.
- Part Number: CHB215GF
- Manufacturer: Cutler Hammer
- Amperage: 15A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10kAIC@240V
- Series/Frame: CHB
- Protection Type: Thermal Magnetic
- Trip Functions: Long Time and Instantaneous
- Certifications: UL Listed, CSA Certified
- Wire Gauge: 14-6 AWG
Specifications
- Part Number: CHB215GF
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CHB Series
- Type : CHB
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782113296166
- GTIN : 00786676025676
- Weight : 2
