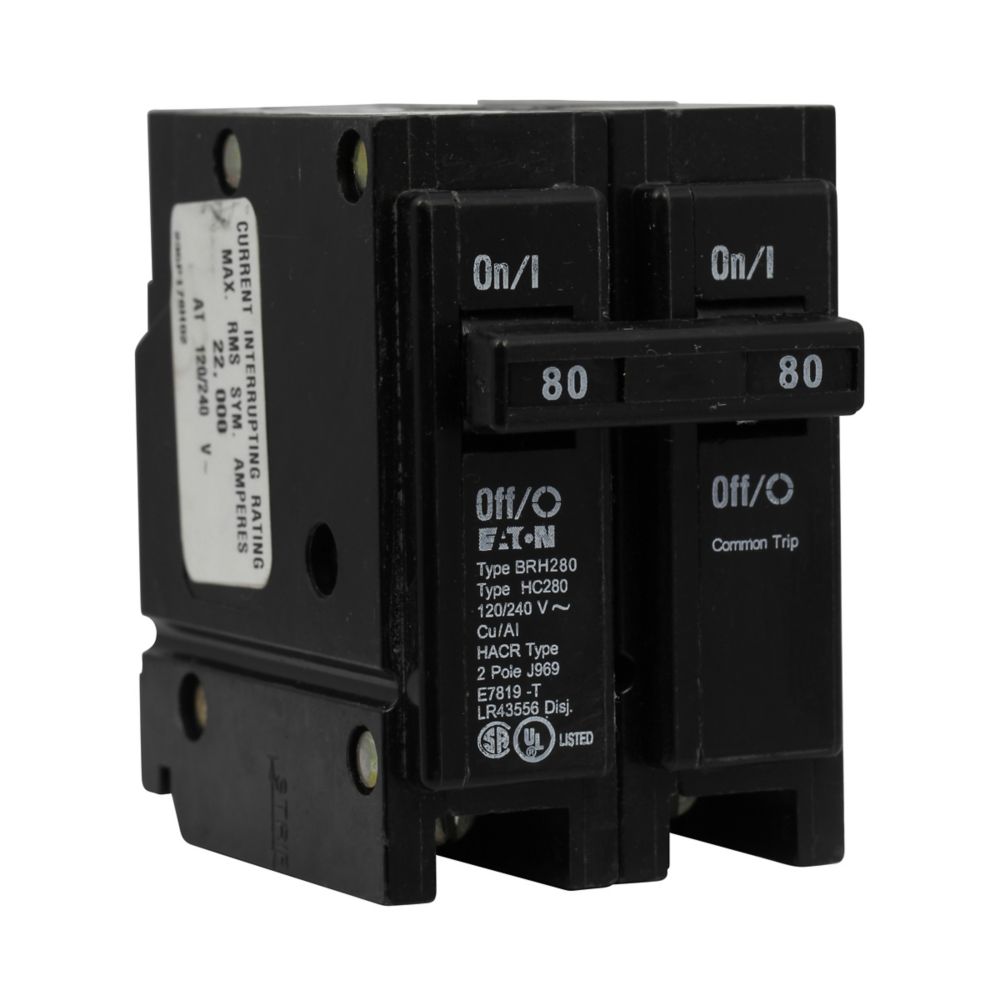

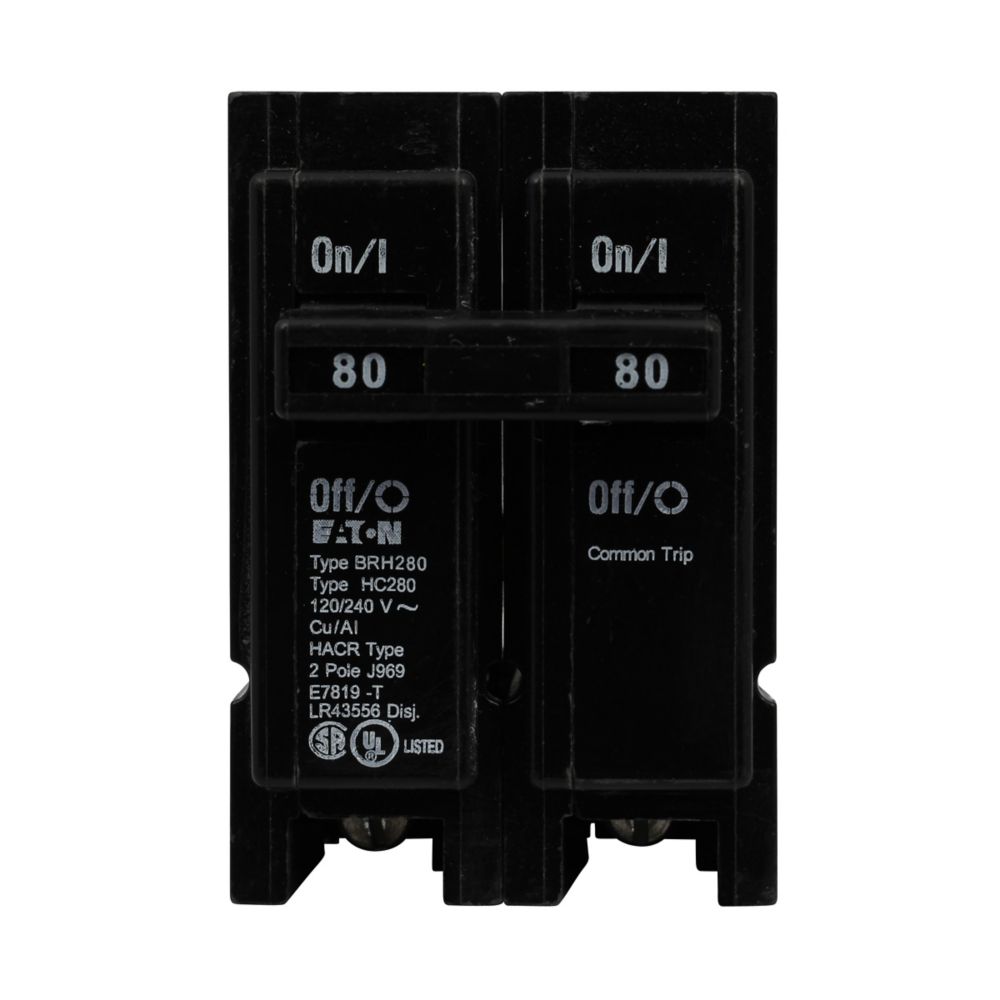

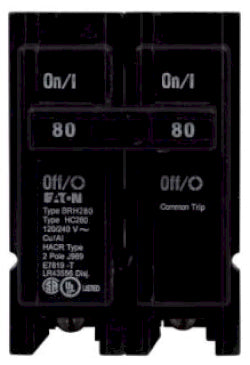

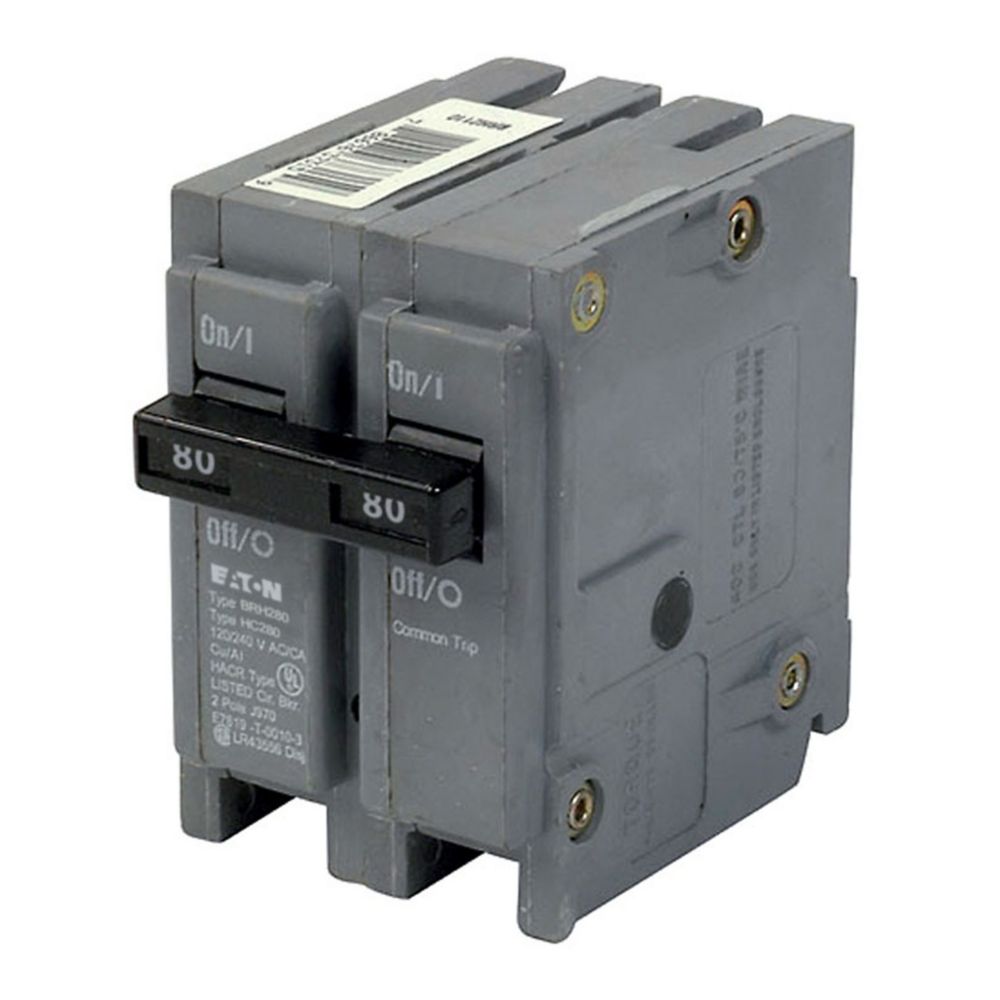

BRH280 - Cutler Hammer 80 Amp 2-Pole 120/240V 22kAIC Type BR Plug-On Thermal Magnetic Circuit Breaker

BRH280

BRH280 is a Cutler Hammer 80 Amp, 2-pole, 120/240V thermal magnetic circuit breaker designed for Type BR loadcenters.

This plug-on circuit breaker features a common trip mechanism, 22 kAIC interrupt rating, and is suitable for both copper and aluminum wire sizes #4-1/0 AWG. It is UL 490 certified and compliant with Federal Specifications Classification W-C376, ensuring reliable protection for residential and light commercial applications.

Key Specifications

• Part Number: BRH280
• Manufacturer: Cutler Hammer
• Amperage: 80 A
• Voltage: 120/240 V
• Poles: 2
• Mounting Type: Plug-on (Type BR 1-Inch)
• Interrupt Rating: 22 kAIC
• Series/Frame: BRH, Type BR
• Trip Unit: Thermal magnetic, common trip
• Wire Size: #4-1/0 AWG Cu/Al
• Certifications: UL 490, Federal Specifications Classification W-C376
• Dimensions: 3" x 3" x 2"
• Weight: 0.6 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH280
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782114372180
• GTIN : 00782114372180
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : 4- 1/0 AWG
