BGL36100 - Schneider Electric PowerPact B Molded Case Circuit Breaker 100A 3 Pole 600Y/347VAC 18kA Thermal Magnetic

BGL36100

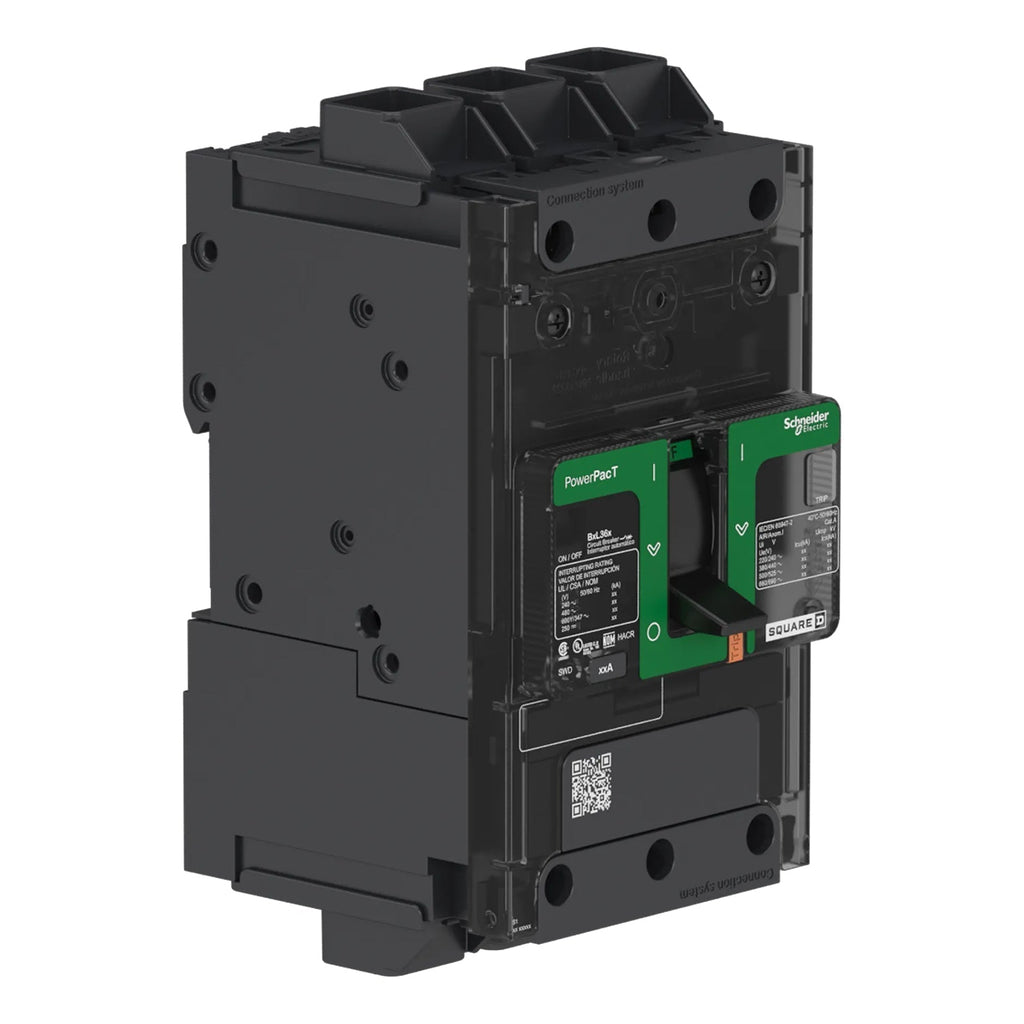

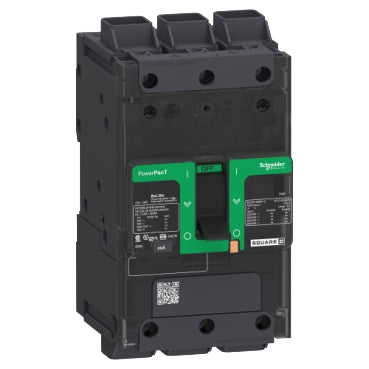

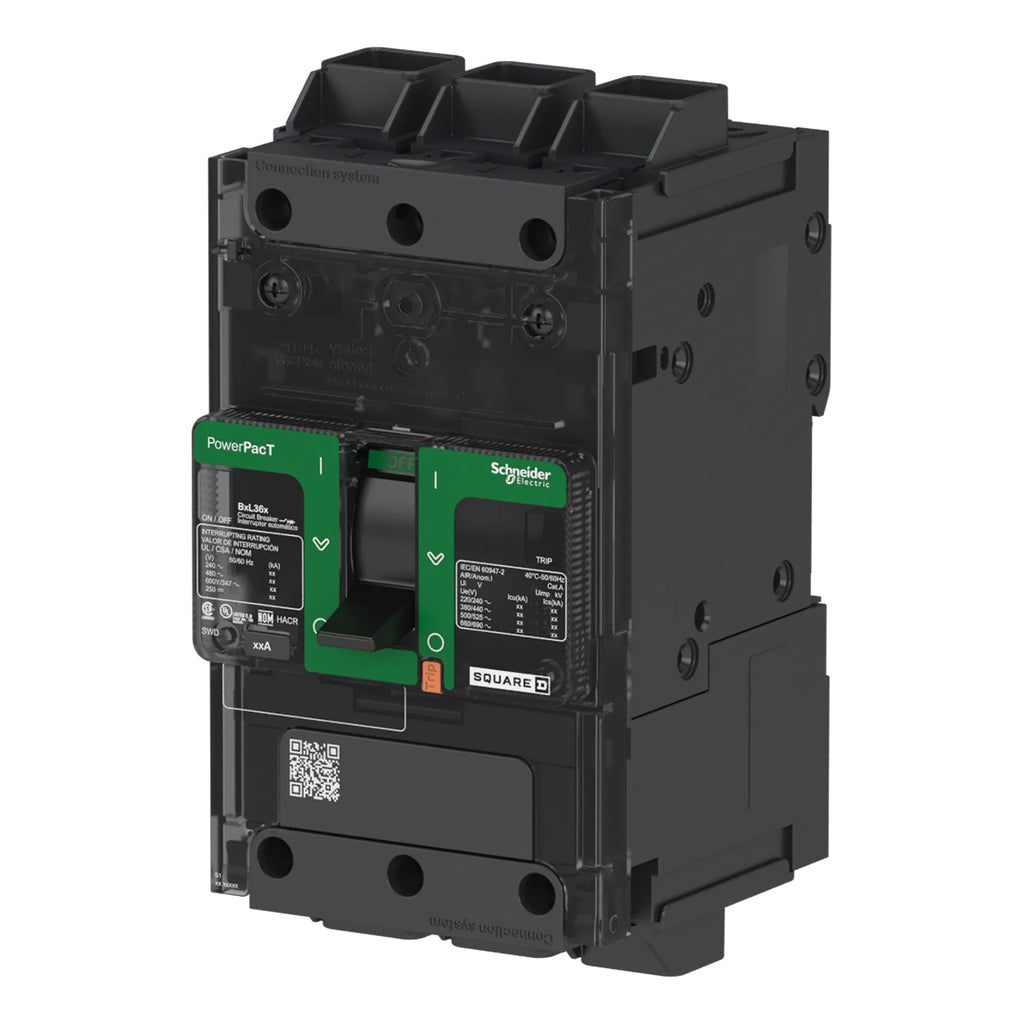

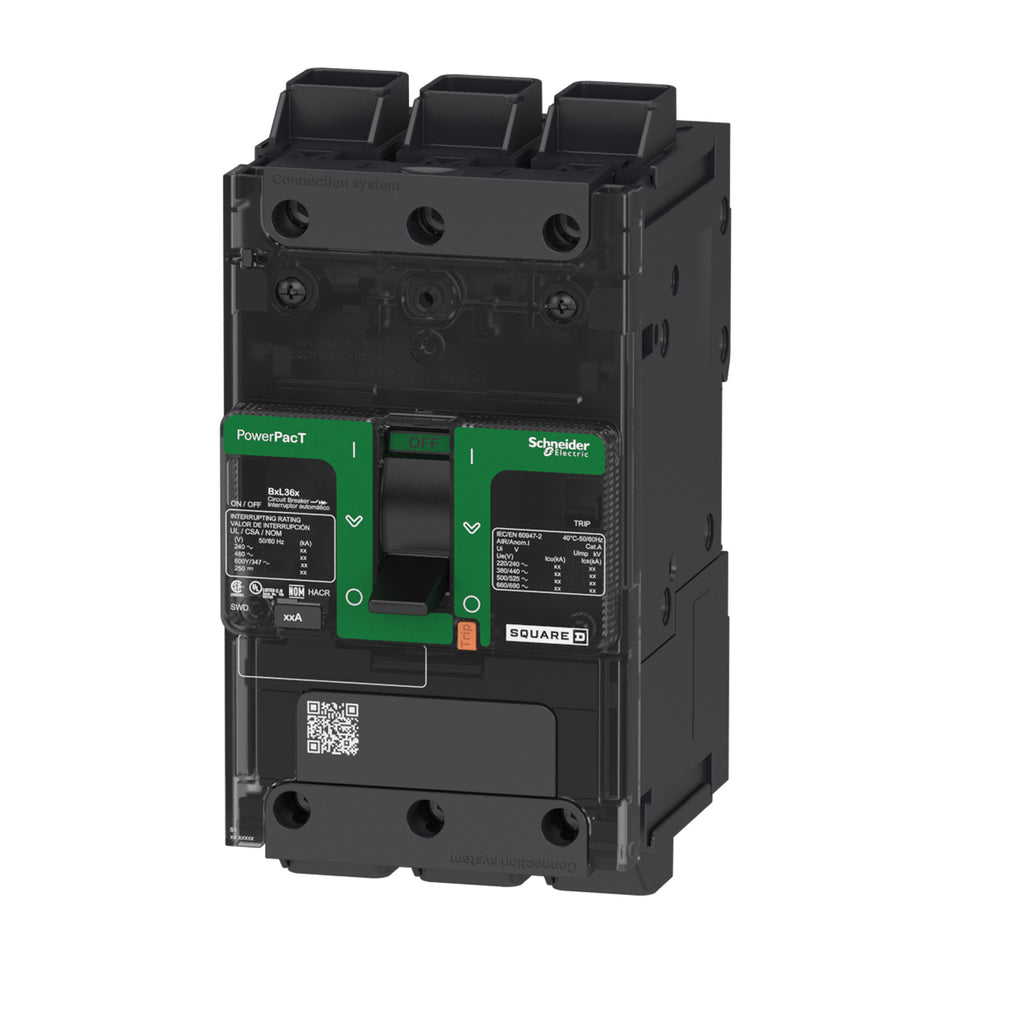

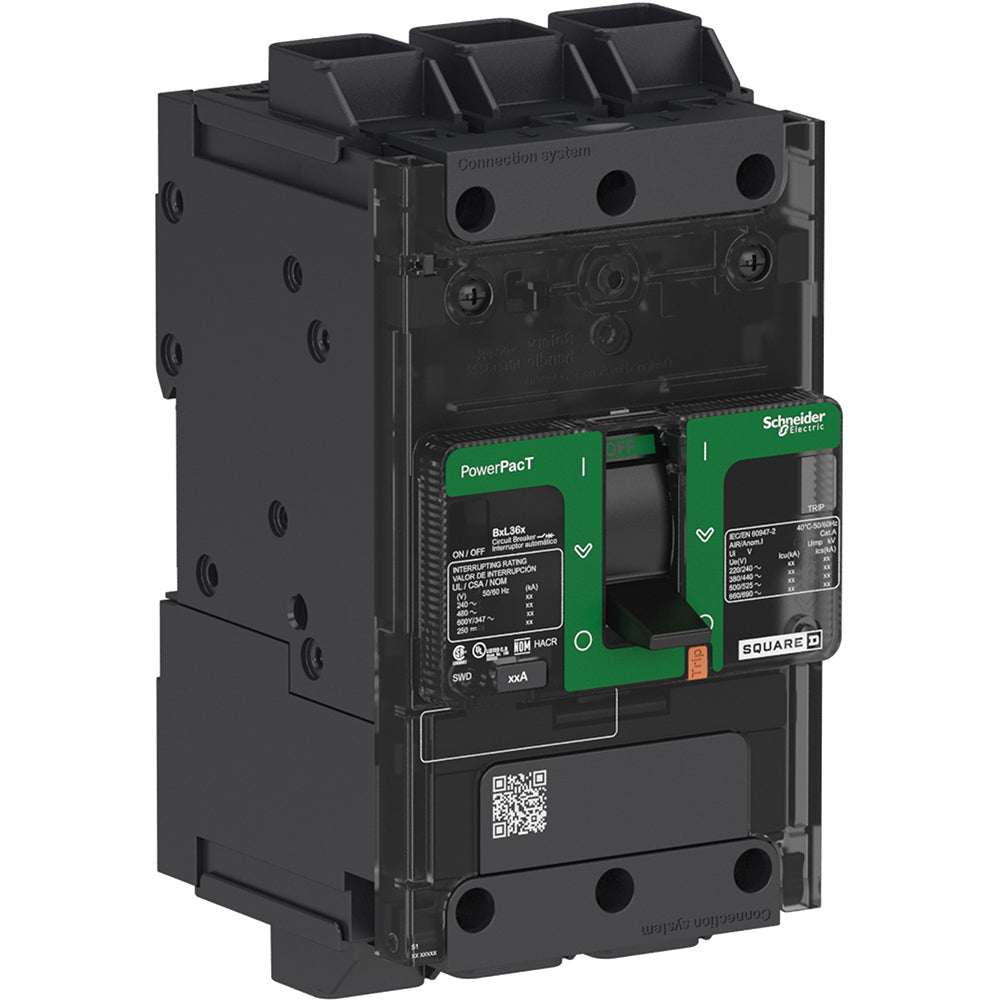

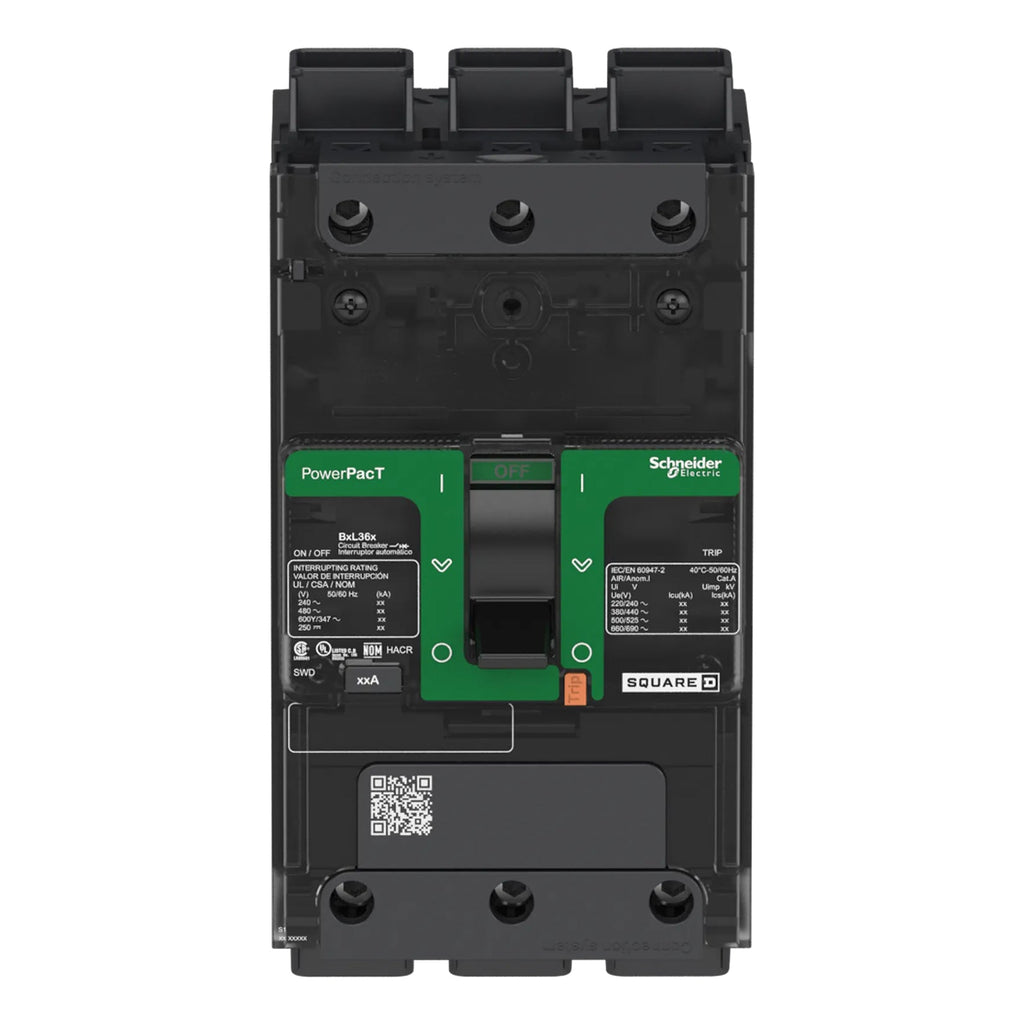

BGL36100 is a Schneider Electric PowerPact B molded case circuit breaker designed for reliable circuit protection.This 3-pole circuit breaker features a 100 ampere rating and operates at 600Y/347 volts AC. It has a breaking capacity of 18kA at 600Y/347VAC and uses a thermal magnetic trip unit. The breaker supports unit mount installation with integrated DIN rail and back pan mounting capability. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple international standards. The frame size is B, and it has an 80% continuous current rating. The enclosure protection is IP40 with IK07 impact resistance.

Key Specifications
• Amperage: 100 A
• Voltage: 600Y/347 VAC
• Poles: 3
• Interrupt Rating: 18kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic
• Frame: PowerPact B

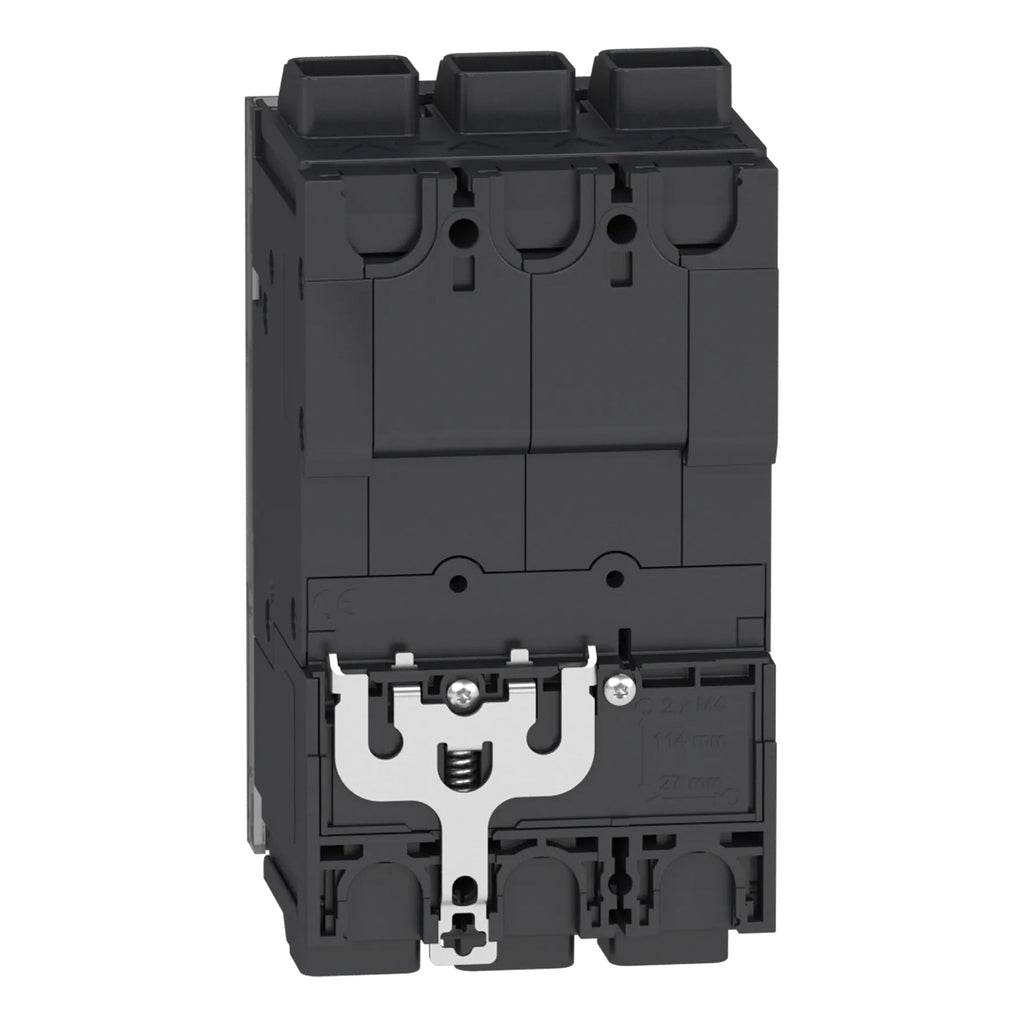

• Mounting Type: Unit Mount with DIN rail and back pan
• Continuous Current Rating: 80%
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Enclosure Protection: IP40 / IK07
• Dimensions: 5.39 in H x 3.19 in W x 3.15 in D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BGL36100
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901469032
• GTIN : 03606481154132
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.11
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
