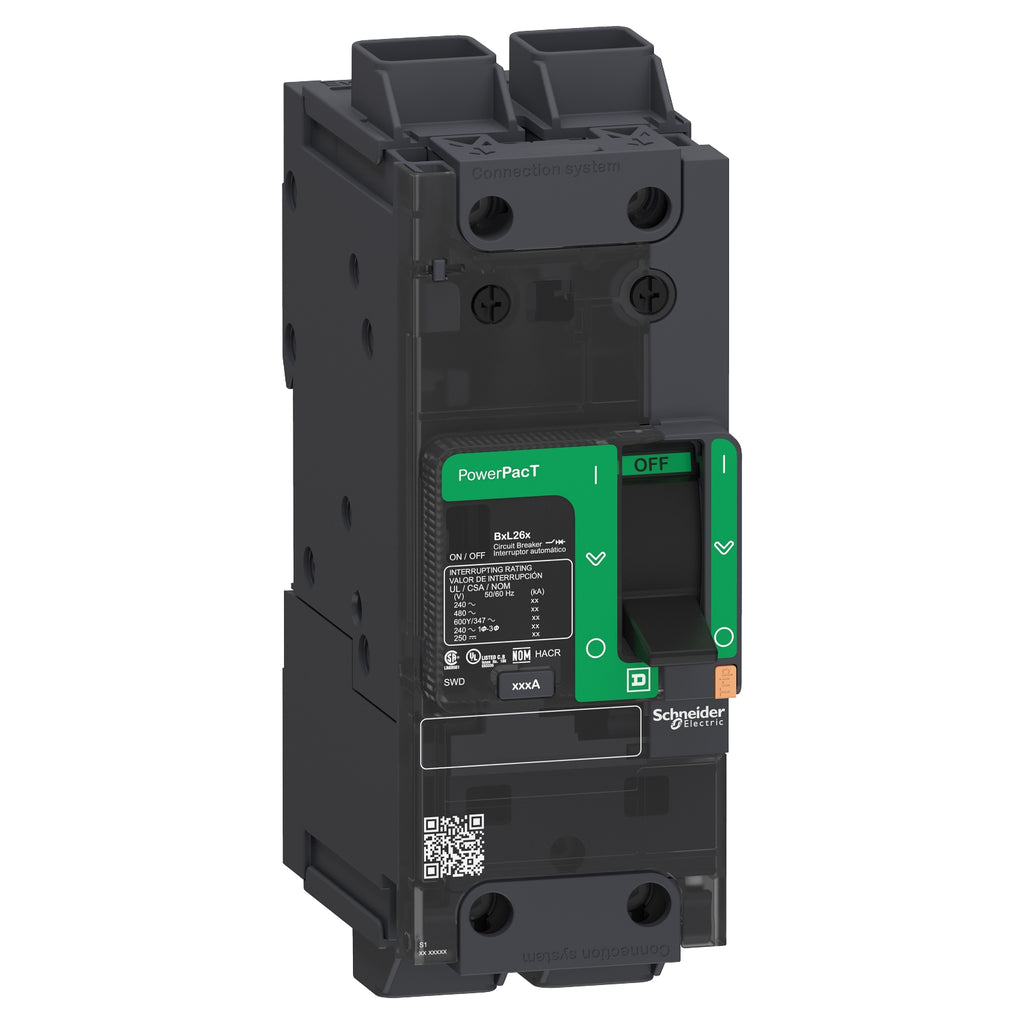

BGL26035 - Schneider Electric PowerPact B 35A 2-Pole 600Y/347VAC Thermal Magnetic Circuit Breaker

BGL26035

BGL26035 is a Schneider Electric PowerPact B series circuit breaker designed for reliable circuit protection.This 2-pole thermal magnetic circuit breaker is rated for 35 amps and 600Y/347 volts AC with an 18kA interrupt rating. It features EverLink lugs for secure connections and is designed for DIN rail mounting. The breaker complies with UL certifications and offers 80% rated thermal magnetic trip performance.

Key Specifications
• Amperage: 35A
• Voltage Rating: 600Y/347 VAC
• Poles: 2
• Interrupt Rating: 18kA
• Mounting Type: DIN Rail
• Trip Unit: Thermal Magnetic
• Series/Frame: PowerPact B
• Connection Type: EverLink Lugs
• Certification: UL Listed
• Actuator Type: Toggle
• Rated Thermal Magnetic Trip: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL26035
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901073093
• GTIN : 00785901073093
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.5
• Standards : GB 14048.2, EN/IEC 60947-2, NEMA AB1, NMX J-266, UL 489, CSA C22.2 No 5, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
