BGA34060Y - Square D 60A 480Y/277VAC 3 Pole PowerPact B Circuit Breaker I-Line Mount

BGA34060Y

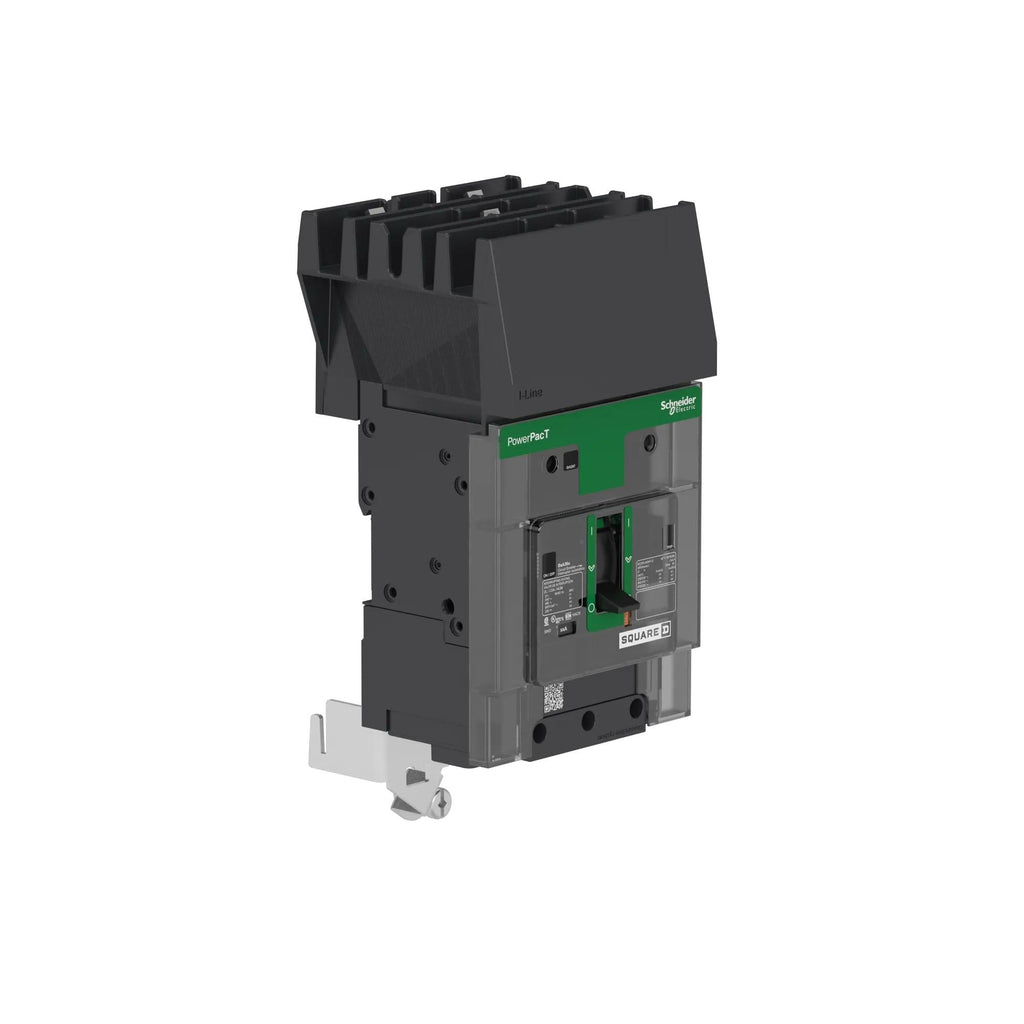

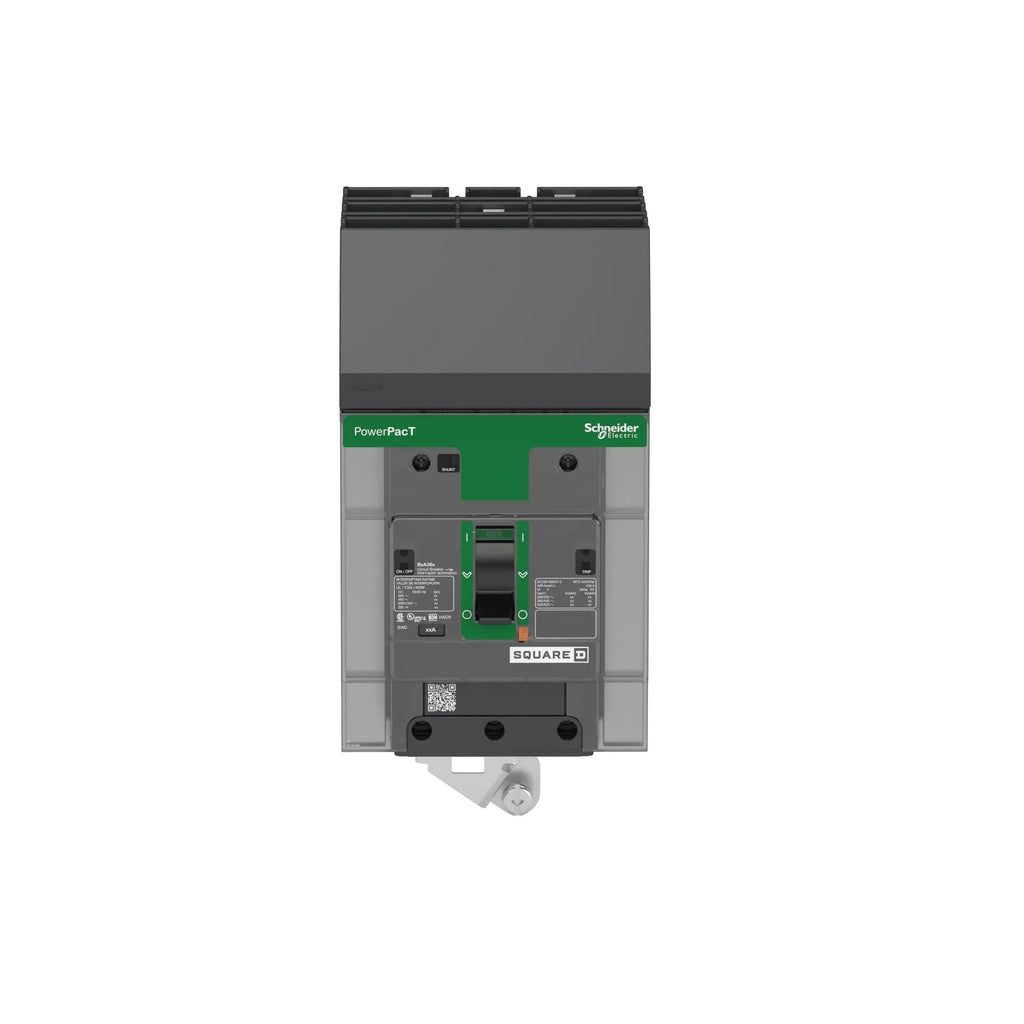

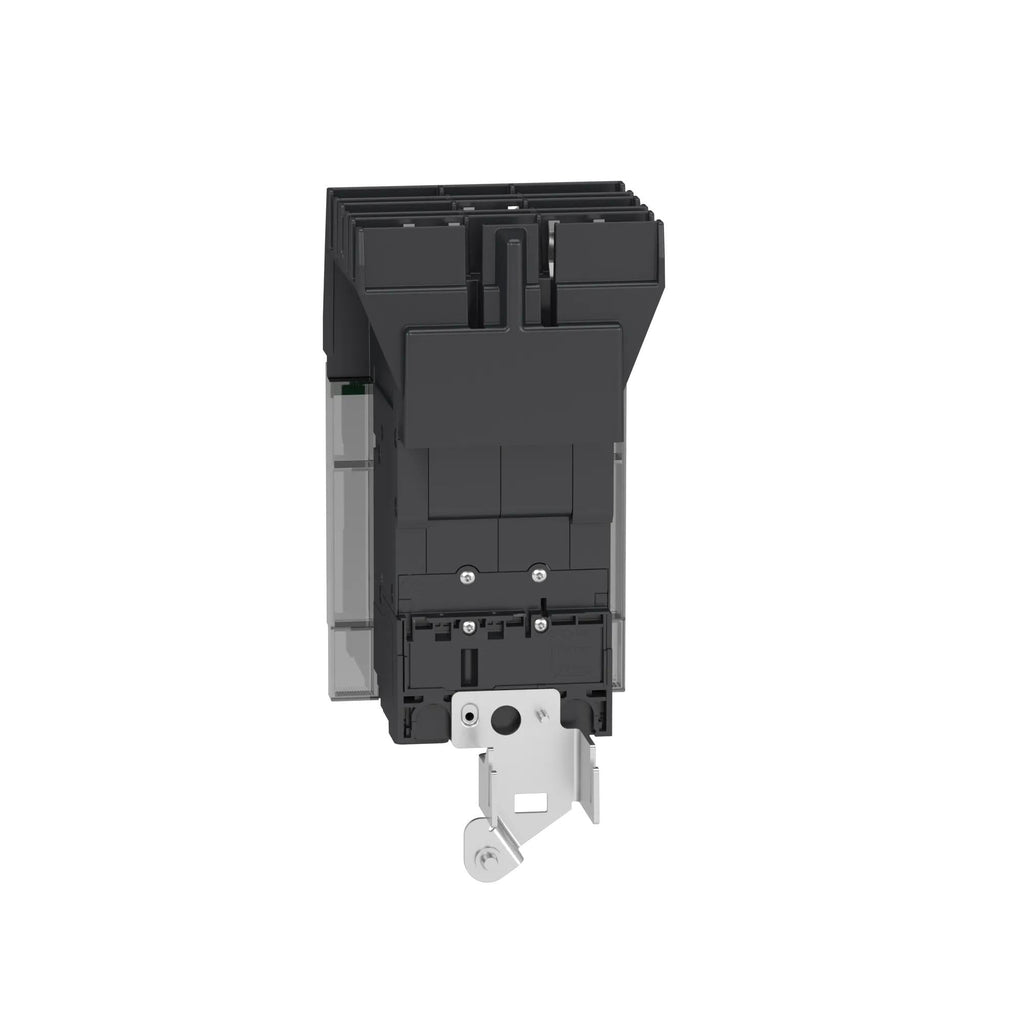

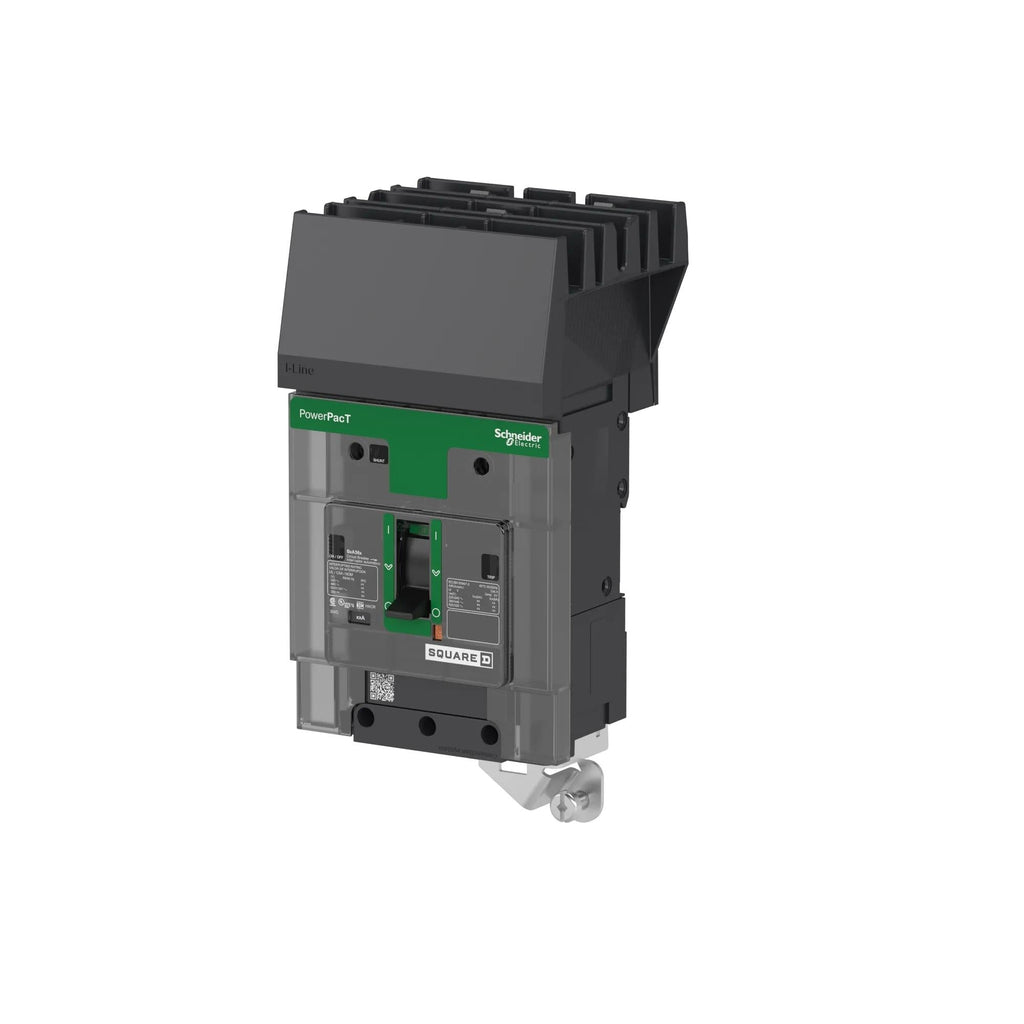

BGA34060Y is a Square D PowerPact B molded case circuit breaker with a 60 Amp rating and 3 poles designed for 480Y/277VAC applications.This thermal magnetic circuit breaker features an I-Line mounting type, 35kA interrupt rating at 480Y/277VAC, and a continuous current rating of 80%. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple safety standards.

• Amperage: 60 Amps trip rating
• Voltage Rating: 480Y/277VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 35kA at 480Y/277VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Continuous Current Rating: 80%
• Dual rated AC/DC breaking capacity

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA34060Y
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 480
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901069409
• GTIN : 00785901069409
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.79
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, GB 14048.2, NMX J-266, EN/IEC 60947-2, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
