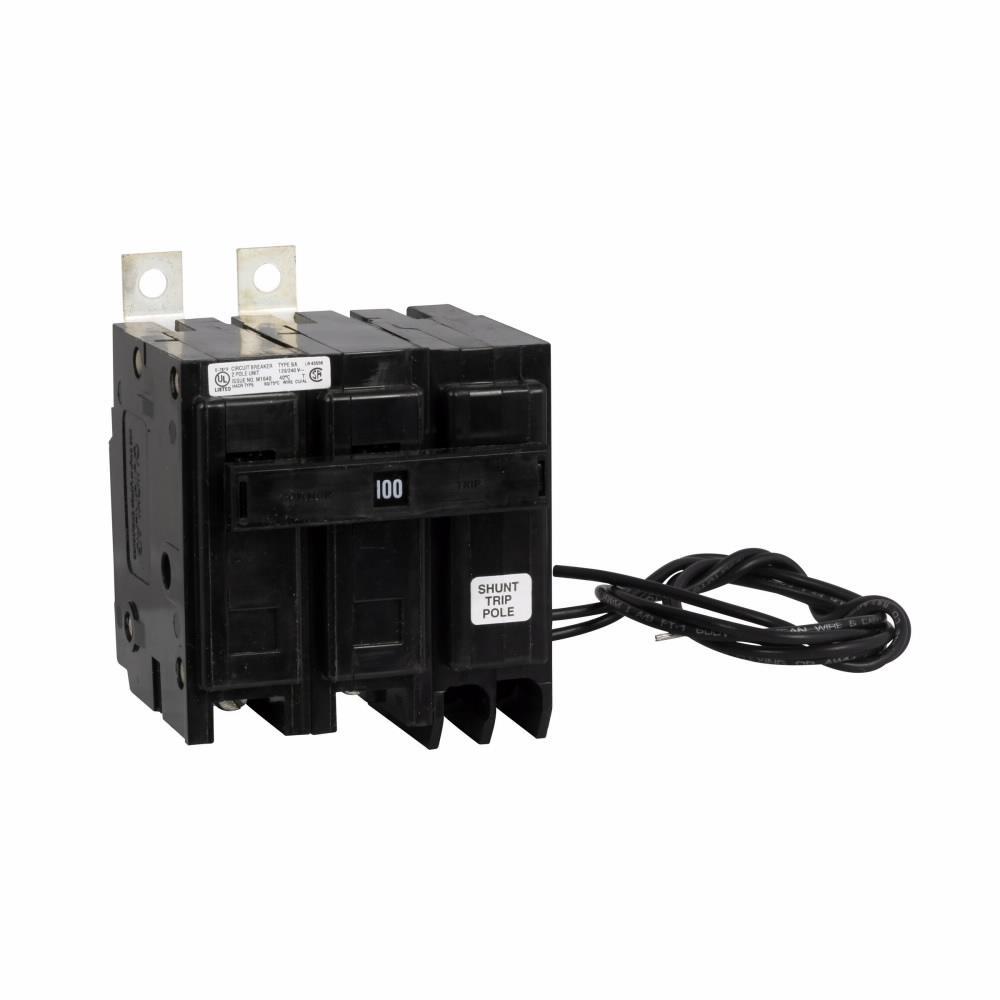

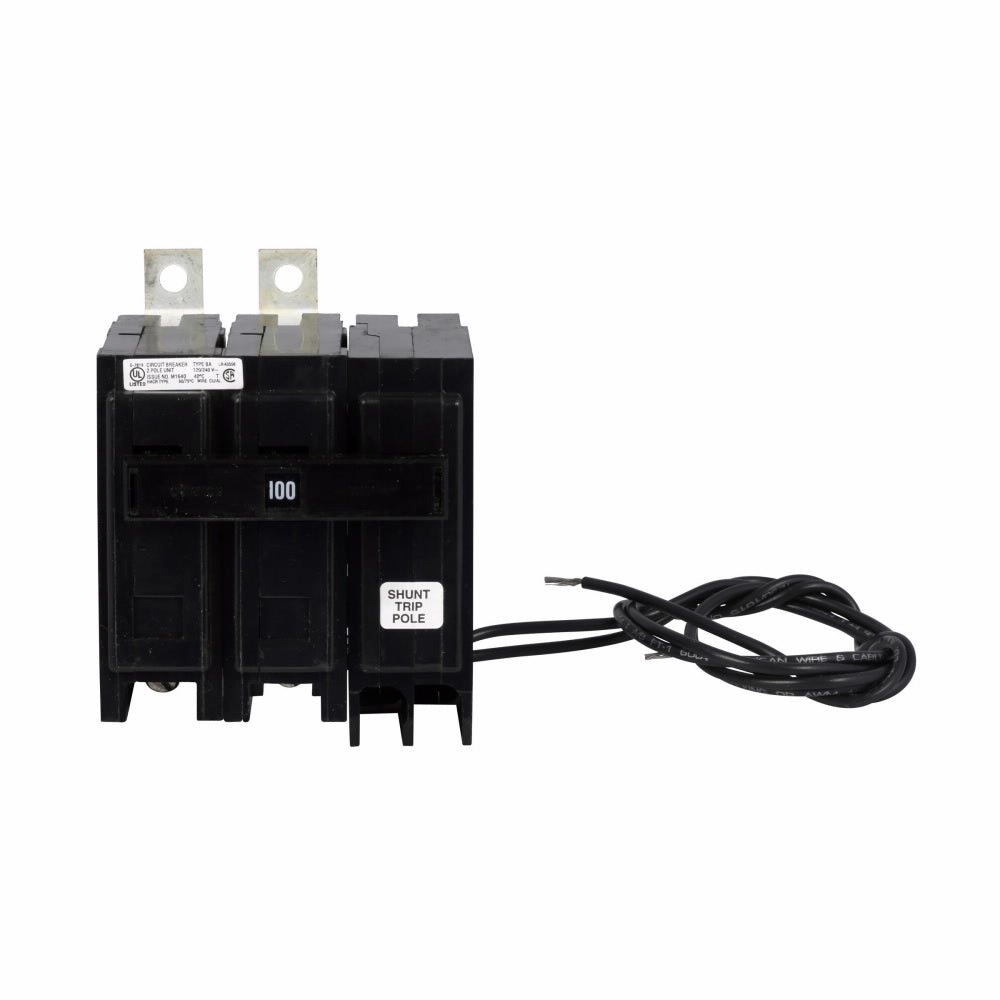

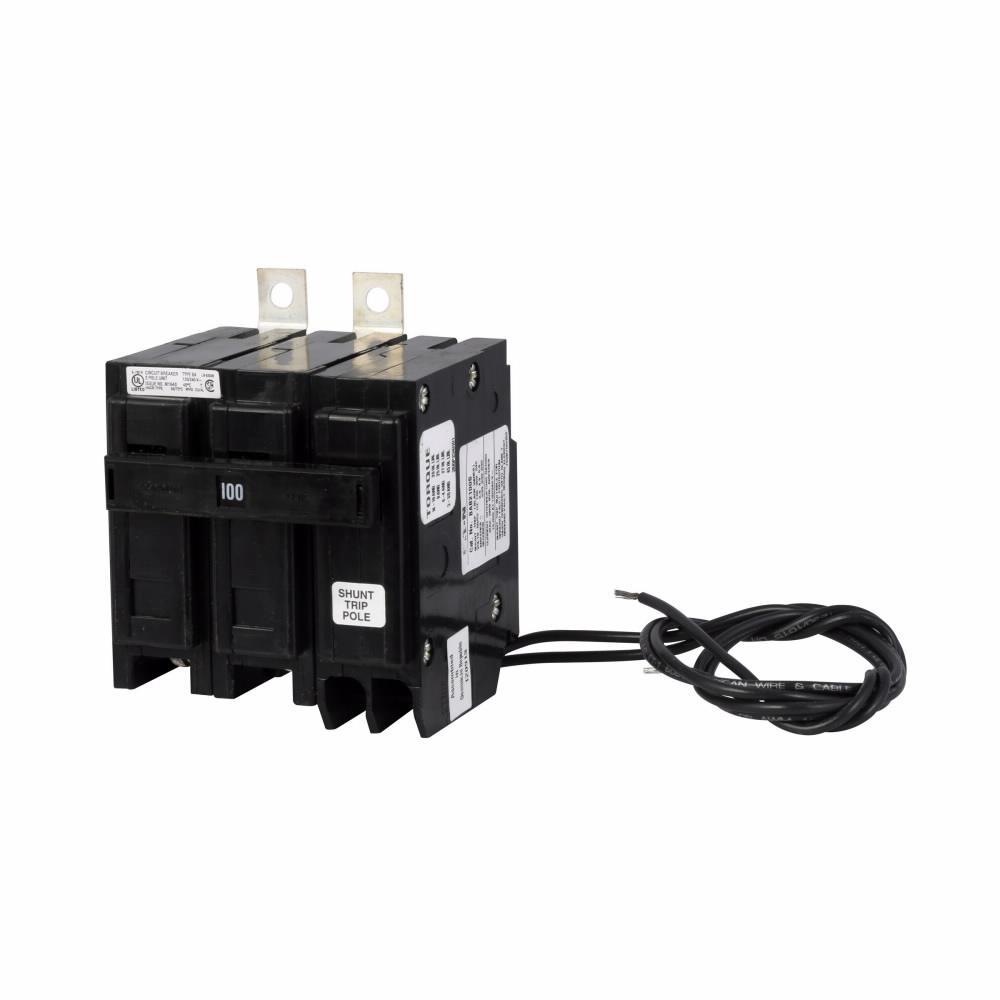

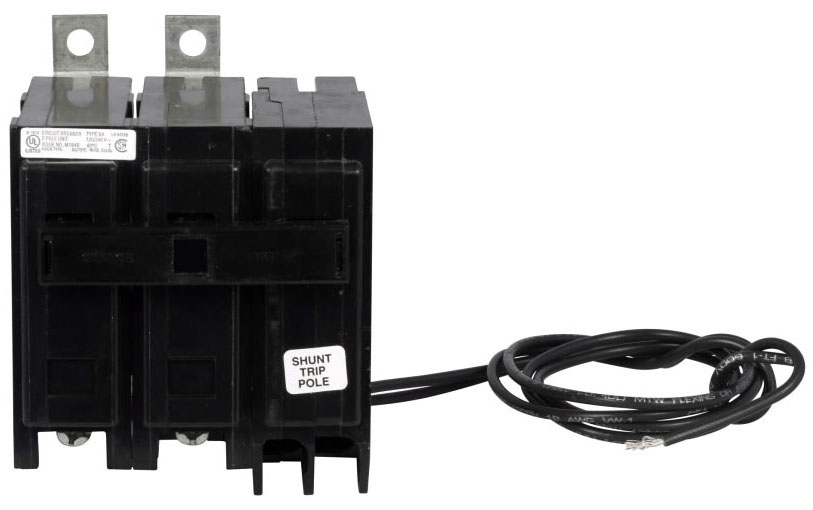

BAB2100S - Cutler Hammer 100 Amp 2 Pole Thermal Magnetic Shunt Trip Circuit Breaker 120/240VAC BAB Frame Bolt-On

BAB2100S

BAB2100S is a Cutler Hammer 2 pole, 100 amp thermal magnetic circuit breaker with shunt trip functionality designed for 120/240VAC applications.This BAB series breaker features a bolt-on mounting type, 10,000 amp interrupt rating at 120/240VAC, and is UL 489 and CSA certified. It supports wire sizes from 8 to 1/0 AWG aluminum or copper and includes an extended tang line terminal with box lug load terminals. The breaker is suitable for industrial and commercial use with a 120/208/240VAC shunt trip operation.

Key Specifications
• Amperage: 100 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps at 120/240 VAC
• Series/Frame: BAB
• Trip Unit: Thermal Magnetic with Shunt Trip
• Wire Size: 8 to 1/0 AWG Aluminum/Copper
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BAB2100S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679509630
• GTIN : 00786679509630
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.9 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 8 To 1/0 AWG (Aluminum/Copper
