Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATM1

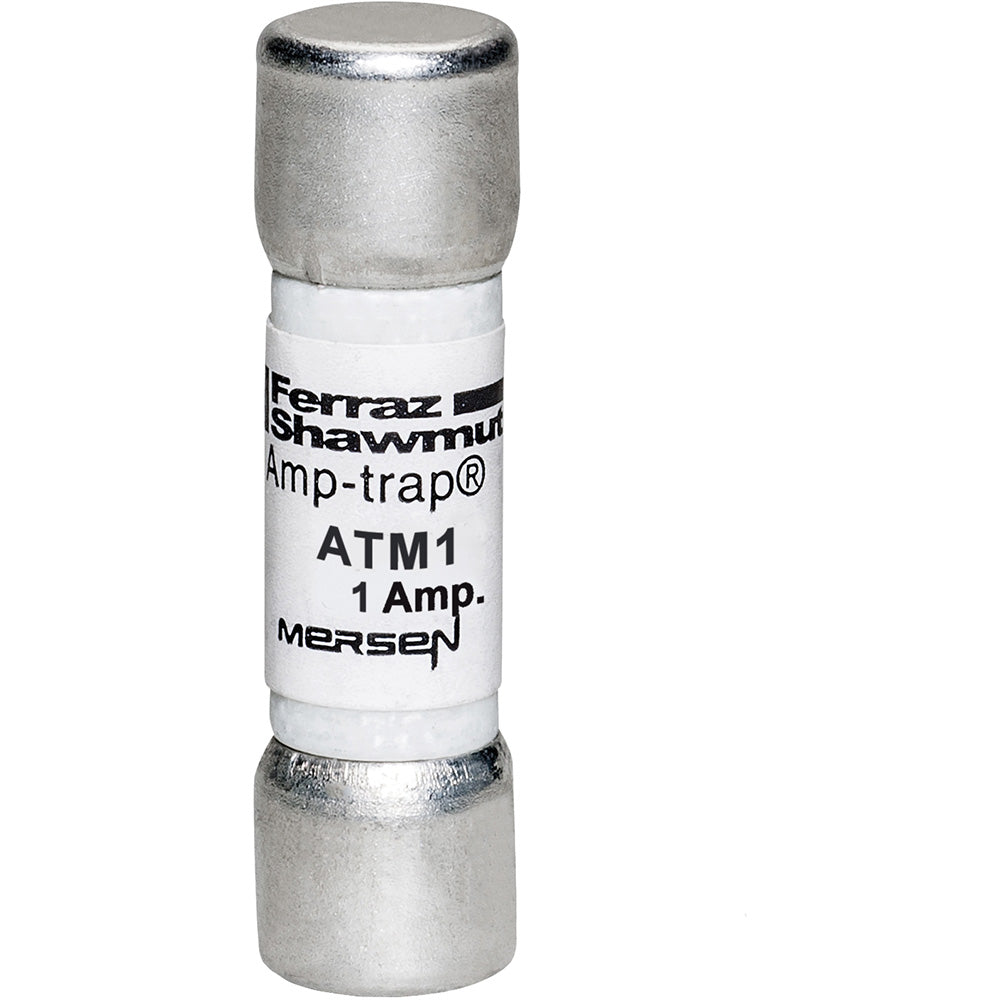

ATM1 is a Mersen Ferraz Shawmut midget fast-acting fuse rated for 1 amp and 600 volts AC/DC with a 100kA interrupting rating.
This ATM1 fuse features a fast-acting characteristic designed for supplemental protection of small motors and transformers. It has a clip mounting type with tin-plated copper ferrule terminals, a compact size of 0.41 inch diameter by 1.5 inch length, and meets UL 248-14 and CSA C22.2 certifications. The fuse body is made of GMG insulating material and is RoHS compliant.
- Key Specifications
- Amperage: 1 A
- Voltage Rating: 600 V AC/DC
- Interrupt Rating: 100 kA
- Fuse Class: Midget
- Speed/Characteristic: Fast-Acting
- Mounting Type: Clip
- Terminal Material: Tin-Plated Copper
- Terminal Type: Ferrule
- Dimensions: 0.41 in diameter x 1.5 in length
- Certifications: UL 248-14, CSA C22.2
- RoHS Compliant: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATM1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATM
- Voltage : 600
- Amperage : 1
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001900816
- GTIN : 00782001900816
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CE
