Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AJT35

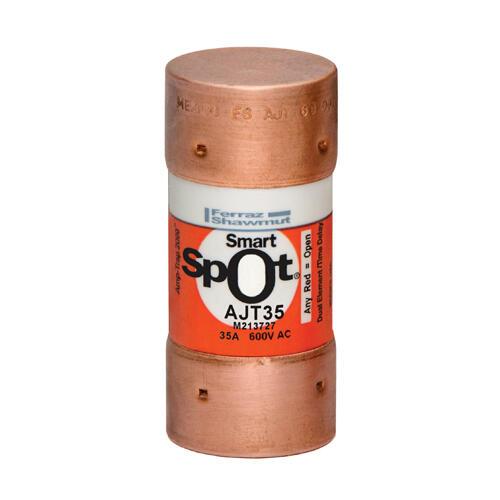

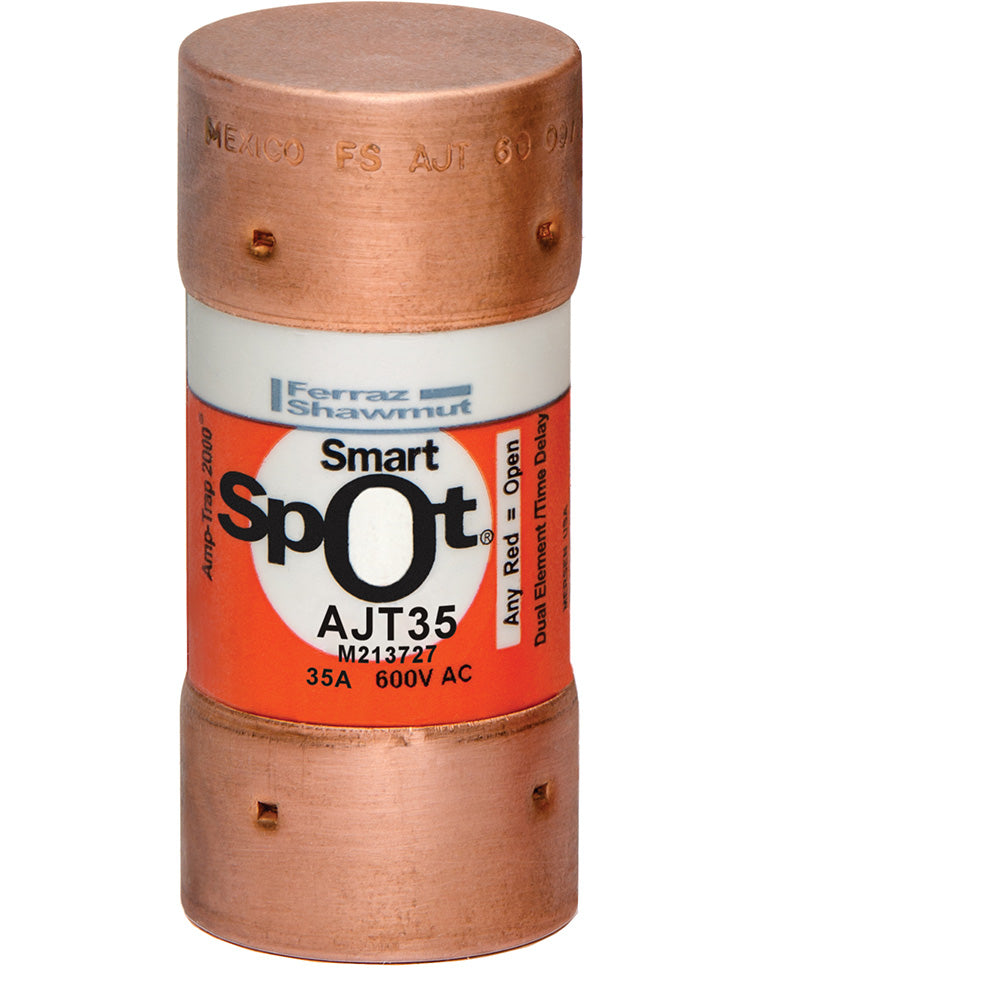

AJT35 is a 35 amp, 600 volt AC, Class J time delay fuse from Mersen featuring the SmartSpot visual blown fuse indicator.This fuse offers extremely current limiting protection with a 200,000 A interrupt rating at 600 VAC and 100,000 A at 500 VDC. It is UL listed to standard 248-8 and CSA certified, designed for motor starting and transformer inrush applications. The fuse has a clip mounting type and tin-plated copper ferrule terminals.
- Key Specifications
- Amperage: 35 A
- Voltage Rating: 600 VAC, 400 VDC
- Fuse Class: Class J
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA AC, 100 kA DC
- Mounting Type: Clip
- Indication System: SmartSpot visual blown fuse indicator
- Connection Material: Tin-plated copper ferrule
- Body Material: GMG
- UL Listed to Standard 248-8
- CSA Certified to C22.2 No. 248.8
- IEC 269-2-1 Compliant
Specifications
- Part Number: AJT35
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : AJT
- Voltage : 600
- Amperage : 35
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001962302
- GTIN : 00782001962302
- Country of Origin : Mexico
- Dimensions : x 2-3/8" x
- Weight : 5
- Certification : UL/CSA
