A2X1RPK - Cutler Hammer Auxiliary Switch for F-Frame Circuit Breakers, 600VAC, 2NO-2NC Contacts

A2X1RPK

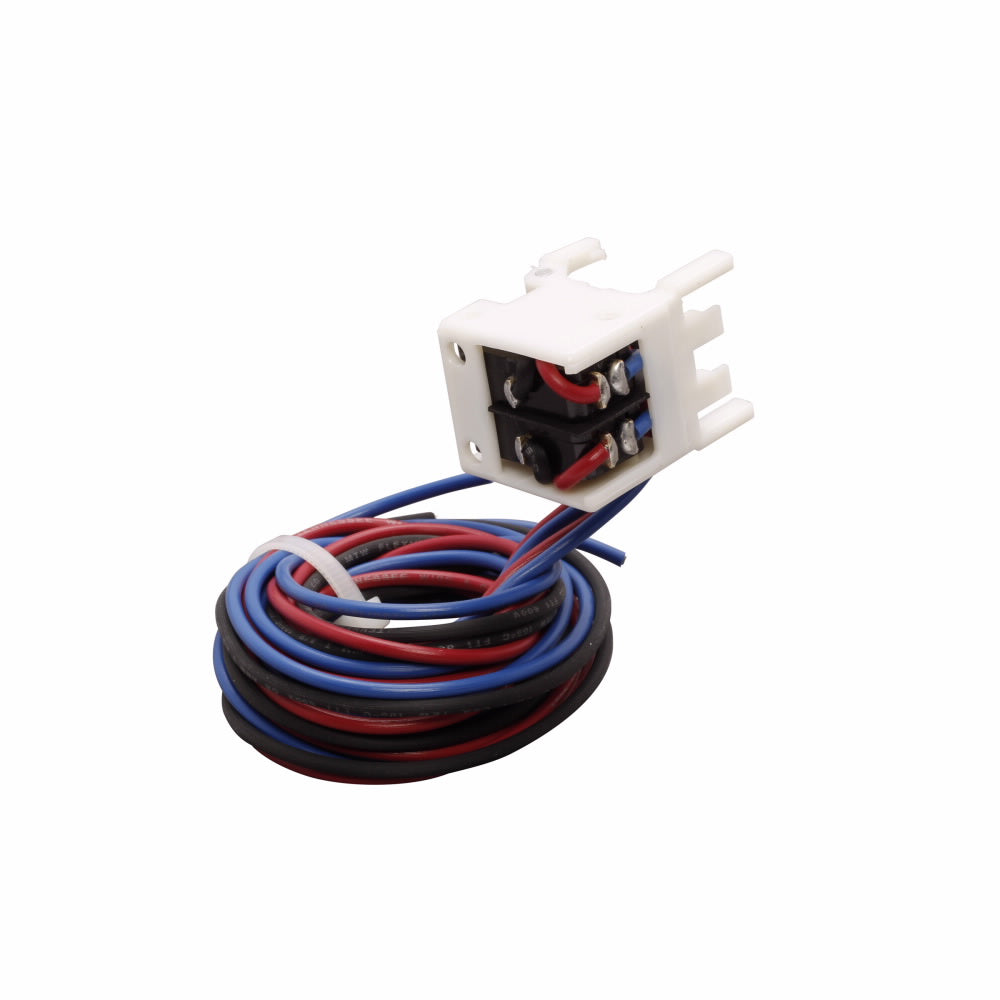

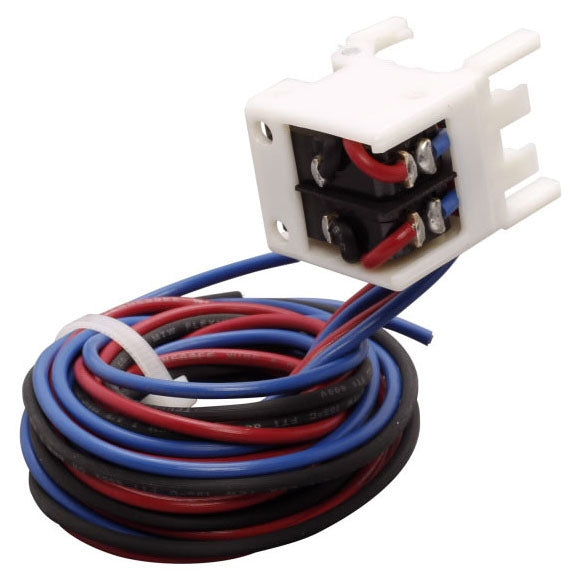

A2X1RPK is an auxiliary switch designed for Cutler Hammer F-frame circuit breakers, providing remote signaling and system interlocking capabilities.This auxiliary switch features two normally open and two normally closed contacts (2NO-2NC) and is compatible with multiple Cutler Hammer breaker frames including ED, EHB, HFD, FDB, FD, and FDC series. It supports a voltage rating of 600 VAC and is used to indicate circuit breaker status for enhanced control and monitoring.

• Compatible with F-frame and other Cutler Hammer breaker frames
• Configuration: 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
• Voltage rating: 600 VAC
• Used for remote signaling and system interlocking
• Mounting: Right/Neutral pole position
• Connection type: Pigtail leads
• Supports circuit breakers up to 225 Amps
• Dimensions: Approximately 3.1" x 5.5" x 2.9"
• Weight: 0.3 lbs
• Compatible with Cutler Hammer K-frame breakers
• Certifications: UL 1066, UL 489, ANSI C37 compliant (per breaker standards)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A2X1RPK
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Auxiliary
• Family : Series C
• Type : C
• Voltage : 600VAC
• Amperage : 225
• Connection : Pigtail Leads
• Configuration : 2A/2B
• Compatible Frames : FDB,FD,HFD,FDC,FG,E2F,E2FM

Product Data

• UPC : 786679281666
• GTIN : 00786679281666
• Country of Origin : Dominican Republic
• Dimensions : 2.9 in x 3.1 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 0.3
