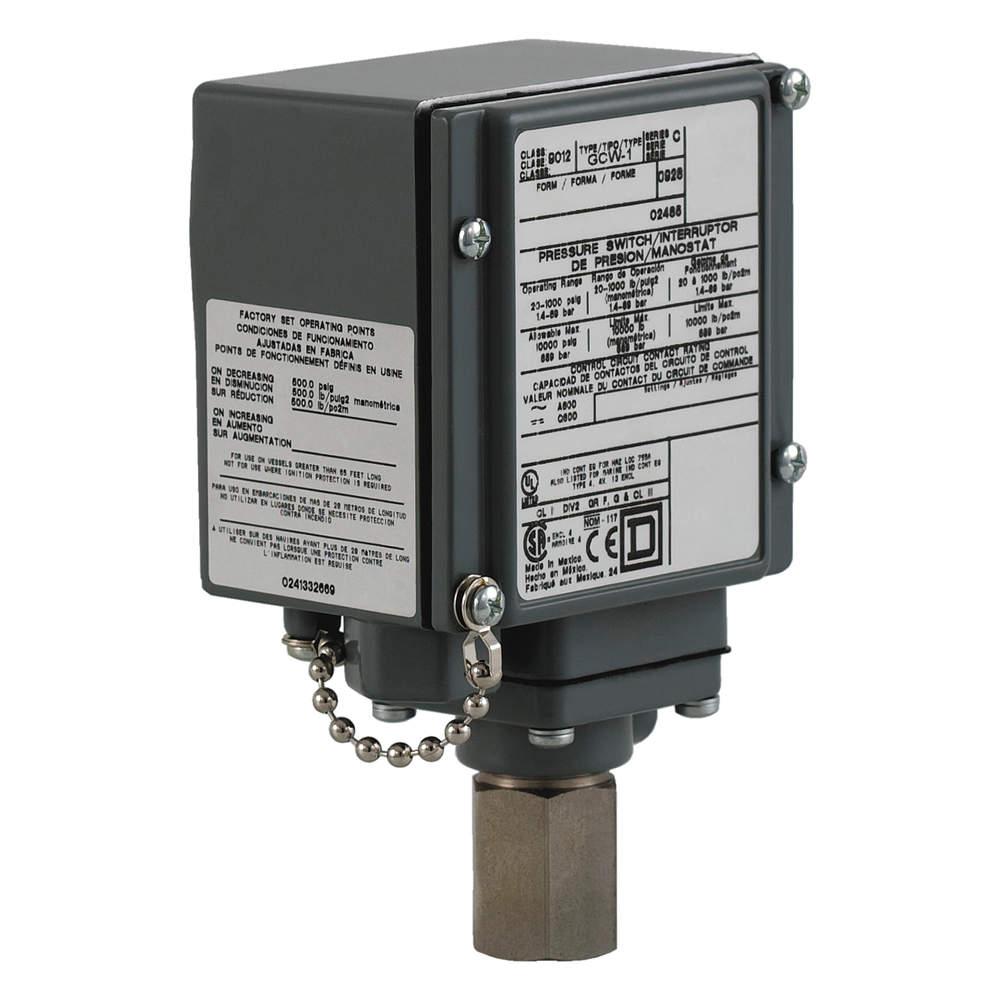

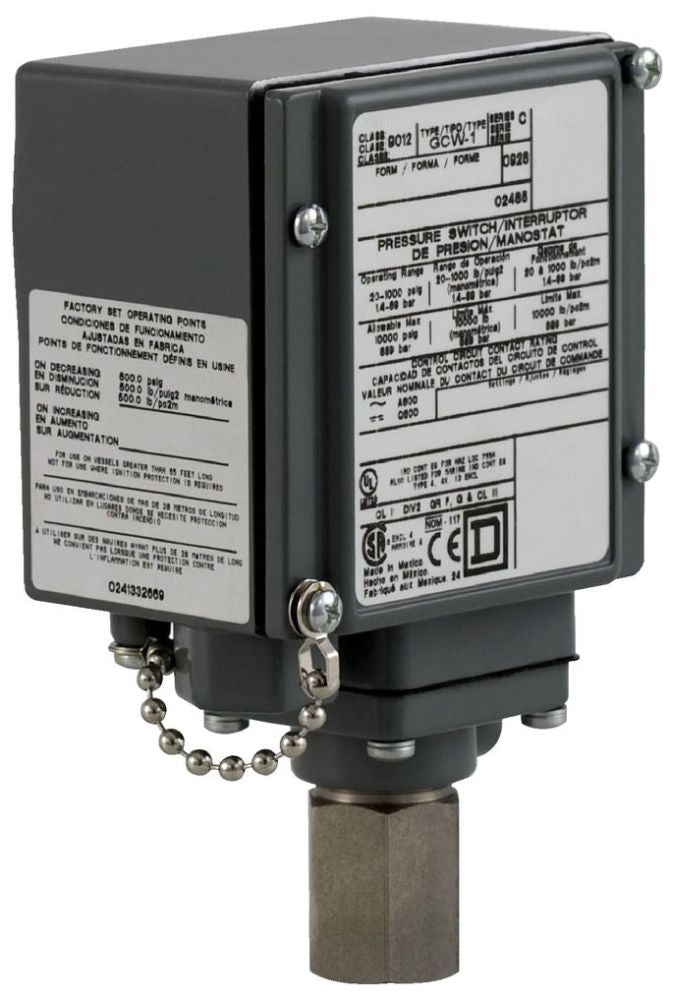

9012GCW1 - Telemecanique 10A 480VAC Pressure Switch, NEMA 4/4X/13, 1NC-1NO SPDT, Adjustable Differential, 20-1000 PSI

9012GCW1

9012GCW1 is a heavy-duty pressure switch designed for industrial applications requiring reliable pressure monitoring and control. This switch features a 1NC-1NO SPDT contact configuration, rated for 10 A at 480 VAC, and is suitable for use with air, water, oil, and non-corrosive gases. The rugged die cast aluminum housing and stainless steel components provide durability in harsh environments. Engineered for versatility, the 9012GCW1 offers internal or external range adjustment, dual numerical scale (psi/kPa), and a wide operating range from 20 to 1000 PSI. It is panel mountable and features a 1/4 in 18 NPTF fluid connection, 4-screw terminal blocks, and 22 to 12 AWG electrical connections. The switch is sealed for high shock resistance and set-point stability, making it ideal for demanding industrial settings.

• Manufacturer: Telemecanique
• Part Number: 9012GCW1
• Contact Configuration: 1NC-1NO SPDT
• Contact Rating: 10 A at 480 VAC
• Operating Range: 20 to 1000 PSI
• Enclosure Type: NEMA 4/4X/13
• Mounting Type: Panel Mount
• Fluid Connection: 1/4 in 18 NPTF
• Electrical Connection: 22 to 12 AWG, 4-screw terminal blocks
• Operating Temperature: -15 to 250 deg F
• System Pressure: 1000 PSI
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9012GCW1
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Pressure switch
• Family : 9012G

Product Data

• UPC : 785901024859
• GTIN : 00785901024859
• Country of Origin : Mexico
• Dimensions : 3.5 in W x 2.63 in D x 6.37 in H 6.37 in H x 3.5 in W x 2.63 in D
• Weight : 1.09
• Certification : CE, RoHS, UL 508
