Description
8910DPA42V02

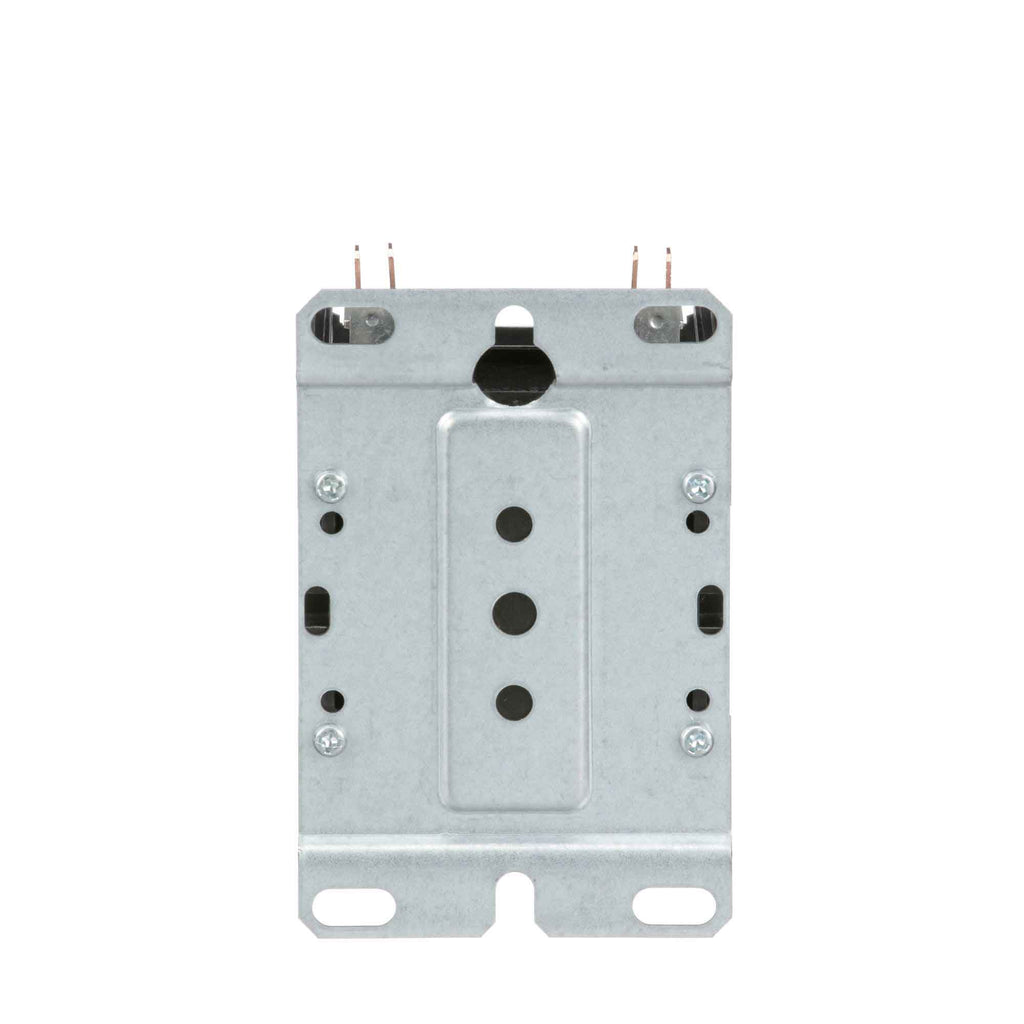

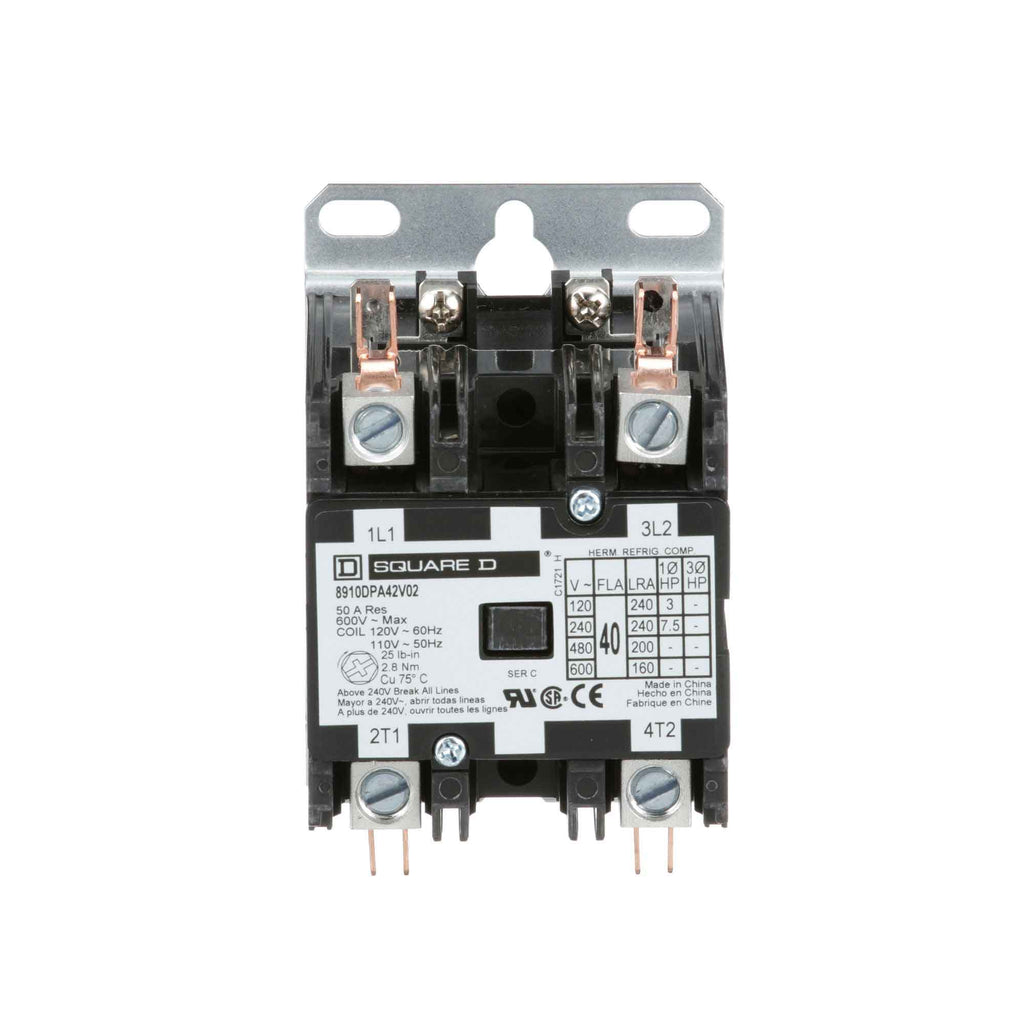

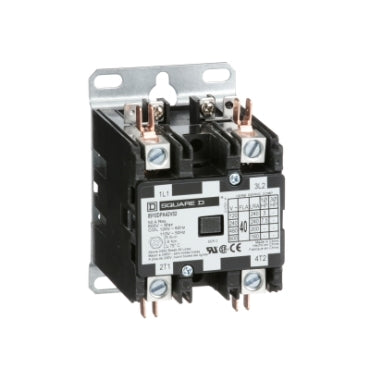

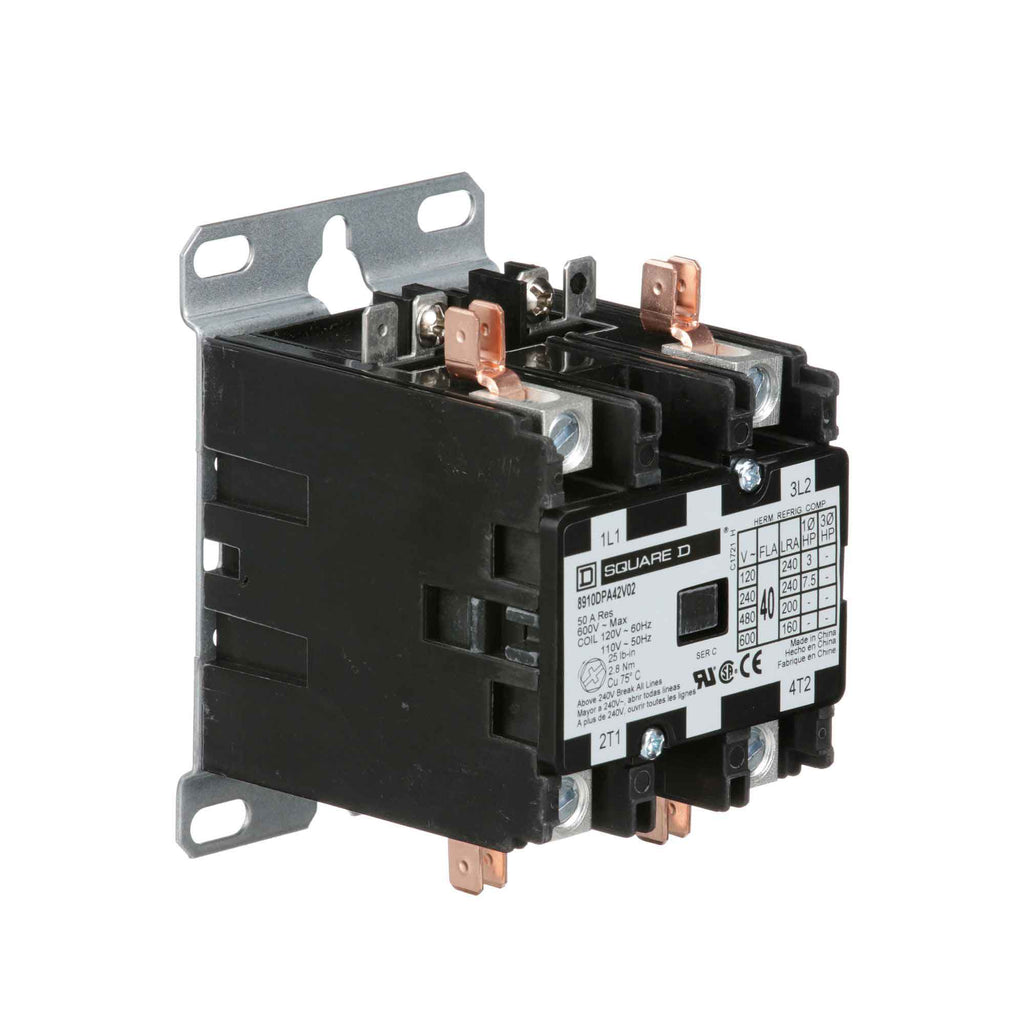

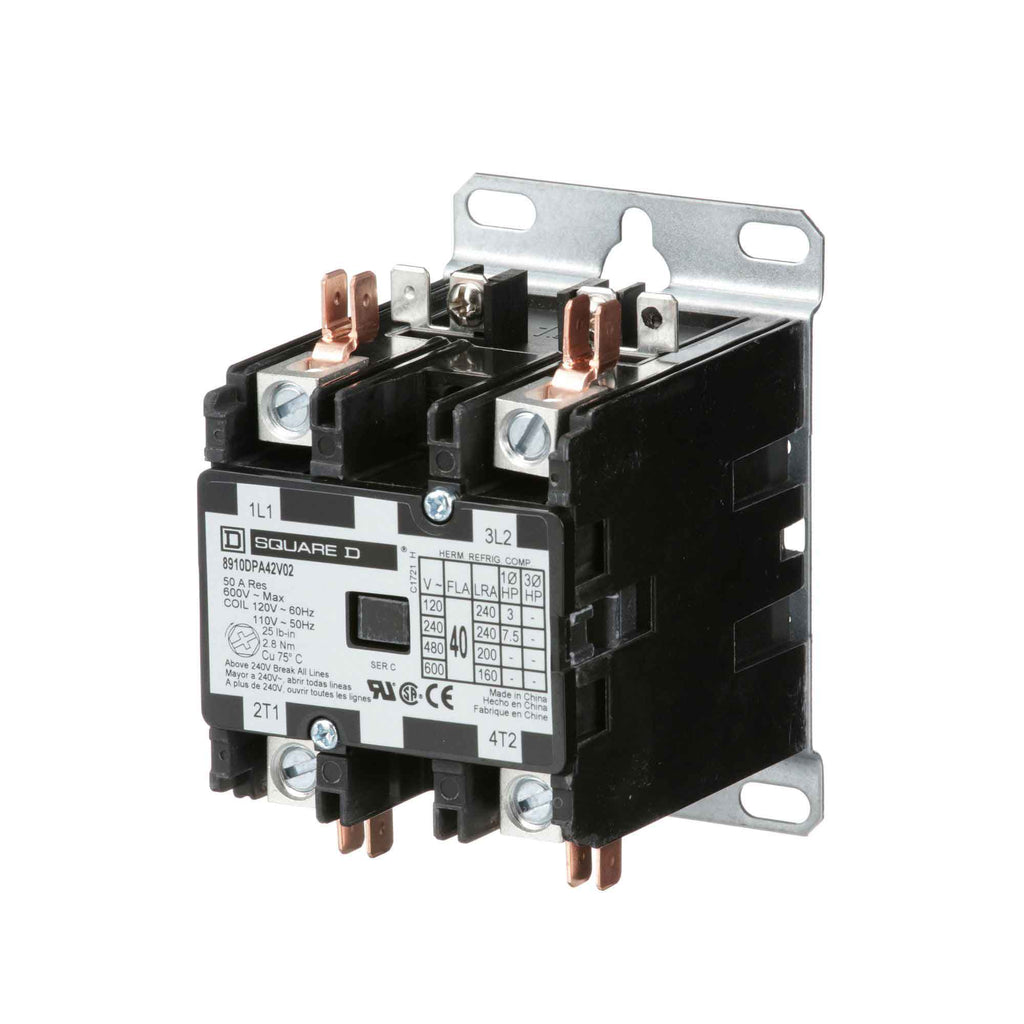

8910DPA42V02 is a Square D definite purpose contactor designed for motor control applications with a 40 Amp current rating and 600VAC voltage rating.This 2-pole contactor features a panel mounting type and 8910 frame, suitable for single-phase systems. It operates with a coil voltage of 110VAC at 50Hz and 120VAC at 60Hz. The device is UL, CSA, and CE approved, RoHS compliant, and supports a temperature range of 0 to 65°C. Connection is via binding head screw terminals with box lug terminal connections.
- Brand: Square D
- Series: 8910
- Amperage: 40A
- Voltage: 600VAC
- Poles: 2
- Phase: 1
- Mounting Type: Panel
- Frame Type: 8910
- Coil Voltage: 110/120VAC 50/60Hz
- Approvals: UL, CSA, CE
- Connection Type: Binding Head Screw
- Terminal Connection: Box Lug
- Standards: RoHS
- Temperature Rating: 0 to 65°C
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8910DPA42V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 40
- Phase : 1
- Poles : 2
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 120V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 110V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901073475
- GTIN : 00785901073475
- Country of Origin : China
- Dimensions : 2.5 in x 4 in
- Weight : 1.013 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, RoHS, UL Listed
