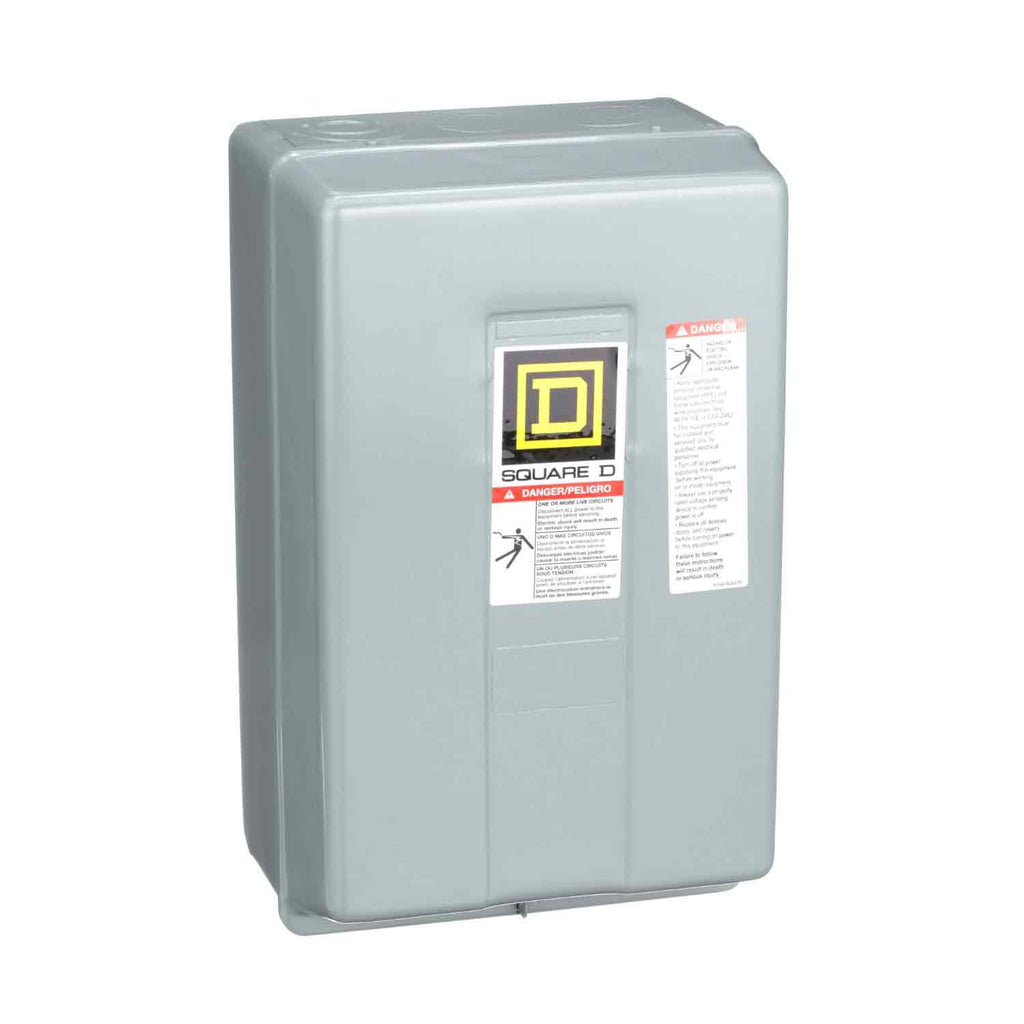

8903LG60V02 - Square D 30A 6-Pole Lighting Contactor, 600VAC, 110/120VAC Coil, NEMA 1, Electrically Held, UL/CSA Certified

8903LG60V02

8903LG60V02 is a Square D 6-pole, 30A lighting contactor designed for reliable switching of lighting loads in commercial and industrial applications.

This electrically held contactor features a 600VAC voltage rating, a 110/120VAC 50/60Hz coil, and a NEMA 1 enclosure for surface mounting. It is UL Listed and CSA Certified, ensuring compliance with industry standards for safety and performance. The contactor is field convertible between electrically and mechanically held operation, offering flexibility for various control schemes.

Key Specifications

• Amperage: 30A fluorescent, 20A tungsten
• Voltage: 600VAC, 110/120VAC coil
• Poles: 6 (6NO)
• Mounting Type: Surface
• Interrupt Rating: Not specified in available data
• Series/Frame: 8903, Type L
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: UL Listed, CSA Certified
• Enclosure: NEMA 1
• Contact Material: Silver cadmium oxide, double-break
• Coil Voltage: 110VAC at 50Hz, 120VAC at 60Hz
• Termination: Screw-clamp terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Electrically Held Multipole Lighting Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8903LG60V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : L
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 6
• Coil Voltage Maximum : 120
• Full Load Amps : 30
• Coil Voltage Minimum : 110
• Frequency : 50/60 Hz

Product Data

• UPC : 785901851400
• GTIN : 00785901851400
• Country of Origin : Mexico
• Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
• Weight : 9.98
• Certification : UL Listed; CSA
