Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
60608J

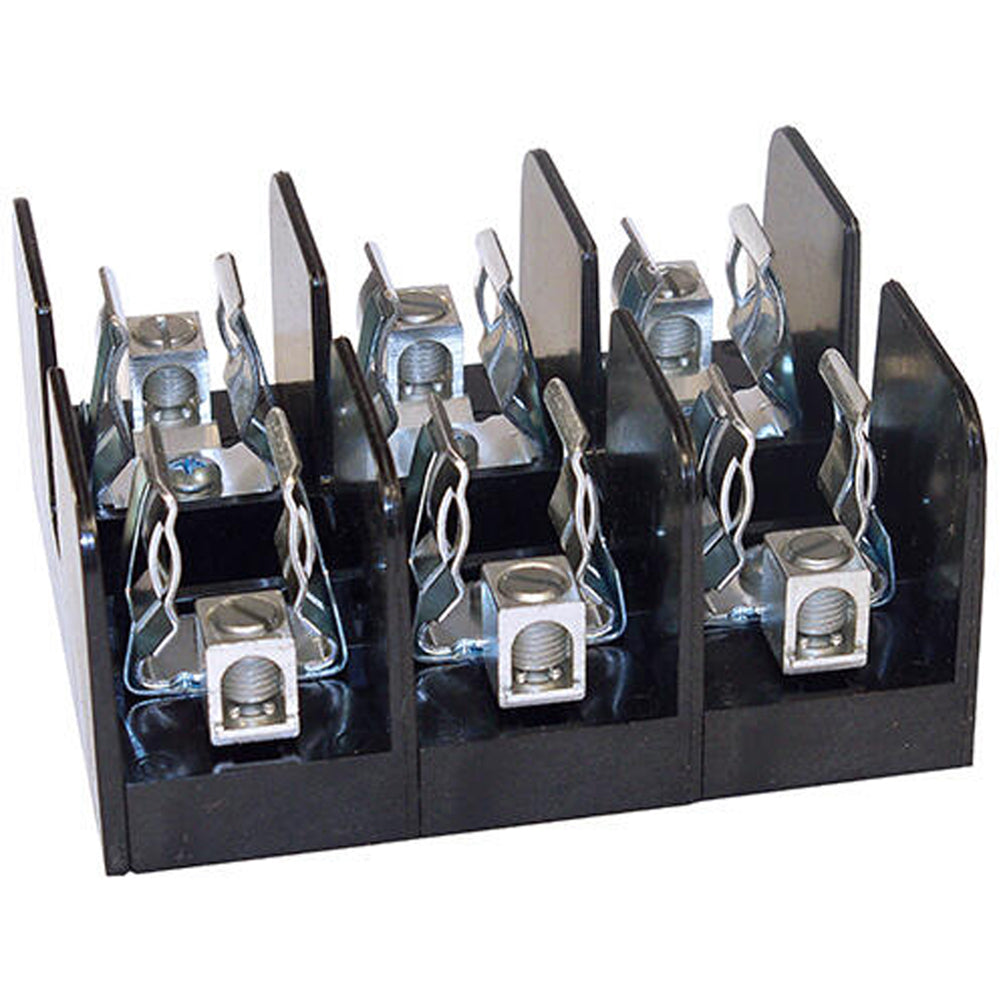

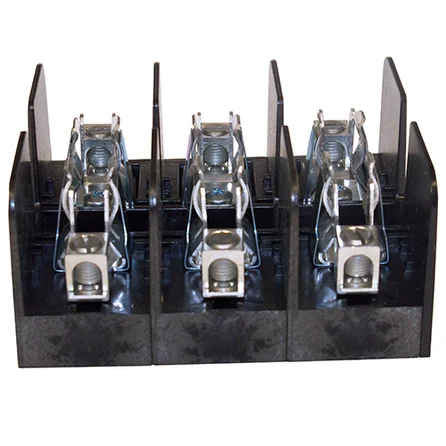

60608J is a Mersen Ferraz Shawmut Class J open style fuse block rated for 60 amps and 600 volts AC/DC with 3 poles and threaded mounting.This fuse block is designed for use with Class J fuses, suitable for amperages up to 60A and voltages up to 600 VAC/VDC. It features a 3-pole configuration with box lug connections supporting 14 to 2 AWG wire sizes. The body is made of glass reinforced polycarbonate for durability and is rated for operation down to -25 degrees Celsius. It has a short circuit current rating of 200 kA and is UL 4248-8 and CSA certified. The mounting type is threaded for secure installation, compatible with AJT, A4J, and HSJ series fuses.
- Key Specifications
- Amperage Rating: 60 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 3
- Fuse Class: Class J
- Mounting Type: Threaded
- Connection Type: Box Lug (14 to 2 AWG)
- Material: Glass Reinforced Polycarbonate
- Short Circuit Current Rating: 200 kA
- Temperature Rating: -25°C minimum
- Certifications: UL 4248-8, CSA C22.2
- Compatible Fuse Series: AJT, A4J, HSJ
Specifications
- Part Number: 60608J
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 606
- Voltage : 600
- Amperage : 60
Product Data
- UPC : 782001759537
- GTIN : 00782001759537
- Country of Origin : Mexico
- Dimensions : 4.65 in x 4 in x 2.12 in
- Weight : 1 lb
- Certification : CSA Certified, UL Listed
