Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
C25DNJ350A

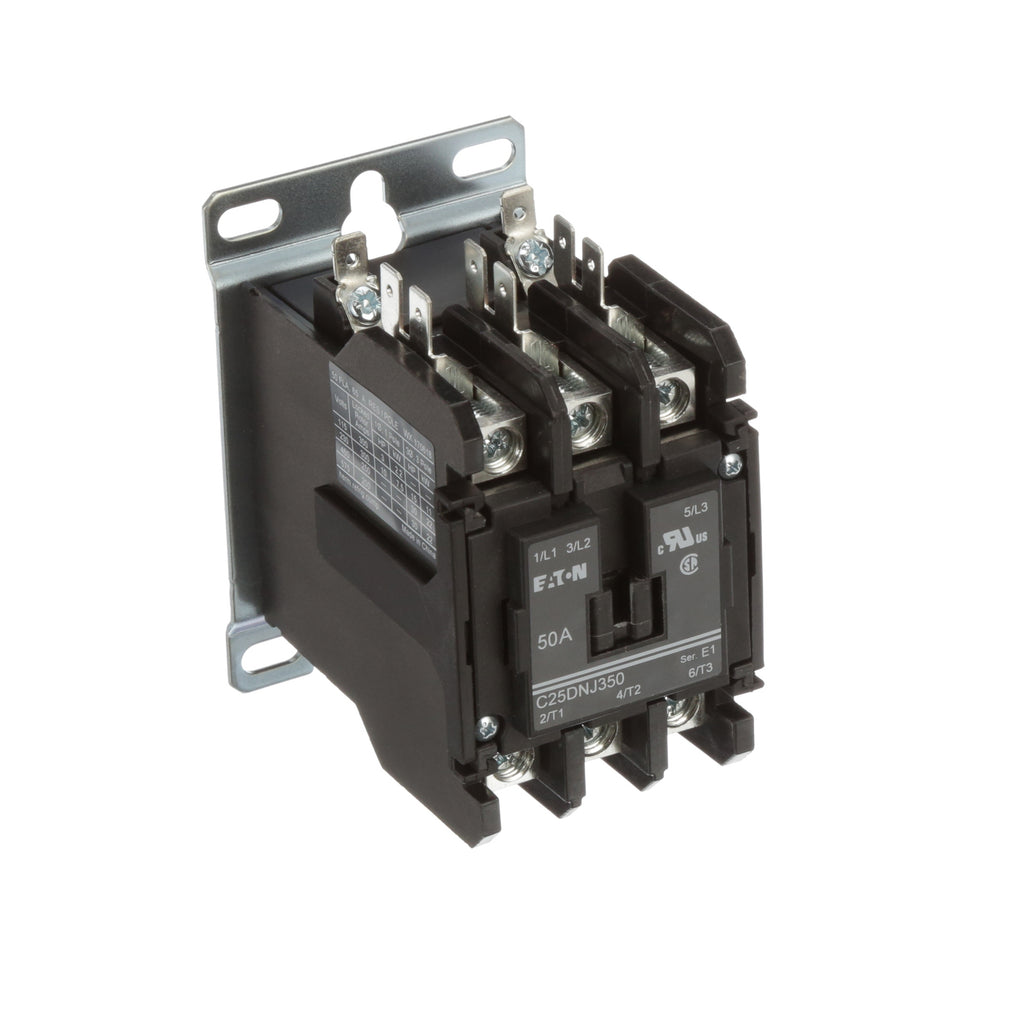

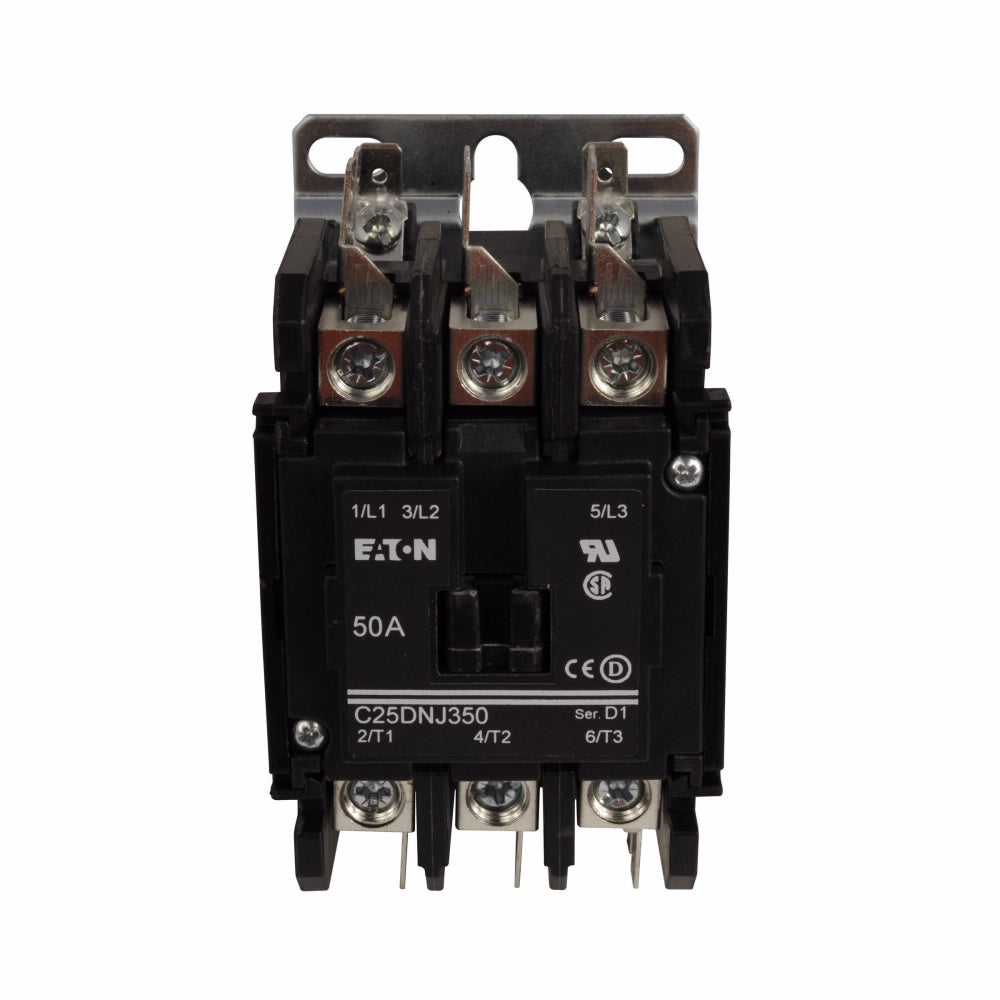

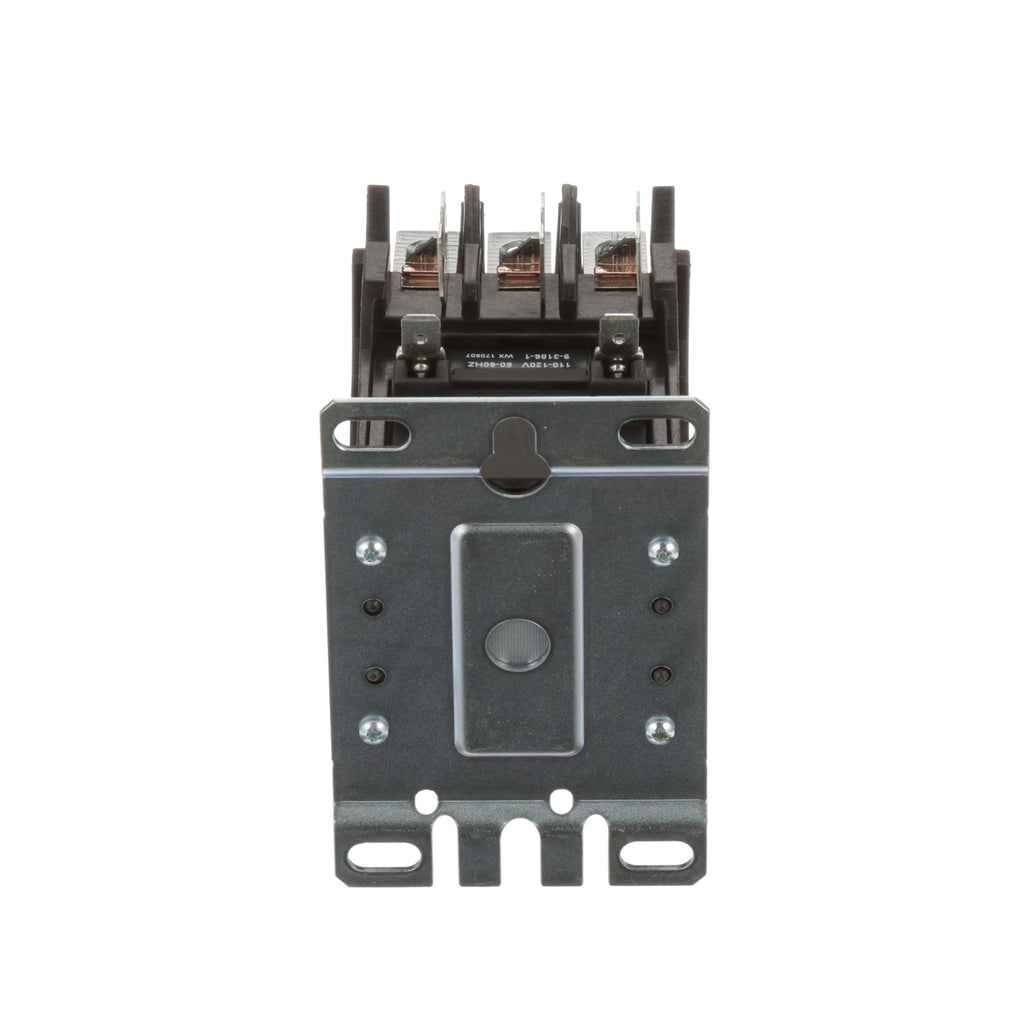

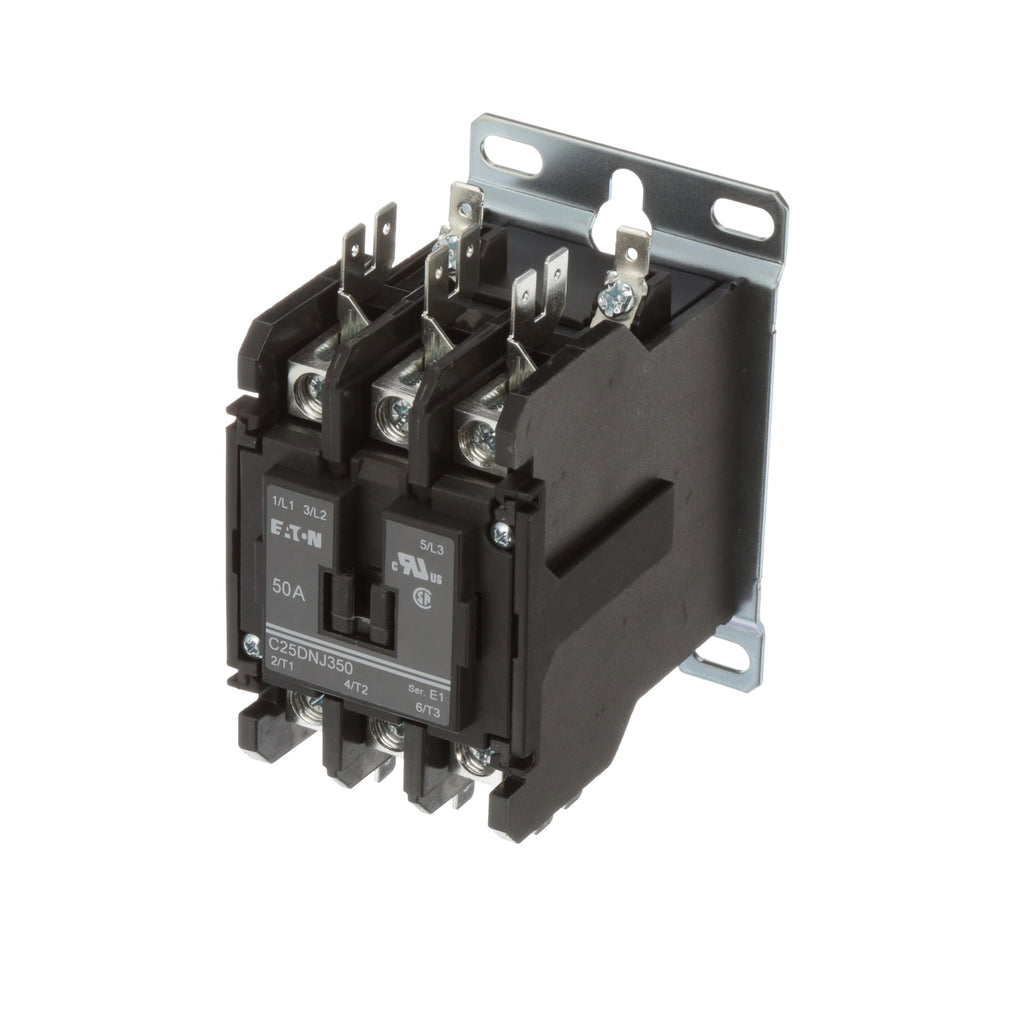

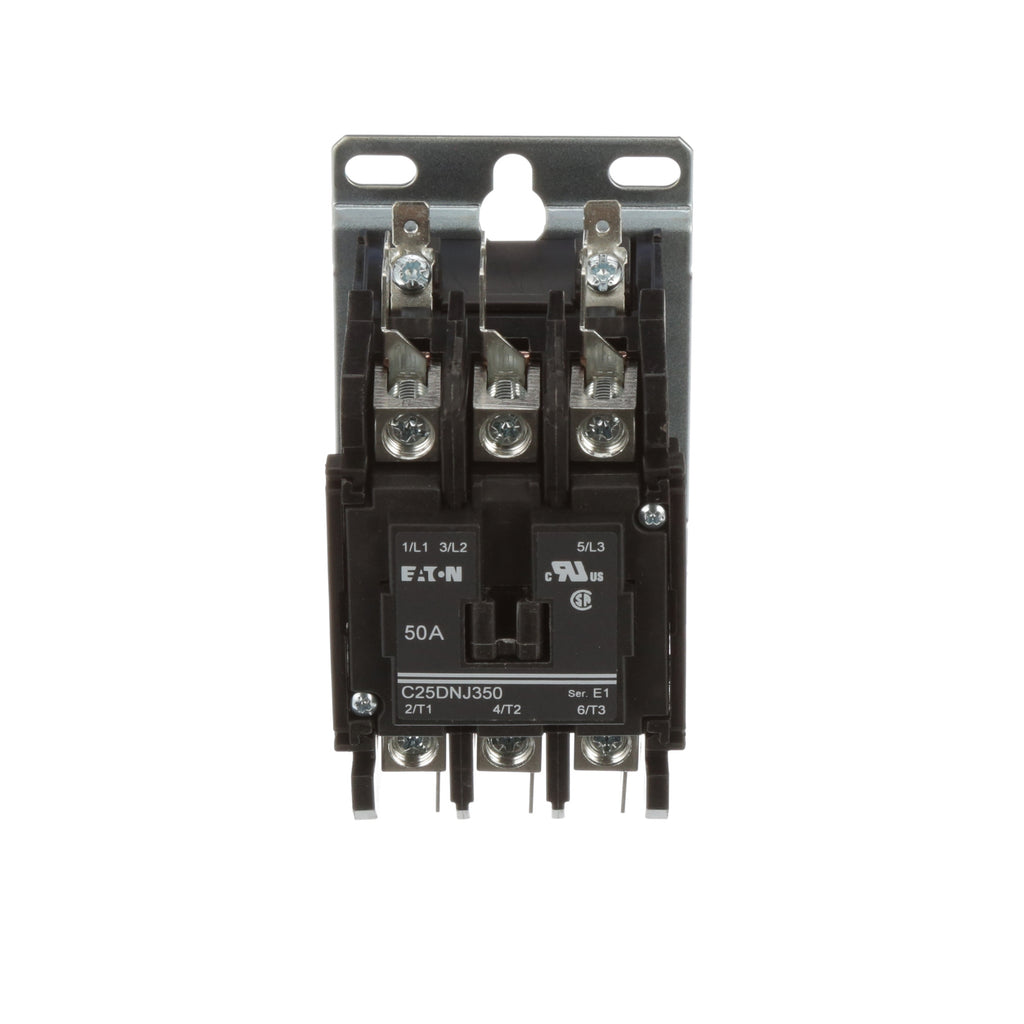

C25DNJ350A is a Cutler Hammer definite purpose contactor designed for motor control applications with a 50 amp rating and 3 poles.
This non-reversing contactor features a 110-120 Vac coil voltage at 50/60 Hz, an open enclosure with a metal mounting plate, and quick connect vertical in-line auxiliary contacts. It supports inductive full load currents up to 50 amps and is suitable for use in HVACR and other motor control systems. The contactor has box lug terminals with posidrive setscrews and is UL listed, CSA certified, CE marked, and RoHS compliant. It belongs to Eaton's E1 series and fits frame sizes from 15 to 50 amps for two- and three-pole configurations.
- Key Specifications
- Amperage: 50A inductive full load
- Voltage: 550-600 Vac operational range
- Coil Voltage: 110-120 Vac, 50/60 Hz
- Poles: 3-pole
- Mounting Type: Open frame with metal mounting plate
- Type: Non-reversing definite purpose contactor
- Terminals: Box lugs with posidrive setscrew
- Auxiliary Contacts: Quick connect vertical in-line
- Series/Frame: E1 series, 15-50A frame size
- Certifications: UL Listed (File E1491), CSA Certified, CE Marked, RoHS Compliant
- Dimensions: 3.75" height x 3.35" depth x 2.4" width
- Part Number: C25DNJ350A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Configuration : Non-Reversing
- Aux Contacts : 1 NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
- Coil Voltage Minimum : 110
- Frequency : 50 Hz
- UPC : 782116300723
- GTIN : 00661191798628
- Country of Origin : China
- Dimensions : 3.35 in x 3.75 in x 2.4 in (Length/Depth x Height x Width)
- Weight : 1.3 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA Certified UL Listed file E1491 (Guide Number NLDX2)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 550 VAC coil.
